| Audio: | Built-in microphone - HD-CVI only |
|---|---|
| Case: | Compact, Aluminium |
| Colour: | white |

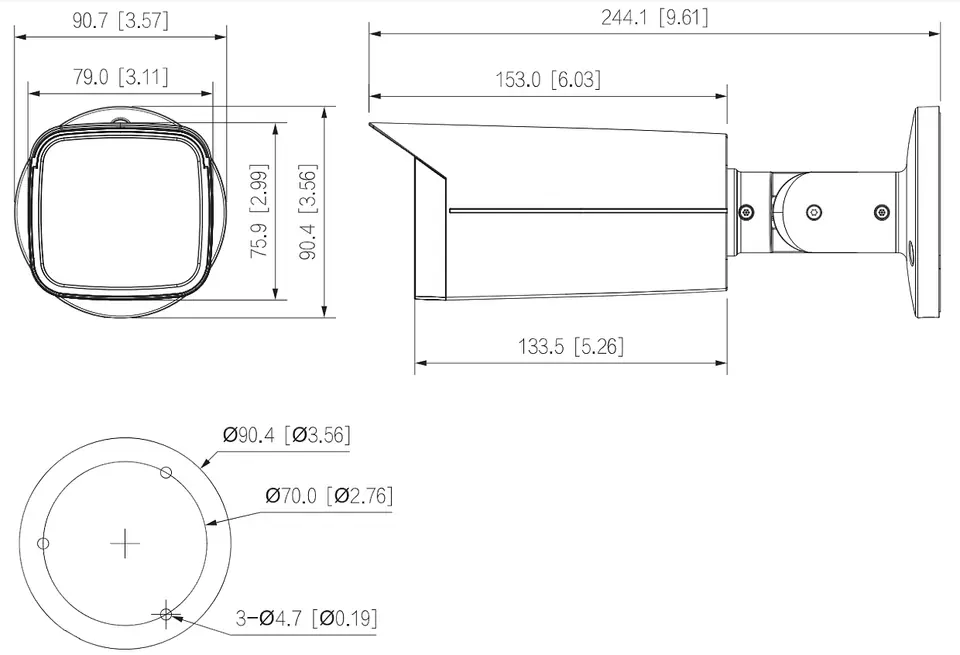

| Dimensions: | 244 x 90 x 90 mm |
| Ir illuminator power adjustment: | Automatic |
| Ir illuminator range: | 80 m |
| Objective: | 2.7 ... 13.5 mm - Motozoom |
| Operating temperature: | -30 °C ... 60 °C |
| Osd on-screen menu: | OSD menu available via DAHUA DVR |
| Power: | 12 V DC / 790 mA |
| Power consumption: | ≤ 9.4 watts |
| Producer / brand: | DAHUA |
| Resolution: | 1920 x 1080 - 1080p ,960 x 576 - 960H, PAL |
| S/n ratio (s/n): | > 65 dB |
| Scales: | 0.78 kg |
| Sealing: | IP67 |
| Selected features: | Lens: motozoom WDR - 130 dB - Wide dynamic range 3D-DNR - Digital image noise reduction BLC - backlight compensation (background) HLC - Strong (spot) light compensation ICR - Mechanical IR filter AGC - Automatic image gain adjustment Auto white balance Privacy zones - max. 8 Mirror - Sharpness Image Mirroring - Sharpening Image Outlines |
| Sensor size: | 2.1 MP |
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Transducer: | Progressive Scan CMOS |
| Video output: | AHD, HD-CVI, HD-TVI, CVBS - 1 Vpp / 75 Ω |
| Viewing angle: | 108 ° ... 30 ° |
| Warranty: | 3 years |

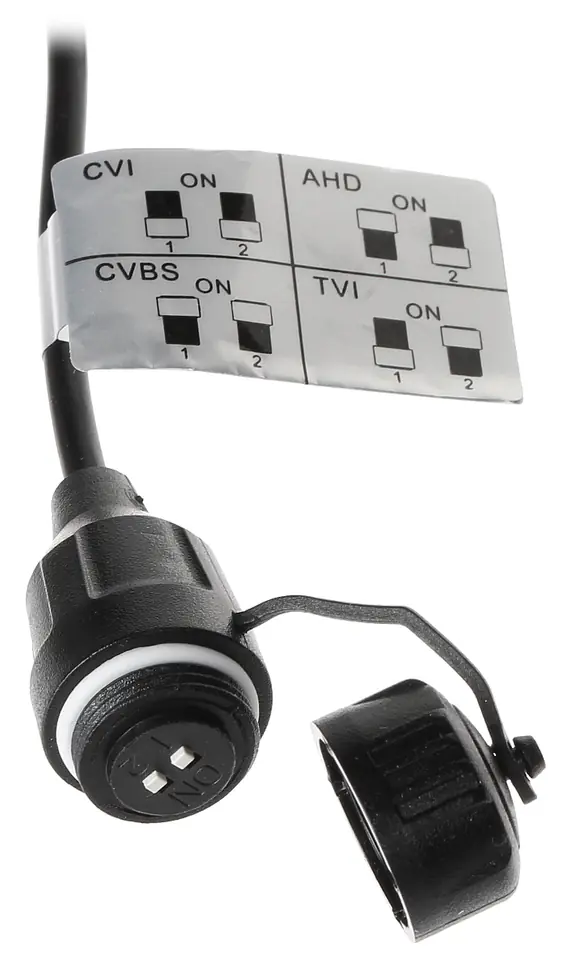

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interfaceThe standard is changed using configuration switches
The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved
Thanks to the "Starlight" technology, the camera needs very low light to obtain a clear color imageThe camera meets the IP67 protection class
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
