| Audio: | Built-in microphone - Coaxial cable audio support - HD-CVI only |
|---|---|
| Case: | Compact, Aluminium |
| Colour: | white |

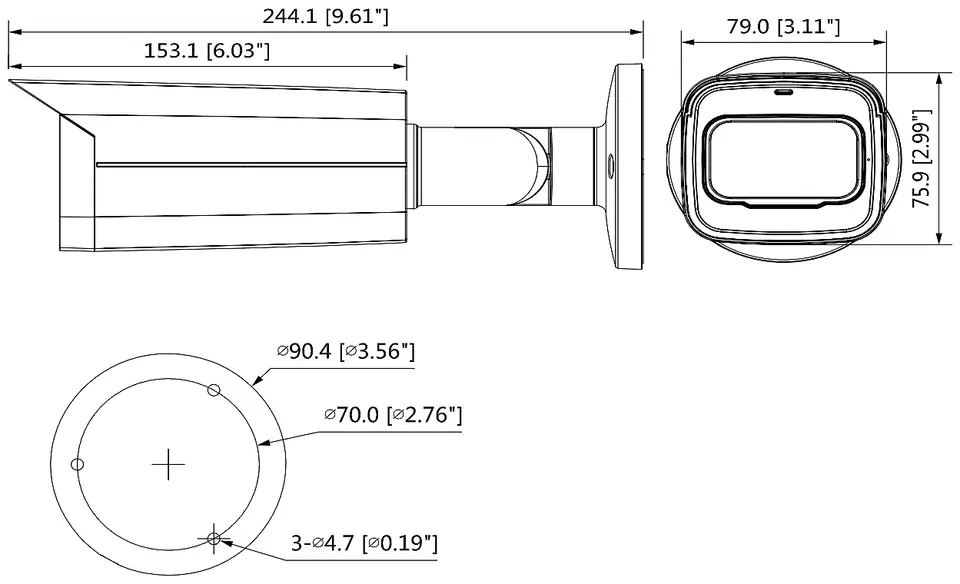

| Dimensions: | 245 x 90 x 90 mm |
| Ir illuminator power adjustment: | Automatic |
| Ir illuminator range: | 80 m |
| Objective: | 3.6 mm |
| Operating temperature: | -40 °C ... 60 °C |
| Power: | 12 V DC / 640 mA |
| Power consumption: | ≤ 7.7 watts |
| Producer / brand: | DAHUA |
| Resolution: | 1920 x 1080 - 1080p ,960 x 576 - 960H, PAL |
| S/n ratio (s/n): | > 65 dB |
| Scales: | 0.73 kg |
| Sealing: | IP67 |
| Selected features: | WDR - 130 dB - Wide dynamic range 3D-DNR - Digital image noise reduction BLC/HLC - Background light / strong light compensation ICR - Mechanical IR filter AGC - Automatic image gain adjustment Automatic white balance Privacy zones - max. 8 Mirror - Sharpness Image Mirroring - Sharpening Image Outlines |
| Sensor size: | 2.1 MP |
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Transducer: | « Progressive Scan CMOS |
| Video output: | AHD / HD-CVI / HD-TVI / PAL - 1 Vpp / 75 Ω |
| Viewing angle: | 86° (manufacturer data) 83° (our tests) |
| Warranty: | 3 years |

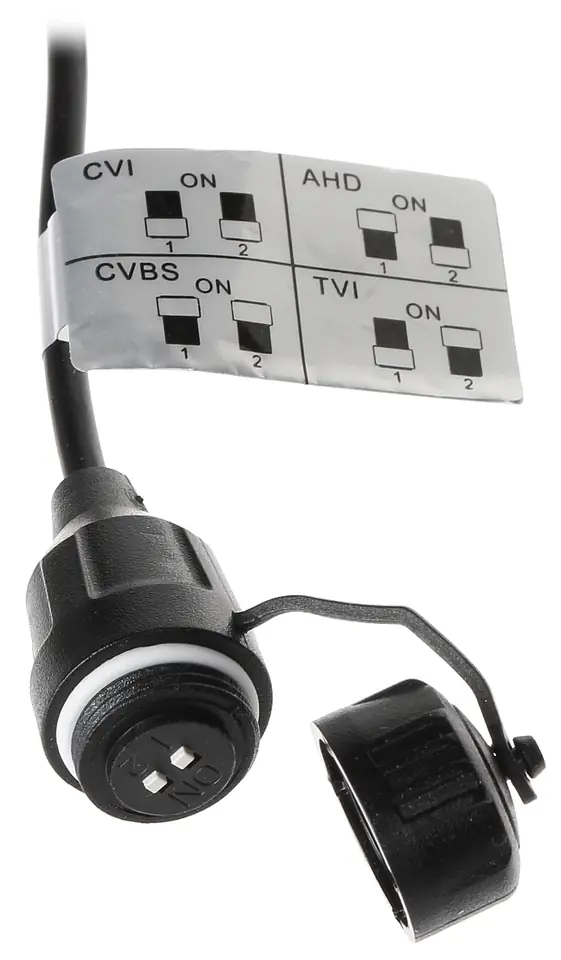

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interfaceThe standard is changed using configuration switches
Thanks to the "Starlight" technology, the camera only needs very low light to obtain a clear color image
The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved
The camera meets IP67 protection class
