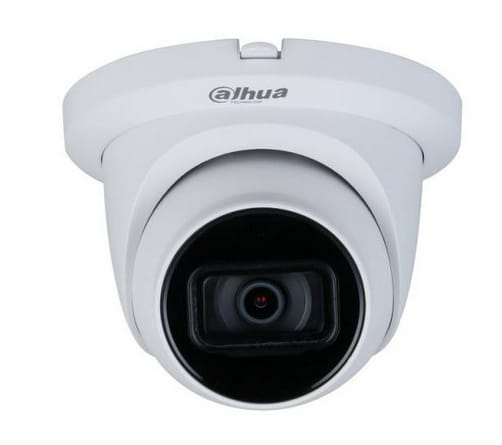

CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-HDW2241TMQ-A-0280B-S2-DIP - 1080p 2.8 mm DAHUA

This product is not available
Availability:
expected delivery
Brand:
Dahua
Product code:
HAC-HDW2241TMQ-A-0280B-S2-DIP / 6923172523112

Specification

Audio:Built-in microphone, Coaxial cable audio support - HD-CVI only
Case:Dome, Metal + Plastic
Colour:white

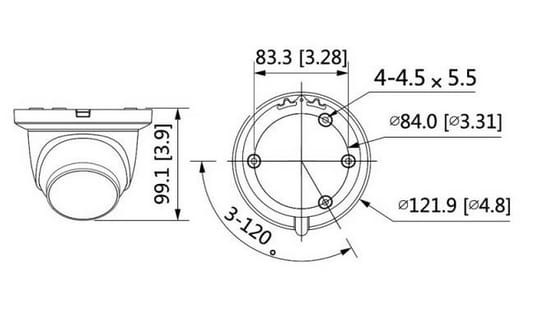

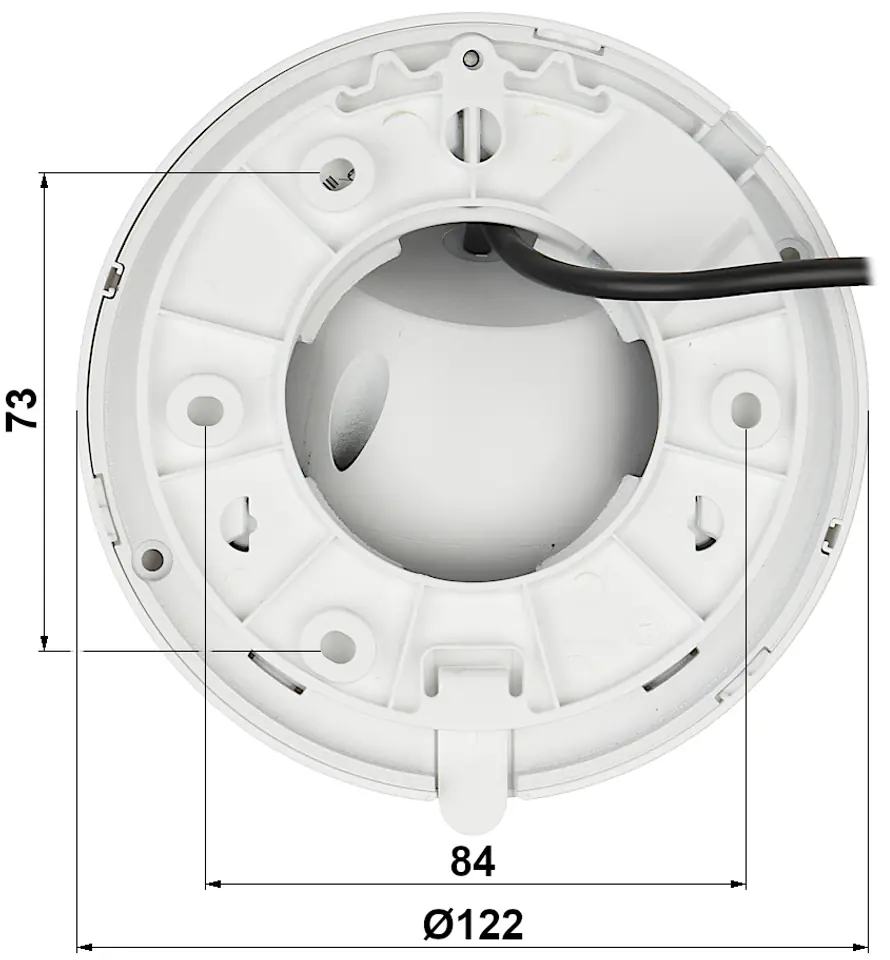

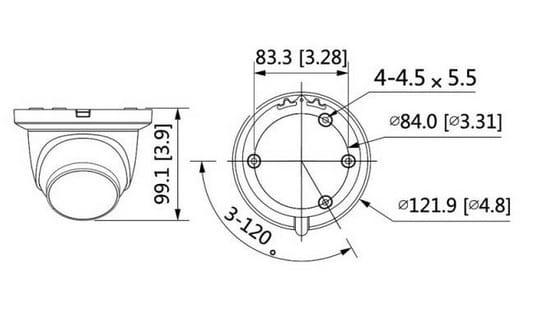

Dimensions:Ø 122 x 99 mm
Ir illuminator power adjustment:Automatic
Ir illuminator range:60 m
Objective:2.8 mm
Operating temperature:-40 °C ... 60 °C
Osd on-screen menu:OSD menu available via DAHUA DVR
Power:12 V DC / 425 mA
Power consumption:.max. 5.1 watts
Producer / brand:DAHUA
Resolution:1920 x 1080 - 1080p ,960 x 576 - 960H, PAL
Scales:0.41 kg
Sealing:IP67
Selected features:WDR - 130 dB - Wide dynamic range 3D-DNR - Digital image noise reduction BLC - configurable backlight compensation HLC - Strong (spot) light compensation ICR - Mechanical IR filter Day/night mode AGC - Automatic image gain adjustment Auto white balance Privacy zones - max. 8 Mirror - Sharpness Image Mirroring - Sharpening Image Outlines
Sensor size:2.1 MP
Standard:HD-CVI, HD-TVI, AHD, CVBS
Transducer:Progressive Scan CMOS
Video output:1 Vpp / 75 Ω : AHD / HD-CVI / HD-TVI / CVBS
Viewing angle:109° (manufacturer data) 104° (our tests)
Warranty:3 years

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and transformers matching impedance, one should take into account the possibility of signal reflections and penetration of signals among themselvesThe range of the illuminator given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)

The camera meets IP67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
