CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-HDW2241T-Z-A-27135-S2-DIP - 1080p 2.7 ... 13.5 mm - <strong>MOTOZOOM </strong>DAHUA

€108.22
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDW2241T-Z-A-27135-S2-DIP / 6923172523761

Specification

Audio:Built-in microphone - HD-CVI only

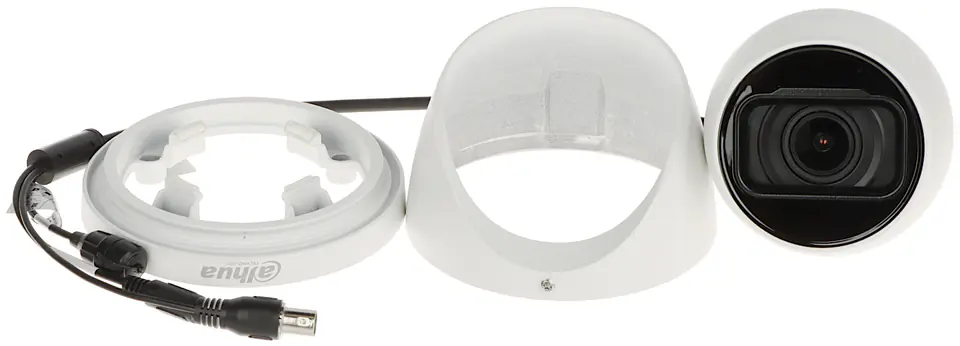

Case:Dome, Aluminum
Colour:white
Cooperation with ir illuminator:ICR - Mechanical IR filter

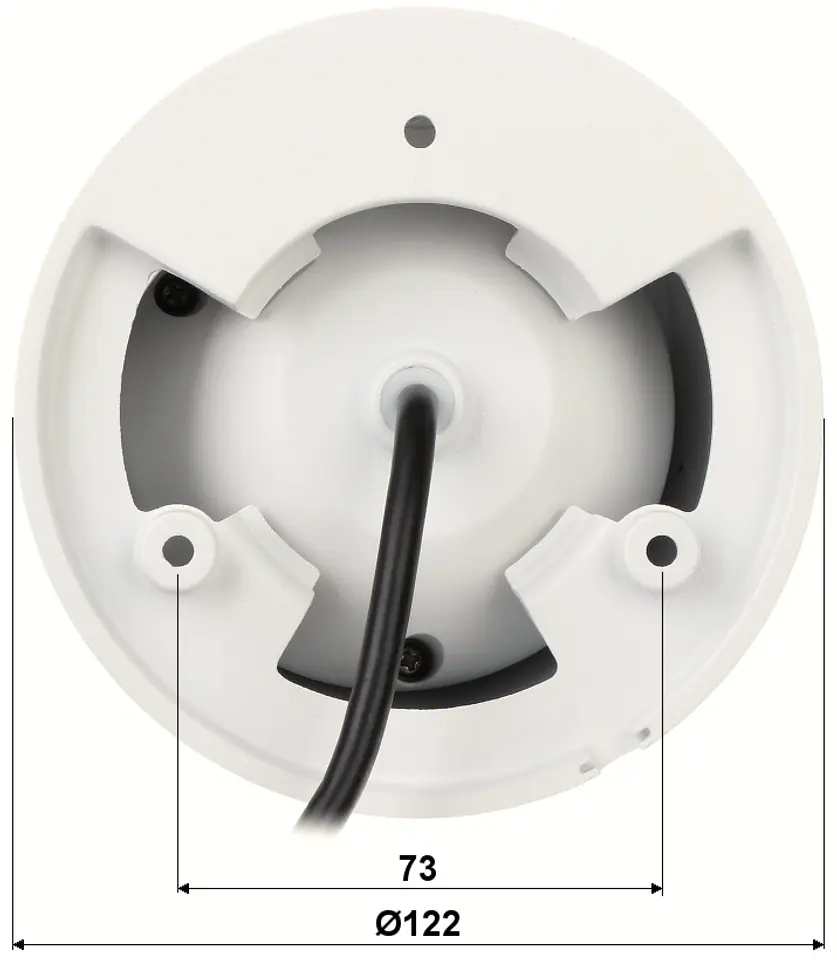

Dimensions:Ø 122 x 105 mm
Ir illuminator power adjustment:Automatic
Ir illuminator range:60 m
Objective:2.7  ... 13.5 mm - Motozoom
Operating temperature:-30 °C ... 60 °C
Osd on-screen menu:OSD menu available via DAHUA DVR
Power:12 V DC / 540 mA
Power consumption:≤ 6.4 watts
Producer / brand:DAHUA
Resolution:1920 x 1080 - 1080p960 x 576 - 960H, PAL
S/n ratio (s/n):> 65 dB
Scales:0.6 kg
Sealing:IP67
Selected features:Motozoom lens - Control possible only from Dahua DVRs in HD-CVI WDR mode - 130 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image BLC - backlight compensation (background) HLC - Strong light compensation (spot) Auto white balance AGC - Auto image gain adjustment ICR - Mechanical IR filter Mirror - Mirror image Sharpness - Sharpness image contours Privacy zones - max. 8
Sensor size:2.1 MP
Standard:AHD, HD-CVI, HD-TVI, PAL
Transducer:Progressive Scan CMOS
Video output:AHD / HD-CVI / HD-TVI / CVBS - 1 Vpp / 75 Ω
Viewing angle:108 ° ... 30 ° (manufacturer data) 102 ° ... 31° (our tests)
Warranty:3 years

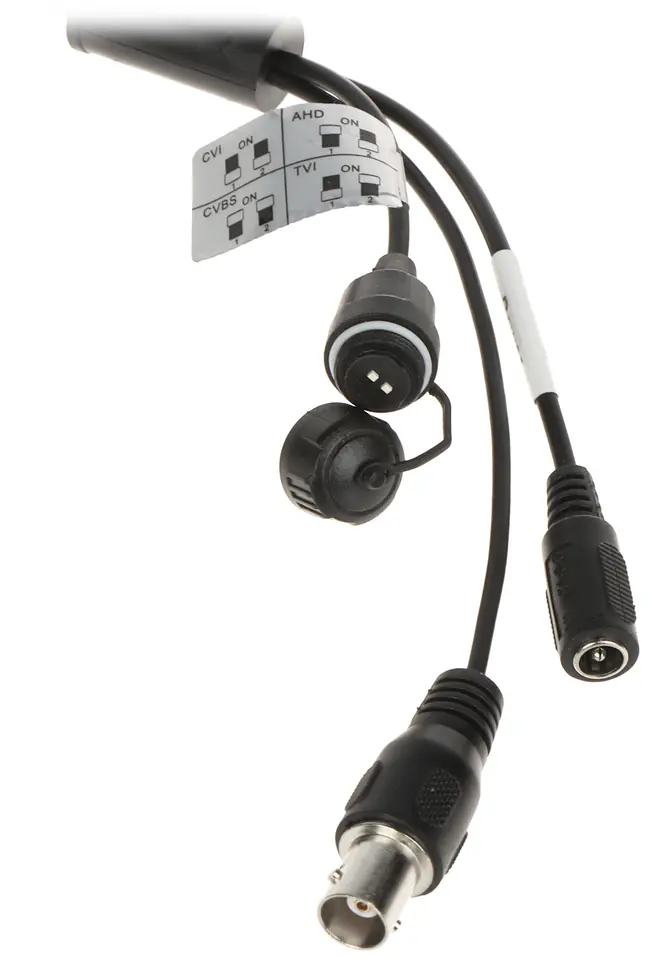

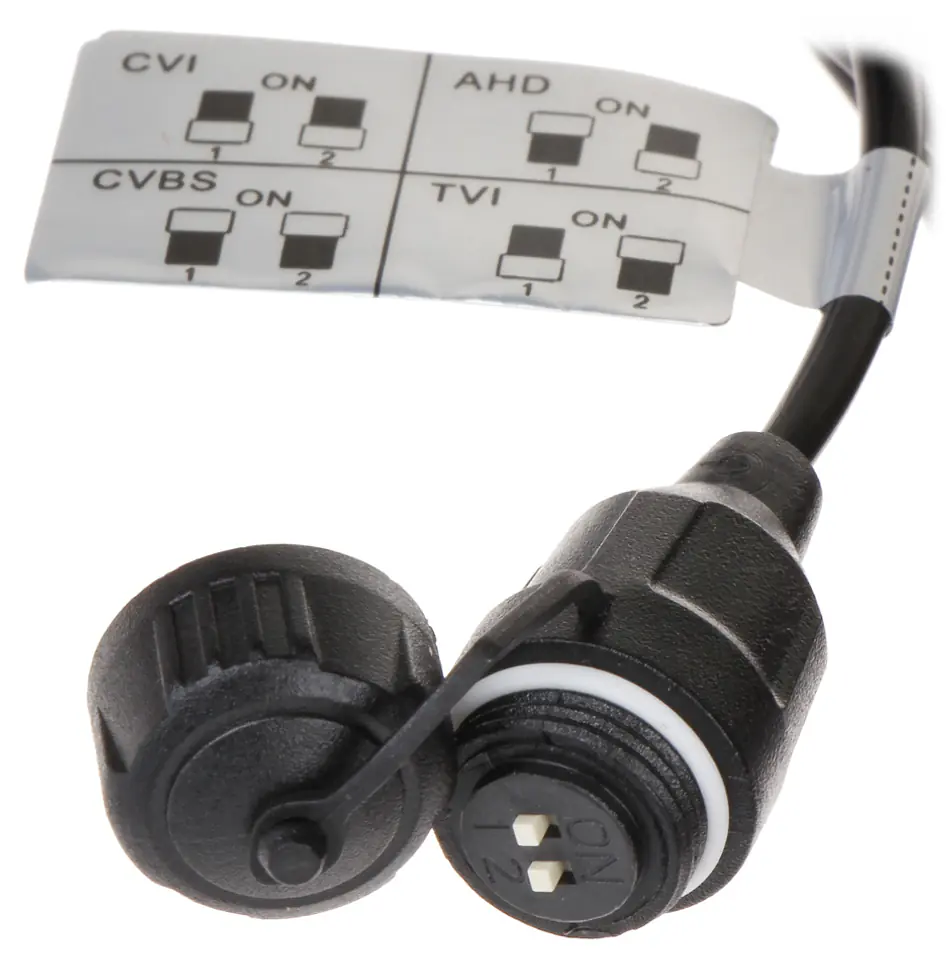

Megapixel camera with 1/2.8" CMOS sensor and AHD / HD-CVI / HD-TVI / PALU interface! The camera is set to HD-CV by defaultChanges to the standard are made using the configuration switches

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)Thanks to this, it is possible to transmit HD images over a distance of up to 500 m with low installation costsDuring transmission, there are no delays and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

Thanks to the "Starlight" technology used, the camera only needs very low light to obtain a clear color imageUsed motozoom lens with focal length of 2.7 ... 13.5 mm allows remote adjustment of the viewing angle

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
