CAMERA AHD, HD-CVI, HD-TVI, PAL APTI-H83C61-2812W - 8.3 Mpx, 4K UHD 2.8 ... 12 mm

€76.64
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
APTI
Product code:
APTI-H83C61-2812W / 5902887069857

Specification

Case:Compact - Metal
Colour:white

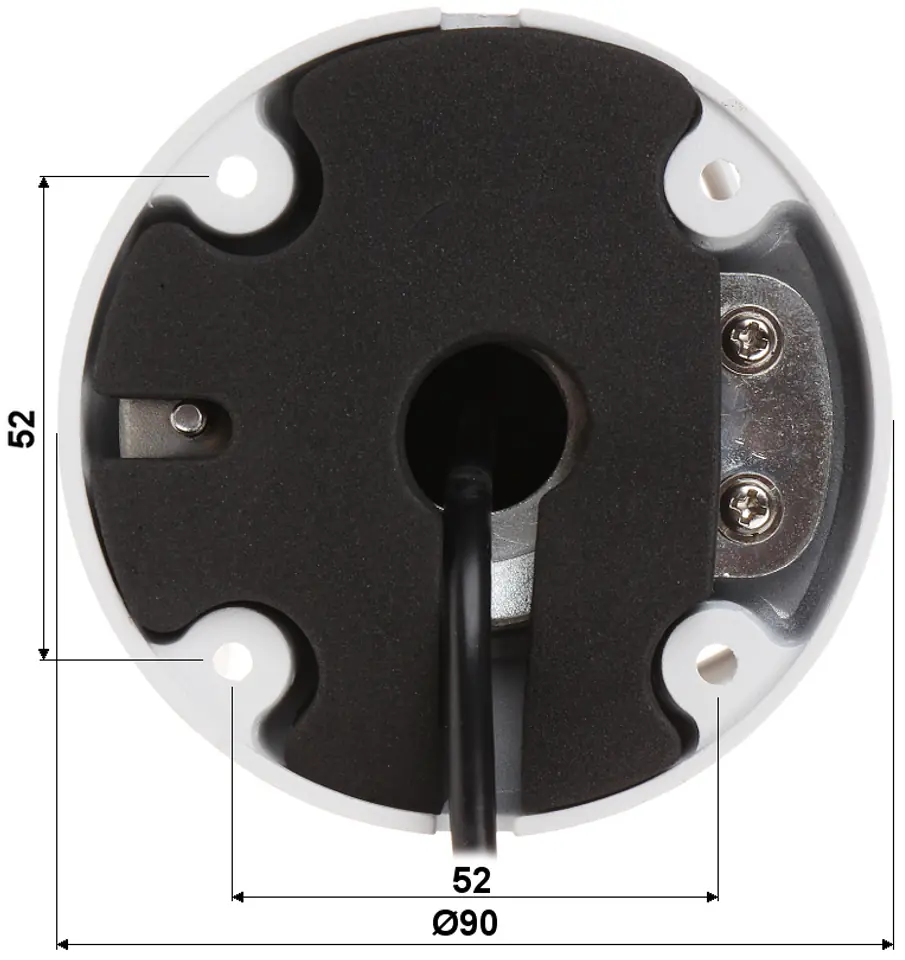

Dimensions:211 x 90 x 90 mm
Ir illuminator power adjustment:Automatic
Ir illuminator range:60 m
Objective:2.8  ... 12 mm
Operating temperature:-20 °C ... 50 °C
Power:12 V DC / 590 mA
Power consumption:≤ 7.1 watts
Producer / brand:APTI
Resolution:3840 x 2160 - 8.3 Mpx, 4K UHD @ AHD / HD-CVI / HD-TVI, 15 fps ,2592 x 1944 - 5 Mpx @ AHD / HD-TVI, 20 fps / 12.5 fps ,2592 x 1944 - 5 MP @ HD-CVI, 20 fps, 2560 x 1440 - 4 MP @ AHD / HD-TVI / HD-CVI, 25 fps / 30 fps ,1920 x 1080 - 1080p @ AHD / HD-TVI / HD-CVI, 25 fps / 30 fps, 960 x 576 - 960H @ CVBS
S/n ratio (s/n):> 50 dB
Scales:0.66 kg
Sealing:IP67
Selected features:WDR - 3D-DNR Wide Dynamic Range - Digital Image Noise Reduction BLC - Back (Background) Light Compensation ICR - Mechanical IR Filter AGC - Automatic image gain adjustment Auto white balance Day/night mode - customizable Sharpness - Sharpness
Sensor size:8.3 MP
Standard:AHD, HD-CVI, HD-TVI, CVBS
Supported languages:English
Transducer:1/2.8" SONY Starvis™ Back-illuminated CMOS
Video output:1 Vpp 75 Ω, AHD / HD-CVI / HD-TVI / CVBS - Via OSD, selectable by switch
Viewing angle:87 ° ... 24 ° (manufacturer's data) 84 ° ... 33° (our tests)
Warranty:2 years

Megapixel camera with 1/2.8" Sony CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K)There are no delays during transmission and the original, high image quality is maintained

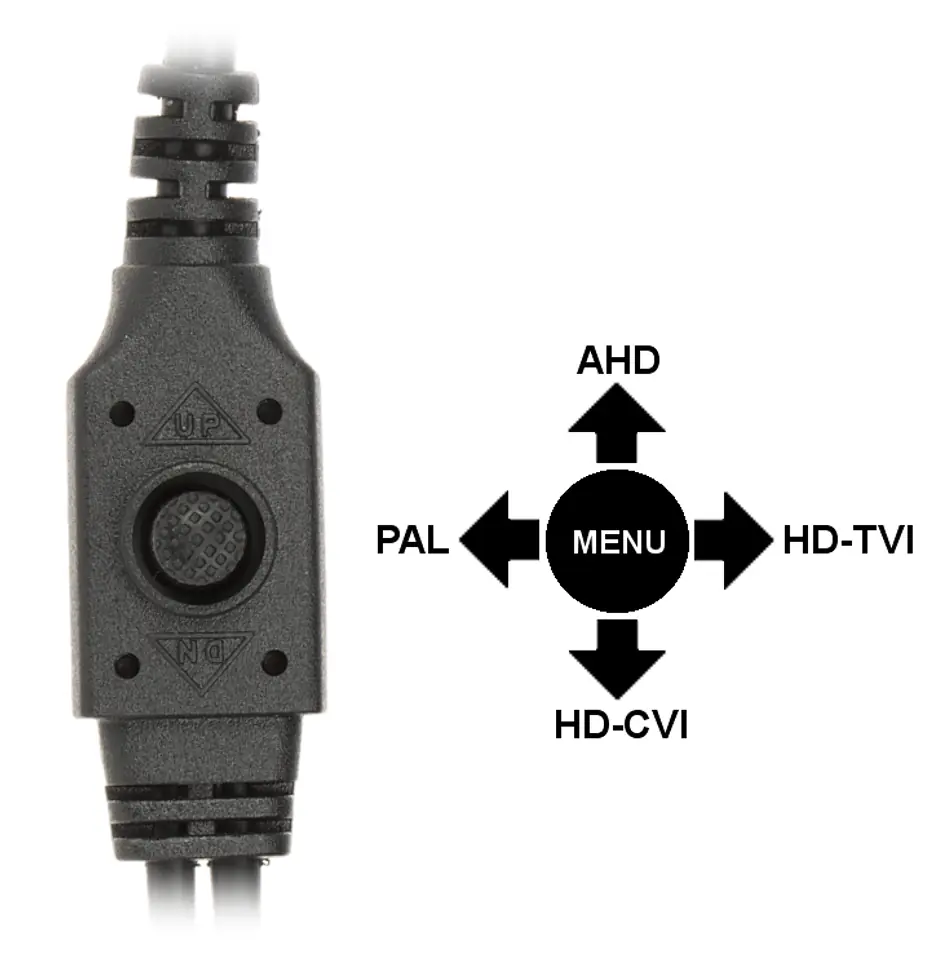

Setting the camera in PAL mode allows to obtain images at a resolution of 960HWthe selection of signal format is made by tilting the joystick and holding it for 5 s without entering the OSD menu. Changing the signal format to NTSC in the camera causes image loss in the connected AHD/HD-CVI/HD-TVI recorder

The range of the illuminator given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)The camera meets IP67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
