Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface
The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved
In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

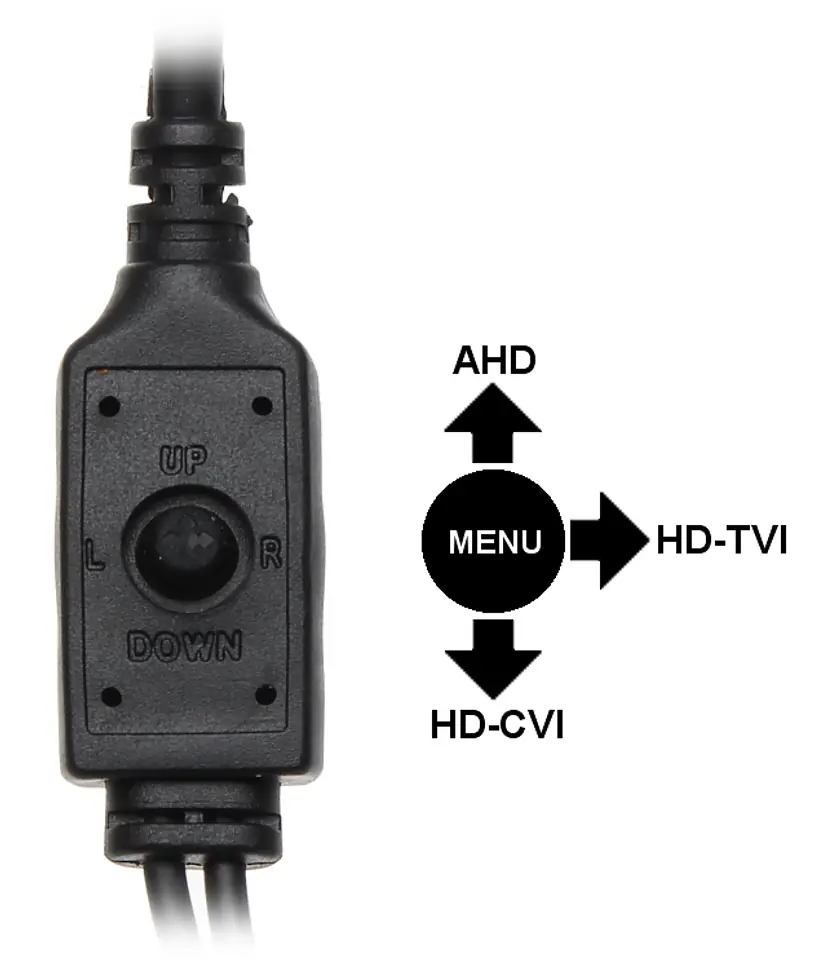

Setting the camera in PAL mode allows to obtain images at a resolution of 960HWthe selection of signal format is made by tilting the joystick and holding it for 5 s without entering the OSD menu. Changing the signal format to NTSC in the camera causes image loss in the connected AHD/HD-CVI/HD-TVI recorder
The range of the illuminator given by the manufacturer depends on the environmental conditions (transparency of air, environment, color of walls, i.e. the so-called scene reflectance)The camera meets IP66 protection class
Remark! The camera is pre-set in 2 Mpx (1080p) resolution
