CAMERA AHD, HD-CVI, HD-TVI, CVBS HAC-ME1509TH-A-PV-0360B-S2 TiOC - 5 Mpx 3.6 mm DAHUA

€98.67
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-ME1509TH-A-PV-0360B-S2 / 6923172540935

Specification

4g lte:N
Adjustment shutter speed:Auto/Manual
Alarm inputs / outputs:0 / 1
Alarm output channels:1
Aperture type:Permanent
Audio:Built-in microphone Coaxial Cable Audio Support - HD-CVI Only Built-in Speaker / Alarm Siren 5 voice prompts
Bluetooth:No
Bnc output ports:1
Built-in loudspeaker:Yes
Built-in microphone:Yes
Camera shutter speed:1/25 - 1/100000 s
Case:Compact, Plastic + Metal
Closest focusing distance:1.9 m
Colour:White + Black
Connectivity technology:Wired
Dc output voltage:12

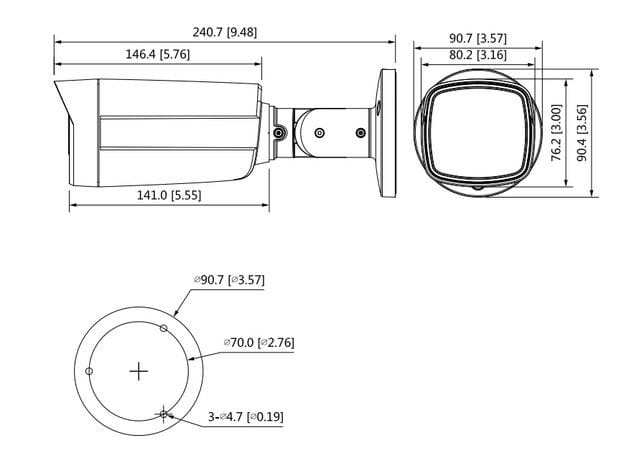

Depth:240.7 mm
Diagonal angle of view (max):112°
Digital zoom:4x

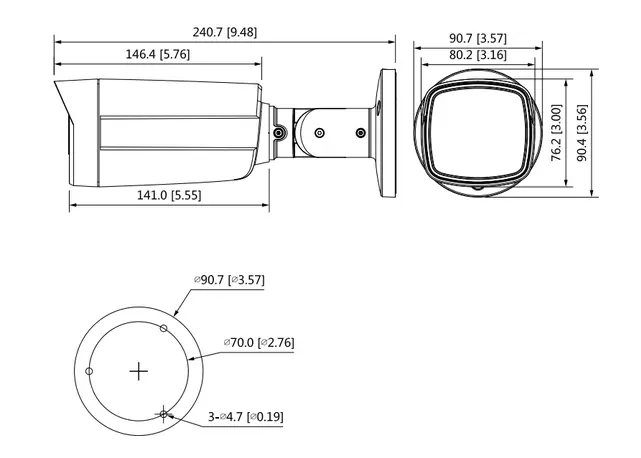

Dimensions:241 x 91 x 91 mm
Ethernet interface type:10 Megabit Ethernet, 100 Megabit Ethernet
Focal length range:3.6 mm
Form factor:Tube/dome
Frame rate:20 fps
Height:90.7 mm
Horizontal rotation angle:0 - 360°
Housing material:Metal, Plastic
International protection (ip) code:IP67
Ir illuminator range:40 m
Led type:White light LED
Lens type:Fixed focal length lens
Lens viewing angle, horizontal:83°
Lens viewing angle, vertical:60°
Maximum aperture number:1.2
Maximum resolution:2592 x 1944 pixels
Minimum illumination:0.005 lx
Motion detection:Yes

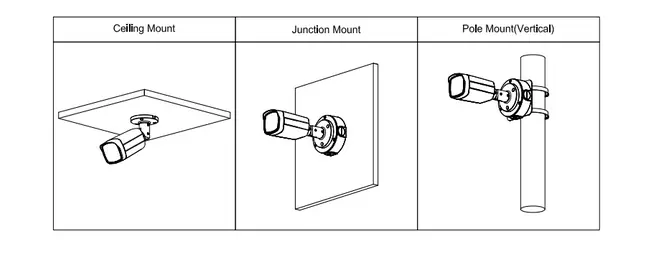

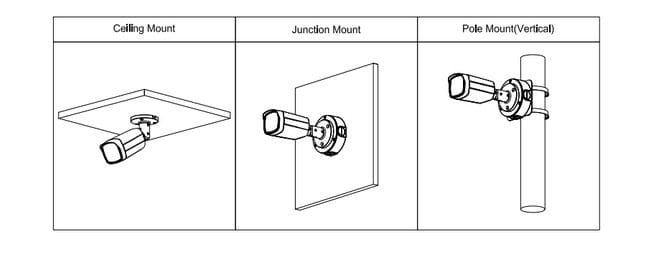

Mounting type:Wall/ceiling
Night vision:Yes
Night vision distance:40 m
Number of cameras:1
Number of illumination leds:2
Number of lenses:1
Number of sensors:1
Objective:3.6 mm
Operating relative humidity (h-h):0 - 95%
Operating temperature:-40 °C ... 60 °C
Operating temperature (t-t):-40 - 60 °C
Optical sensor size:25.4 / 2.7 mm (1 / 2.7")
Osd on-screen menu:OSD menu available via DAHUA DVR
People detection:Yes
Placement supported:Outdoor
Power:12 V DC / 870 mA
Power consumption:≤ 10.5 watts
Power source type:DC
Producer / brand:DAHUA
Product colour:White
Progressive scan:Yes
Range of white light illuminator (led):40 m
Resolution:2880 x 1620 - 5 Mpx @ HD-CVI @ 25 fps - Image format 16 : 9, 2560 x 1440 - 3.7 Mpx @ AHD / HD-CVI / HD-TVI @ 25 fps, 1920 x 1080 - 1080p @ HD-CVI @ 25 fps, 960 x 576 - 960H @ PAL
Scales:0.48 kg
Sealing:IP67
Selected features:Active deterrent function : Flashing alternate LEDs: red and blue - frequency configuration, Siren sound - 3 volume levels Possibility to turn off the WDR LED illuminator - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image F-DNR (Defog) - Noise reduction associated with precipitation D-ZOOM - Digital zoom : 4x BLC/HLC - Background light / strong light compensation AGC - Automatic adjustment of image gain Automatic White Balance Mirror - Image Mirroring Privacy Zones Sharpness - Sharpening Image Outlines
Sensor size:5 MP
Sensor type:CMOS
Signal-to-noise ratio (snr):65 dB
Standard:AHD, HD-CVI, HD-TVI, CVBS
Storage temperature (t-t):-40 - 60 °C
Total megapixels:5 MP
Transducer:1/2.7" Progressive Scan CMOS
Type:HDCVI security camera
Vertical rotation angle:0 - 90°
Video compression formats:H.264H, M-JPEG, H.265, H.265+, H.264B, H.264, H.264+
Video output:AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Video streaming:Yes
Viewing angle:89° (manufacturer data) 84° (our tests)
Warranty:3 years
Weight:440 g
Wi-fi:No
Wide dynamic range (wdr):DWDR
Width:90.7 mm

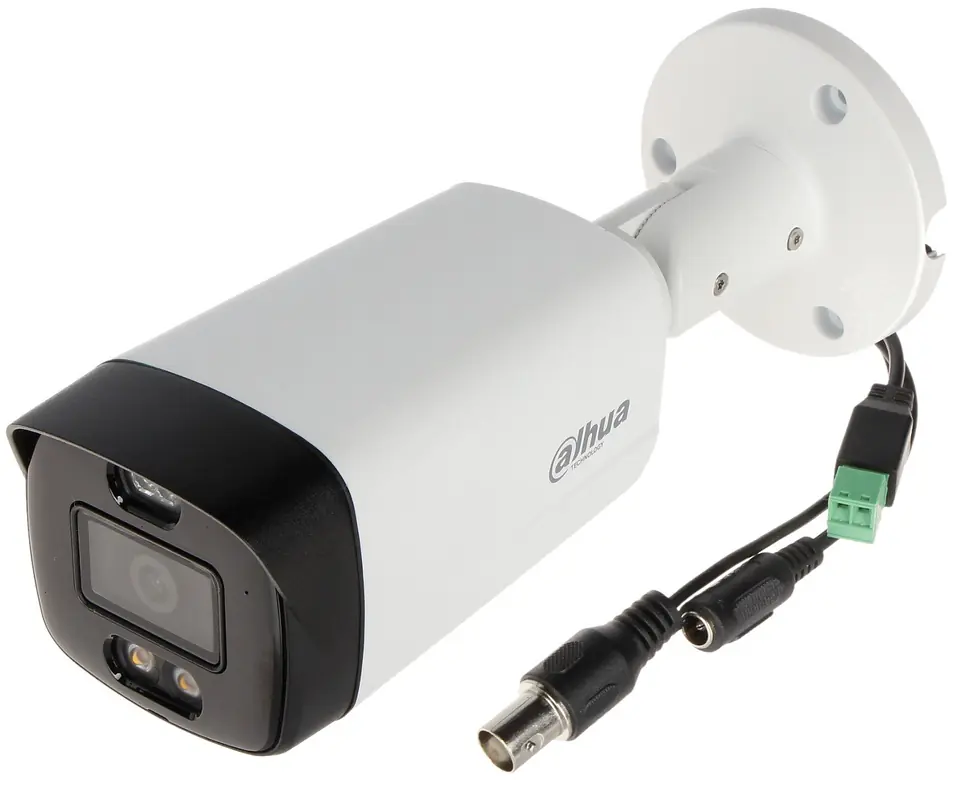

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

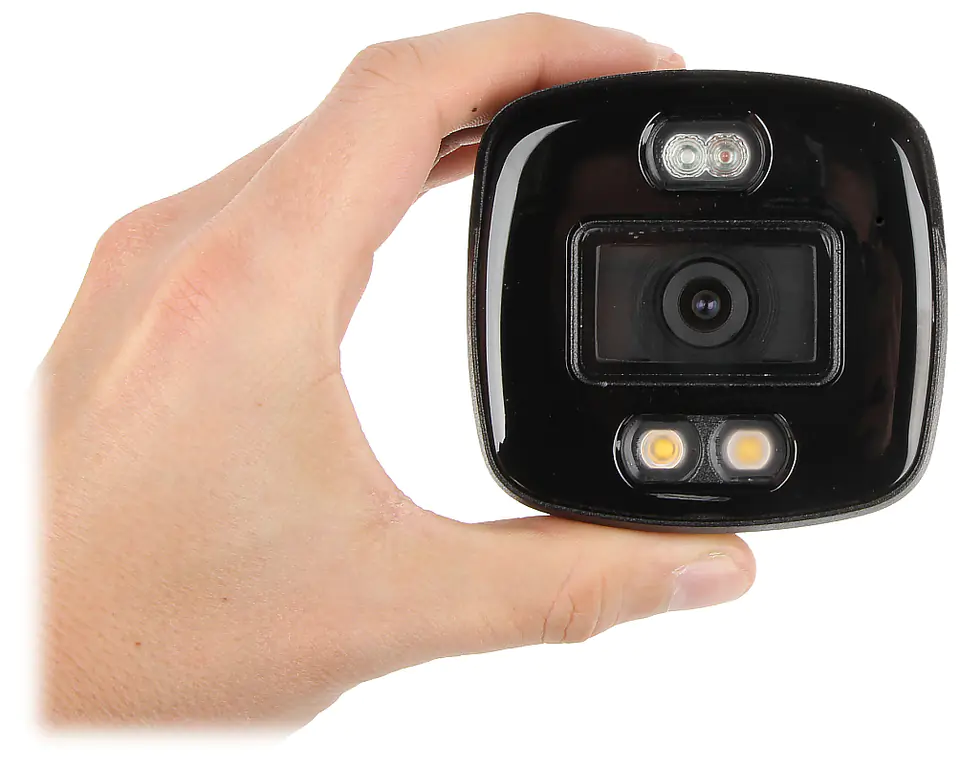

The device is equipped with Smart Dual Illumination technology, thanks to which the user has a choice of white light mode and IR (infrared) modeWhen Smart Dual Illumination is active, the white light will turn on automatically only when the object is detected in the monitored area, which effectively improves image quality

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

The camera meets IP67 protection class

In addition, the camera has the function of active deterrence of intruders using flashing red and blue lights and the sound of a siren
