CAMERA AHD, HD-CVI, HD-TVI, CVBS HAC-HFW1509TLM-IL-A-0360B-S2 WizSense - 5 Mpx 3.6 mm DAHUA

€76.38
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HFW1509TLM-IL-A-0360B-S2 / 6923172540621

Specification

Audio:Built-in microphone, Coaxial cable audio support - HD-CVI only
Case:Compact, Plastic + Metal
Colour:White + Black

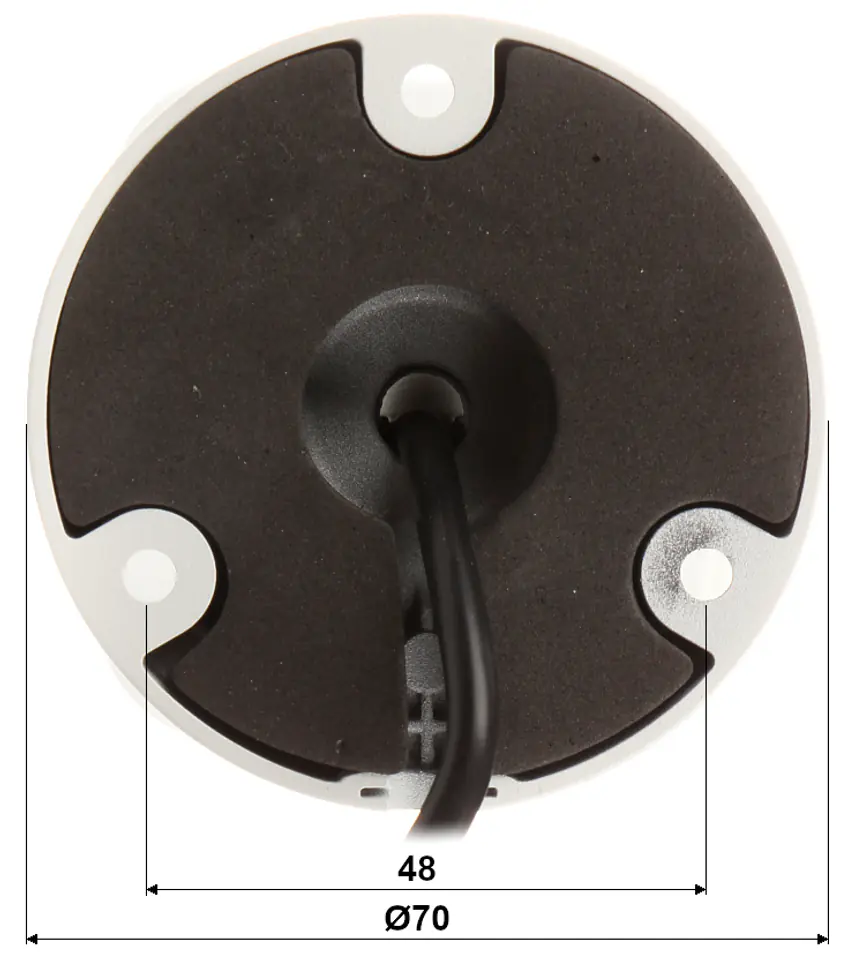

Dimensions:198 x 80 x 76 mm
Ir illuminator range:40 m
Objective:3.6 mm
Operating temperature:-40 °C ... 60 °C
Osd on-screen menu:OSD menu available via DAHUA DVR
Power:12 V DC / 420 mA
Power consumption:≤ 5.7 watts
Producer / brand:DAHUA
Range of white light illuminator (led):40 m
Resolution:2880 x 1620 - 5 Mpx @ AHD / HD-CVI / HD-TVI @ 20 fps - Aspect ratio 16 : 9, 2560 x 1440 - 4 Mpx @ AHD / HD-CVI / HD-TVI @ 25 fps, 1920 x 1080 - 1080p @ HD-CVI @ 25 fps, 960 x 576 - 960H @ PAL
Scales:0.34 kg
Sealing:IP67
Selected features:Possibility to turn off the LED illuminator WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image F-DNR (Defog) - Reduction of noise related to precipitation BLC/HLC - Compensation of background light / strong light AGC - Automatic adjustment of image gain Auto white balance 4x D-ZOOM - Digital zoom Privacy zones - max. 8 Mirror - Sharpness Image Mirroring - Sharpening Image Outlines
Sensor size:5 MP
Standard:AHD, HD-CVI, HD-TVI, CVBS
Transducer:1/2.7" Progressive Scan CMOS
Video output:AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle:89° (manufacturer data) 85° (our tests)
Warranty:3 years

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

The camera meets IP67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
