CAMERA AHD, HD-CVI, HD-TVI, CVBS HAC-HDW1809T-A-LED-0280B Full-Color - 8.3 Mpx 2.8 mm DAHUA

€93.68
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDW1809T-A-LED-0280B / 6923172534170

Specification

Audio:Built-in microphone Coaxial cable audio support - HD-CVI only
Case:Dome, Metal
Colour:white

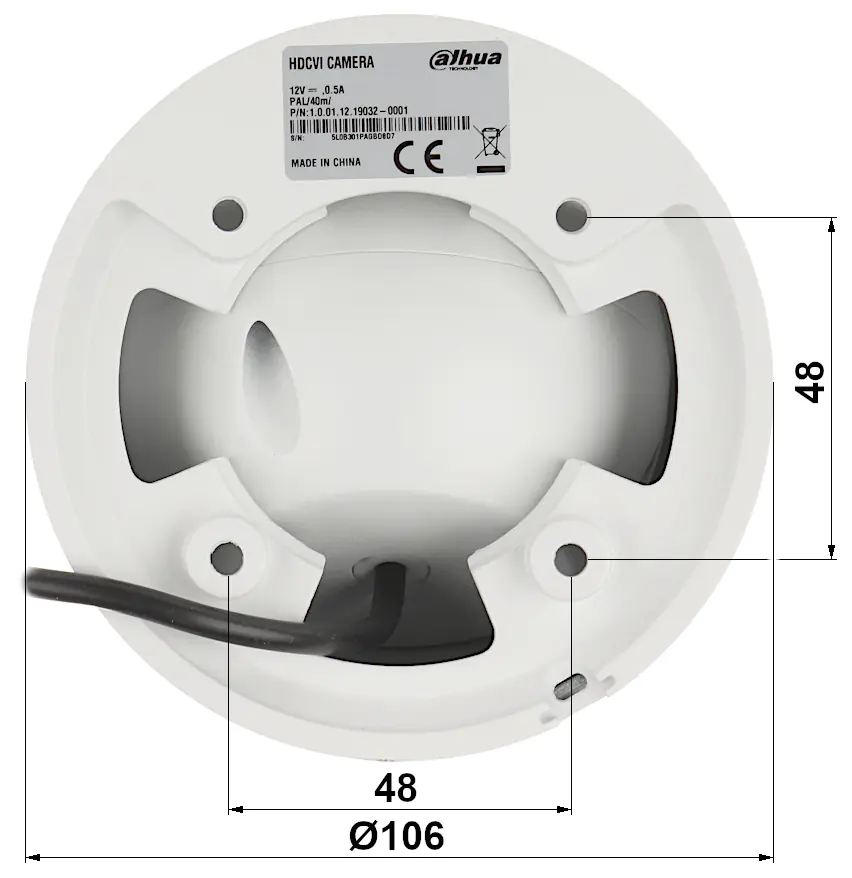

Dimensions:Ø 106 x 94 mm
Objective:2.8 mm
Operating temperature:-40 °C ... 60 °C
Osd on-screen menu:OSD menu available via DAHUA DVR
Power:12 V DC / 570 mA
Power consumption:≤ 6.9 watts
Producer / brand:DAHUA
Range of white light illuminator (led):40 m
Resolution:3840 x 2160 - 8.3 Mpx @ AHD / HD-CVI / HD-TVI @ 15 fps, 2880 x 1620 - 5 Mpx @ HD-CVI @ 25 fps, 2560 x 1440 - 4 Mpx @ HD-CVI @ 25 fps, 960 x 576 - 960H @ PAL
Scales:0.49 kg
Sealing:IP67
Selected features:Possibility to turn off the LED illuminator WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital image noise reduction F-DNR (Defog) - Reduction of noise related to precipitation BLC/HLC - compensation of background light / strong light D-ZOOM - Digital zoom : x4 Auto white balance AGC - Automatic image gain adjustment Mirror - Mirror image Privacy zones - max. 8 Sharpness - Sharpening image outlines
Sensor size:8.3 MP, 4K UHD
Standard:AHD, HD-CVI, HD-TVI, CVBS
Transducer:Progressive Scan CMOS
Video output:AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle:106°(manufacturer's data) 101° (our tests)
Warranty:3 years

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

The camera meets IP67 protection class

Remark! The Full-color series camera does not have a B/W modeThanks to the camera's very sensitive sensor and LED illuminator emitting visible light in white, the device allows to obtain a clear, colorful image in all lighting conditionsThanks to the "Starlight" technology, very low light is enough for the camera to obtain a clear color image

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
