CAMERA AHD, HD-CVI, HD-TVI, CVBS HAC-HDW1509T-IL-A-0280B-S2 - 5 Mpx 2.8 mm DAHUA

Name: CAMERA AHD, HD-CVI, HD-TVI, CVBS HAC-HDW1509T-IL-A-0280B-S2 - 5 Mpx 2.8 mm DAHUA
Brand: Dahua
SKU: 921833
Price: 82.46 EUR
Availability: InStock

€82.46

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Dahua
Product code:: HAC-HDW1509T-IL-A-0280B-S2 / 6923172540553

Specification

Ac input voltage:	12 V
Analog signal format system:	NTSC, PAL
Angle of rotation:	360°
Audio:	Built-in microphone Coaxial cable audio support - HD-CVI only
Audio input channels:	1 channels
Back light compensation (blc):	Yes
Bluetooth:	No
Bnc output ports:	1
Built-in hdd:	No
Built-in light:	Yes
Built-in microphone:	Yes
Camera pan control:	Yes
Camera shutter speed:	1/3 s–1/100000 s
Camera shutter type:	Electronic
Camera tilt control:	Yes
Case:	Dome, Metal
Colour:	white
Connectivity technology:	Wired
Day/night mode:	Yes
Dc output voltage:	12
Detect distance:	78 m
Diameter:	10.6 cm
Digital zoom:	4x

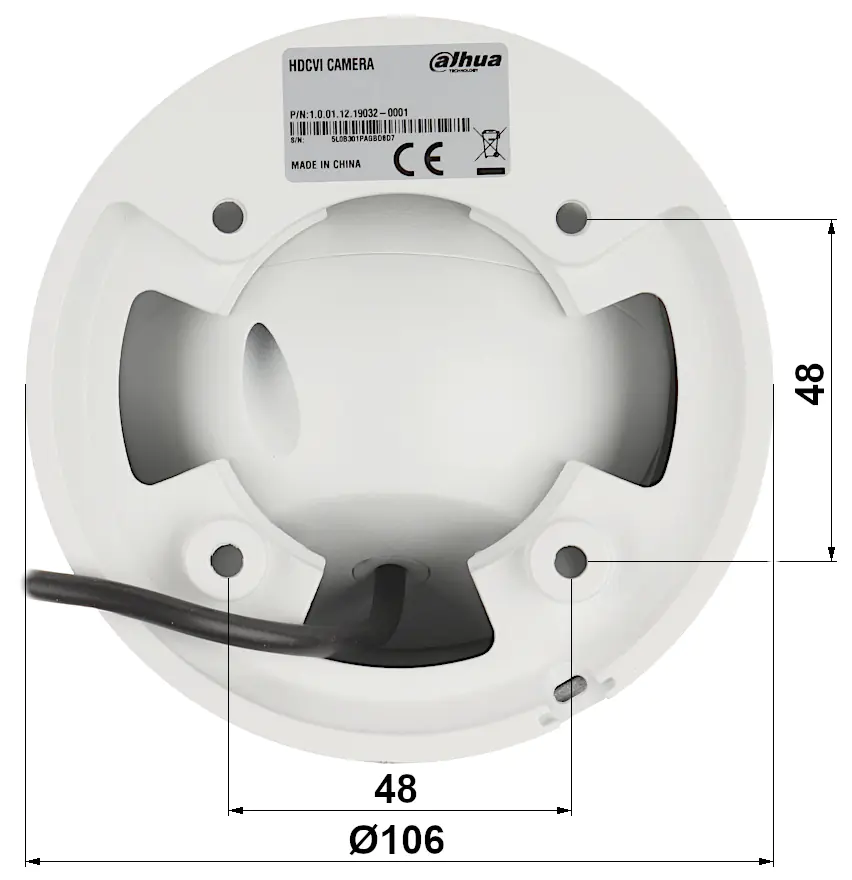

Dimensions:	Ø 106 x 94 mm
Dynamic range:	120 dB
Ethernet lan:	No
Field of view (fov) angle:	131°
Fire detection:	Yes
Fixed focal length:	3.6 mm
Form factor:	Spherical
Frame rate:	30 fps
Gain control type:	Auto/Manual
Height:	93.6 mm
Highlight compensation (hlc):	Yes
Housing material:	Metal
Identify distance:	7.8 m
International protection (ip) code:	IP67
Ir illuminator range:	40 m
Led type:	IR
Lens viewing angle, diagonal:	131°
Lens viewing angle, horizontal:	111°
Lens viewing angle, vertical:	57°
Maximum aperture number:	1
Maximum resolution:	2880 x 1620 pixels
Minimum illumination:	0.0001 lx
Mirror:	Yes
Mounting type:	Ceiling
Night vision:	Yes
Noise reduction:	Yes
Noise reduction technology:	3D noise reduction
Number of cameras:	1
Number of illumination leds:	2
Number of lenses:	1
Objective:	2.8 mm
Observe distance:	31.2 m
Operating relative humidity (h-h):	0 - 95%
Operating temperature:	-40 °C ... 60 °C
Operating temperature (t-t):	-40 - 60 °C
Osd on-screen menu:	OSD menu available via DAHUA DVR
Package depth:	139 mm
Package height:	137 mm
Package weight:	660 g
Package width:	148 mm
Pan range:	0 - 360°
Placement supported:	Outdoor
Power:	12 V DC / 480 mA
Power consumption:	≤ 5.7 watts
Power consumption (max):	5.7 W
Power source type:	DC
Privacy masking:	Yes
Producer / brand:	DAHUA
Product colour:	White, Black
Progressive scan:	Yes
Range of white light illuminator (led):	40 m
Recognize distance:	15.6 m
Remote viewing:	Yes
Resolution:	2880 x 1620 - 5 Mpx @ HD-CVI @ 25 fps - Image format 16 : 9, 2560 x 1440 - 4 Mpx @ AHD / HD-CVI / HD-TVI @ 25 fps, 1920 x 1080 - 1080p @ HD-CVI @ 25 fps, 960 x 576 - 960H @ PAL
Scales:	0.5 kg
Sealing:	IP67
Selected features:	Possibility to turn off the LED illuminator WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image F-DNR (Defog) - Reduction of noise related to precipitation D-ZOOM - Digital zoom : x4 BLC/HLC - compensation of background light / strong light Auto white balance AGC - Automatic image gain adjustment Mirror - Image mirroring Privacy zones - max. 8 Sharpness - Sharpening image outlines
Sensor size:	5 MP
Sensor type:	CMOS
Signal-to-noise ratio (snr):	65 dB
Smart ir:	Yes
Standard:	AHD, HD-CVI, HD-TVI, CVBS
Storage temperature (t-t):	-40 - 60 °C
Supported graphics resolutions:	960 x 480, 2880 x 1620, 1920 x 1080 (HD 1080), 960 x 576, 2560 x 1440
Supported video modes:	1080p
Tilt angle range:	0 - 78°
Total megapixels:	5 MP
Transducer:	Progressive Scan CMOS
Type:	CCTV security camera
Video output:	AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Video recording:	Yes
Viewing angle:	111° (manufacturer data) 106° (our tests)
Warranty:	3 years
Weight:	490 g
White balance:	AWC, Auto
Wi-fi:	No
Wide dynamic range (wdr):	Yes
Zoom capability:	Yes

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The device is equipped with Smart Dual Illumination technology, thanks to which the user has a choice of white light mode and IR (infrared) modeWhen Smart Dual Illumination is active, the white light will turn on automatically only when the object is detected in the monitored area, which effectively improves image quality

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

In addition, the camera has the function of active deterrence of intruders with flashing red and blue light and siren soundThanks to the "Starlight" technology, the camera only needs very low light to obtain a clear color image

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
