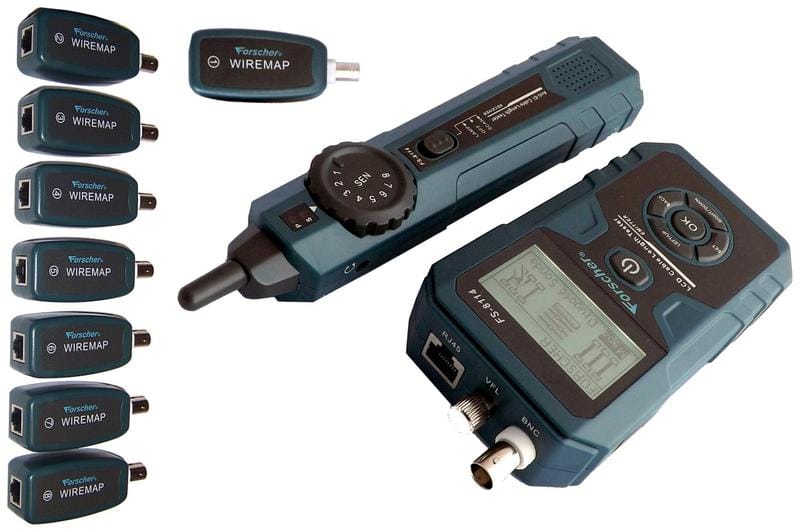

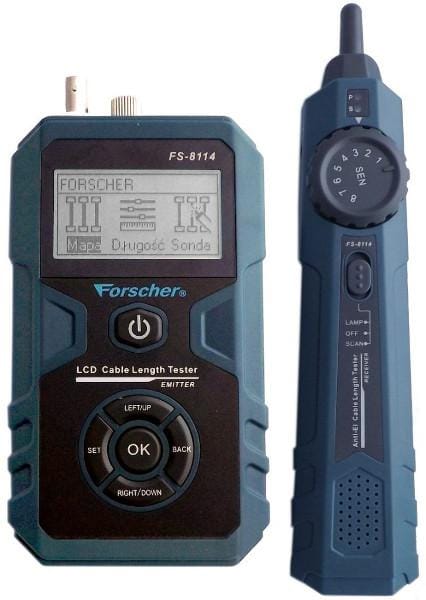

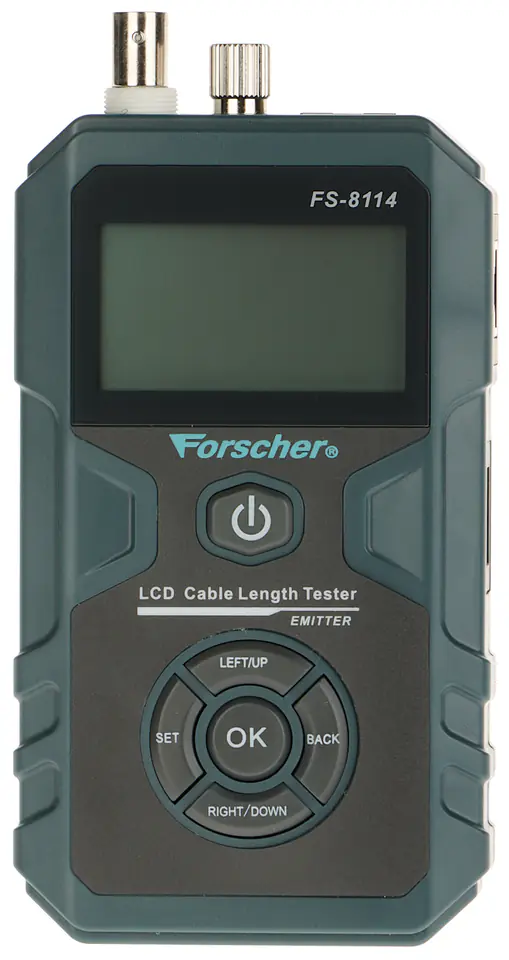

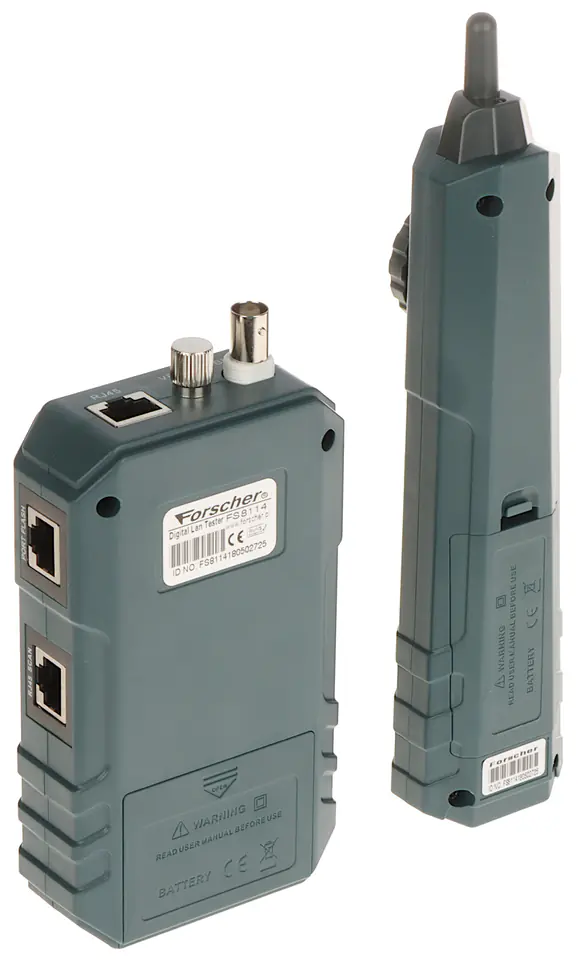

FS-8114 tester is used to measure wiring continuity, cable length and distance to cable damageThe device allows measurements to be performed on telephone line wires, twisted pair cables, and coaxial cablesThe device has also been equipped with an advanced cable pair detector with increased accuracy (a unique technique for generating analog and digital tones)High sensitivity allows you to locate wires under plaster at a depth of up to 15 cmTester it can also be used to measure voltages on individual strands of twisted pair cable (passive PoE)
CABLE TESTER FS-8114 FORSCHER
€157.89
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- FORSCHER
- Product code:
- FS-8114 / 5904181114936
Share this product:
Specification
| Cables tested:: | STP / UTP cat. 5, 5e, 6 - RJ45 (8P8C), RJ11 (6P4C), Coaxial cable |
|---|---|
| Dimensions:: | 152 x 78 x 35 mm - Transmitter210 x 46 x 30 mm - Receiver |
| Manufacturer / brand:: | FORSCHER |

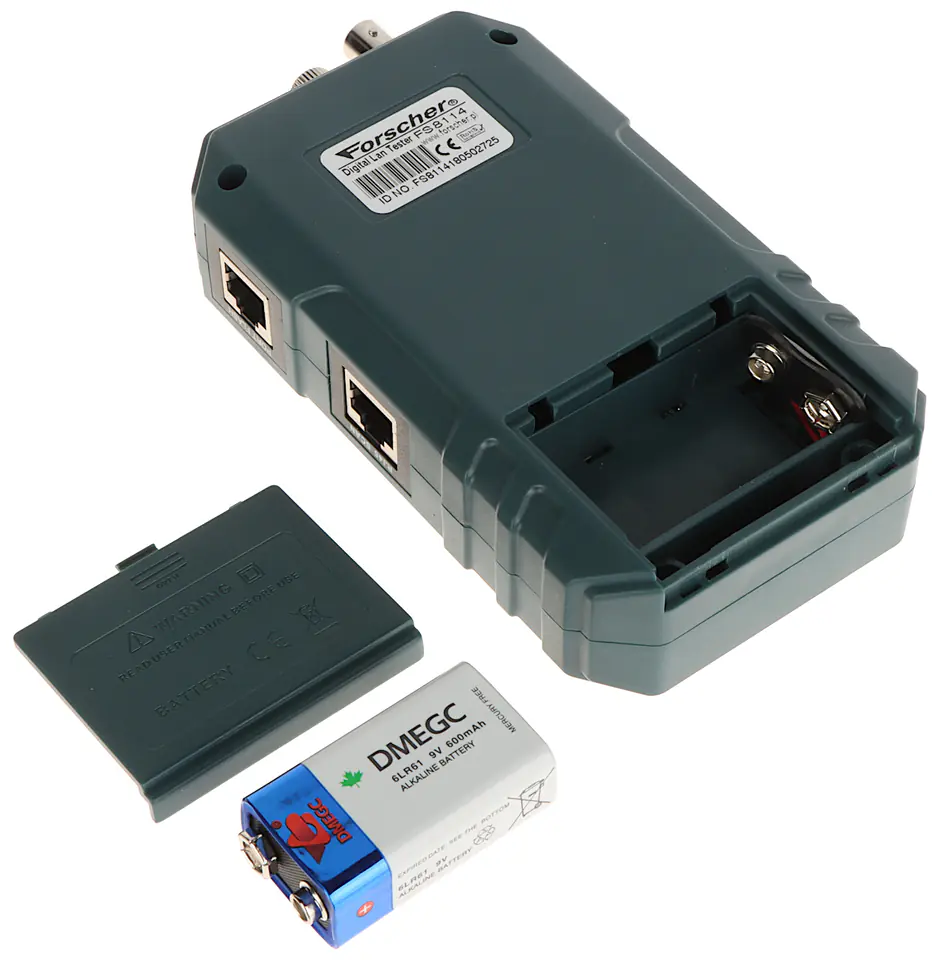

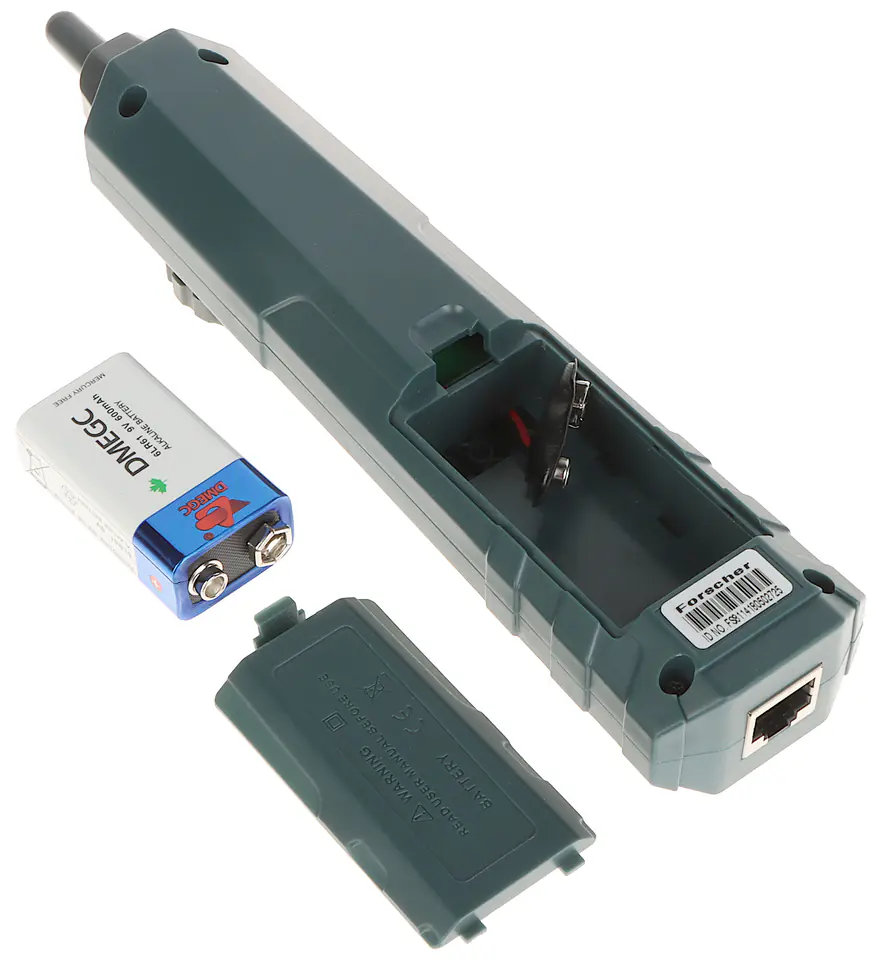

| Power:: | 2 x 9V Battery, type 6F22 ( Transmitter / Receiver - included ) |
| Scales:: | 0.21 kg - Transmitter0.14 kg - Receiver |

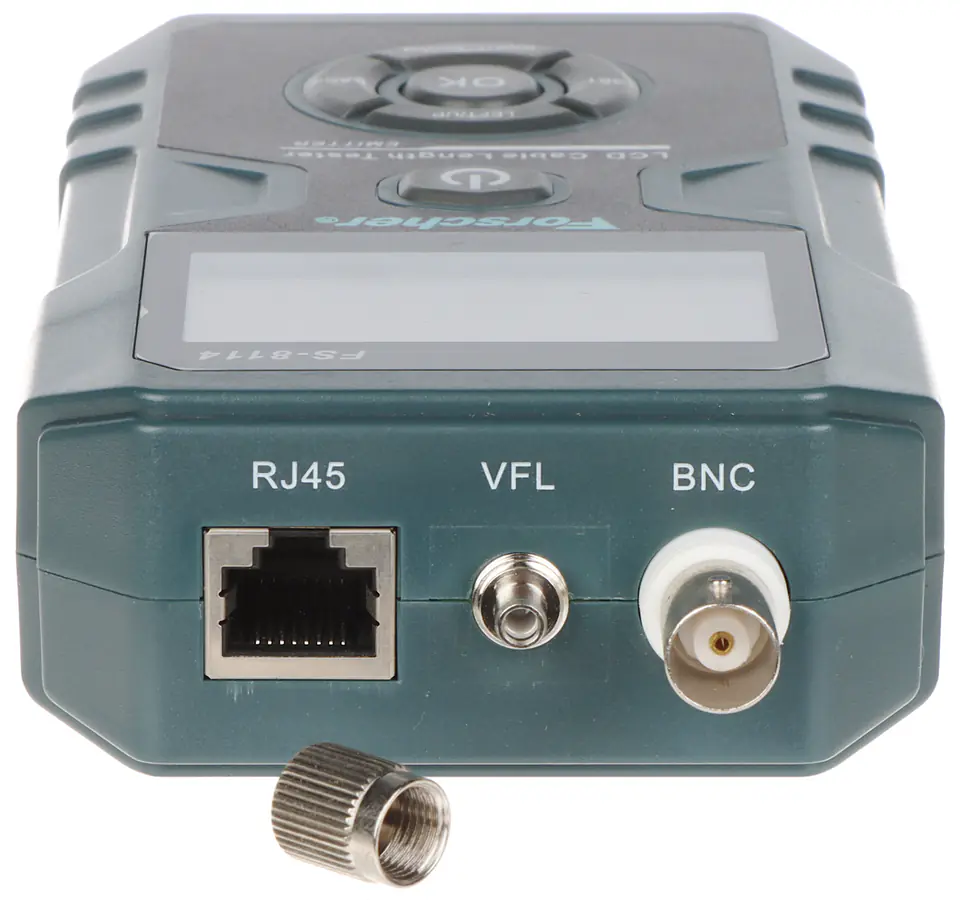

| Selected features:: | OSD On-Screen Menu: Polish, English Large, easy-to-read LCD display with backlight Measurement of cable length Cable length : 1 ... 2000m Measurement Method: Capacitive Measurement Frequency: 130kHz "find Port" Function - Quick Port Search in Network Device Search and Test Cables in PoE Mode PoE Voltage Measurement of Voltages on PoE Wires Vapour Integrity Test Built-in VFL Laser Fiber Optic Tester Generating Visible Light Allows You to Quickly Find the Exact Place of Fiber Damage - max. 10 km, Connectors : 2.5 mm type SC/FC/ST Recording of measurement results in device memory Surge protection : 60 V AC / 48 V DC - Transmitter Automatic shutdown Low battery alarm |
| Warranty:: | 2 years |
