CABLE SHEARS DOUBLE BLADE 200MM

Technical Specifications

Manufacturer: Knipex
Manufacturer's code: 95 12 200
Total length: 200 mm,
Cutting range of copper, multicore cable: 70 mm2,
Cutting range of copper, multicore cable: Ø 20 mm,
Hook for safety rope: no,
Dimensions: 200 x 55 x 21 mm
Weight: 324 g



Cable shears double blade 200mm

Dedicated for cutting copper and aluminum cables, single and multicore,
The cutting operation is divided into 2 stages:
- pre-cut during which we cut the insulation with the front part of the blade,
- final cut (back of the blade) when we can cut the cable to a diameter of 20mm using one hand,
They give a clean and smooth cut without crushing and deformation of the cable,
Not suitable for cutting steel wires and cold-drawn copper wires,
They have precisely finished and hardened blades,
Their design and gear ratio allow for easy cutting even with one hand,
They have a secure handle profile,
They are equipped with a screw connector with the possibility of adjustment, self-locking,
They are made of special high-quality tool steel, forged and oil-hardened.


**

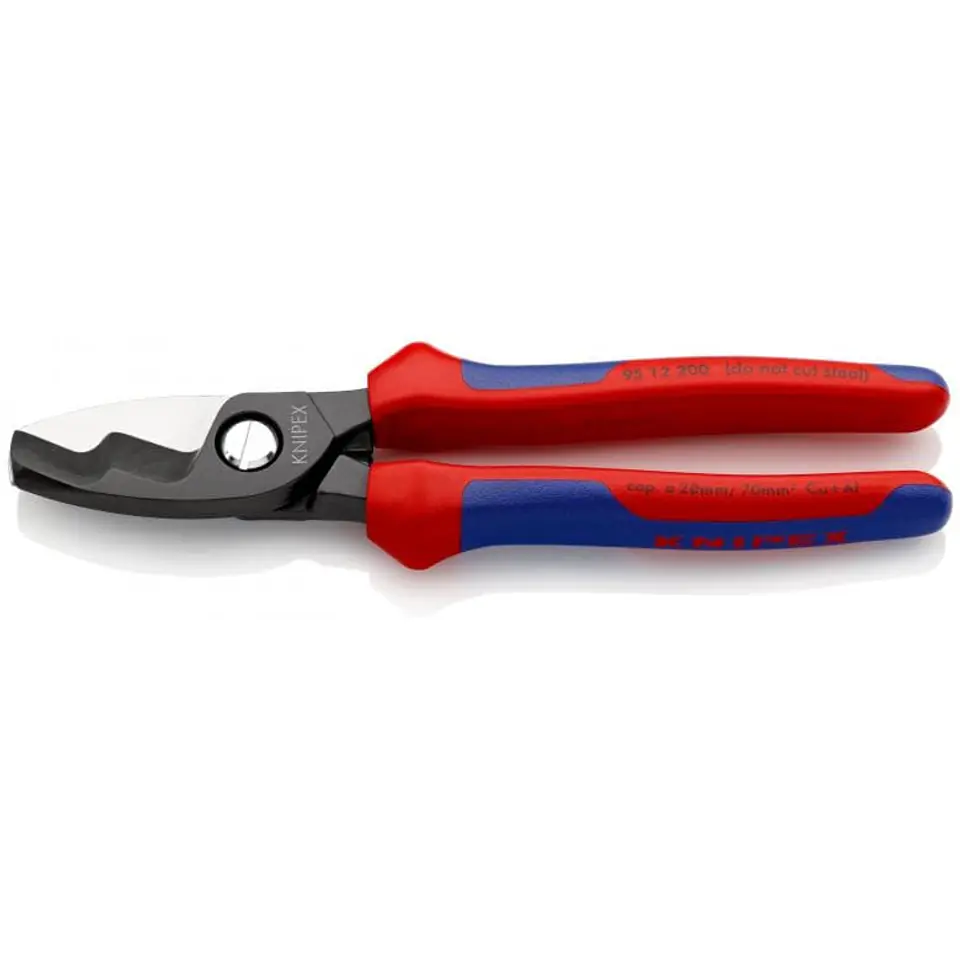

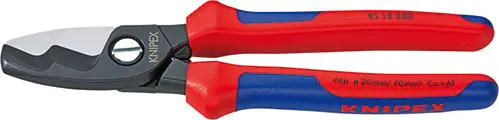

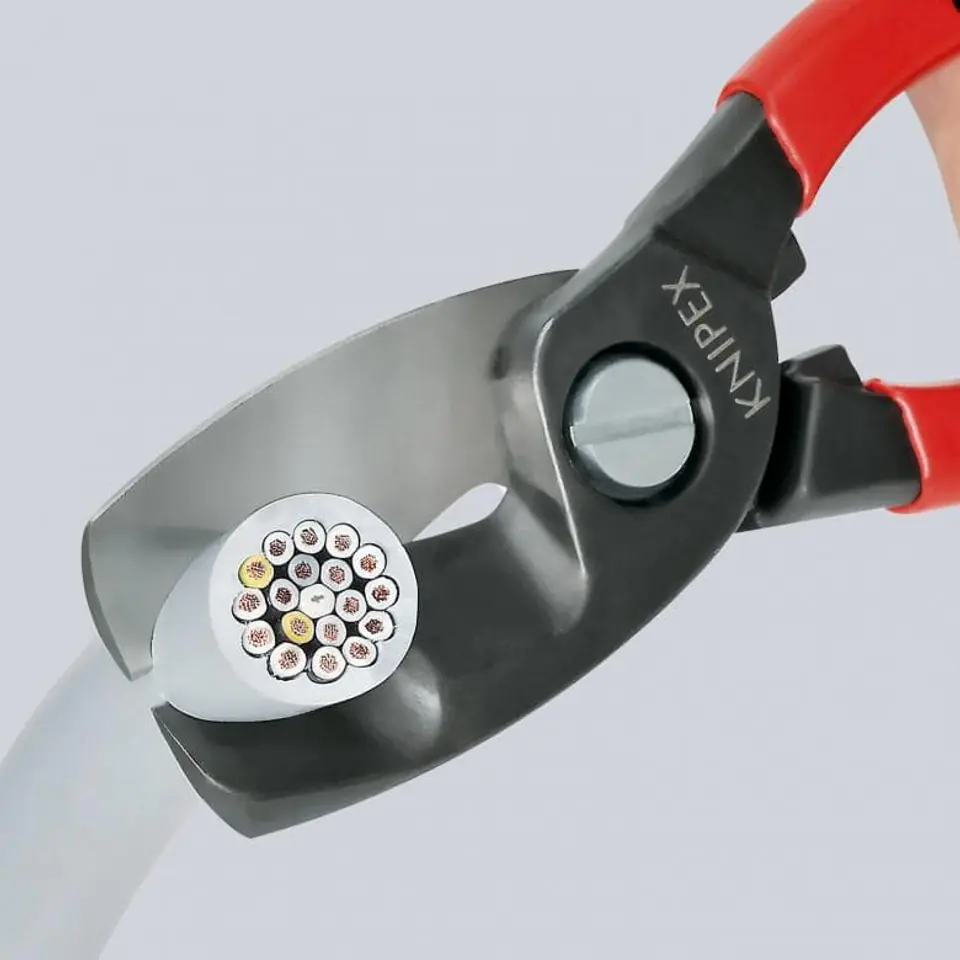

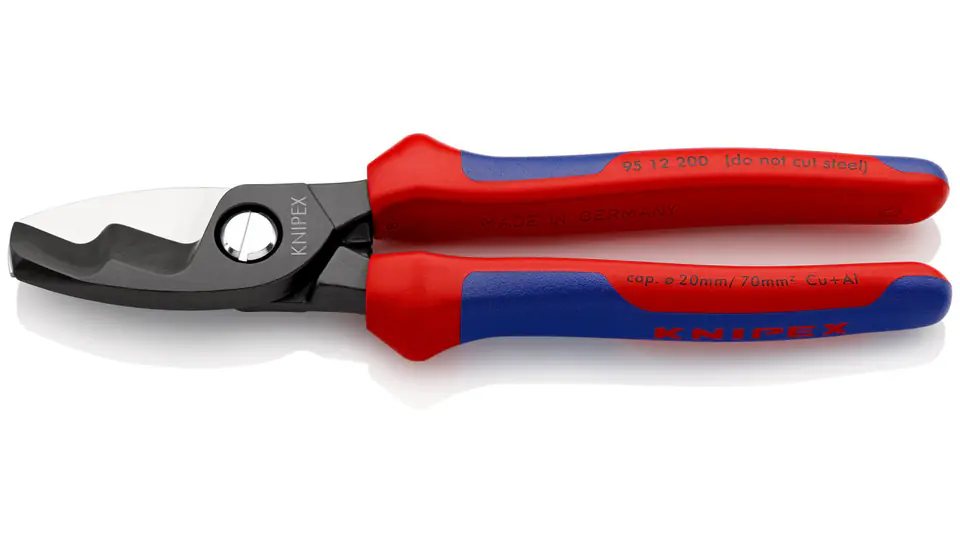

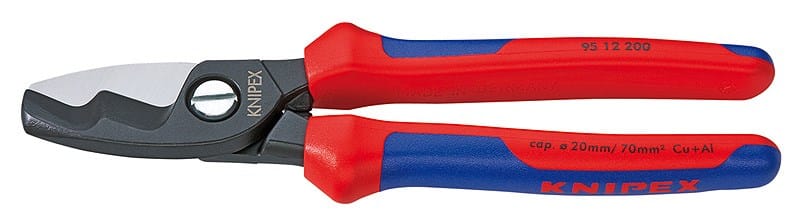

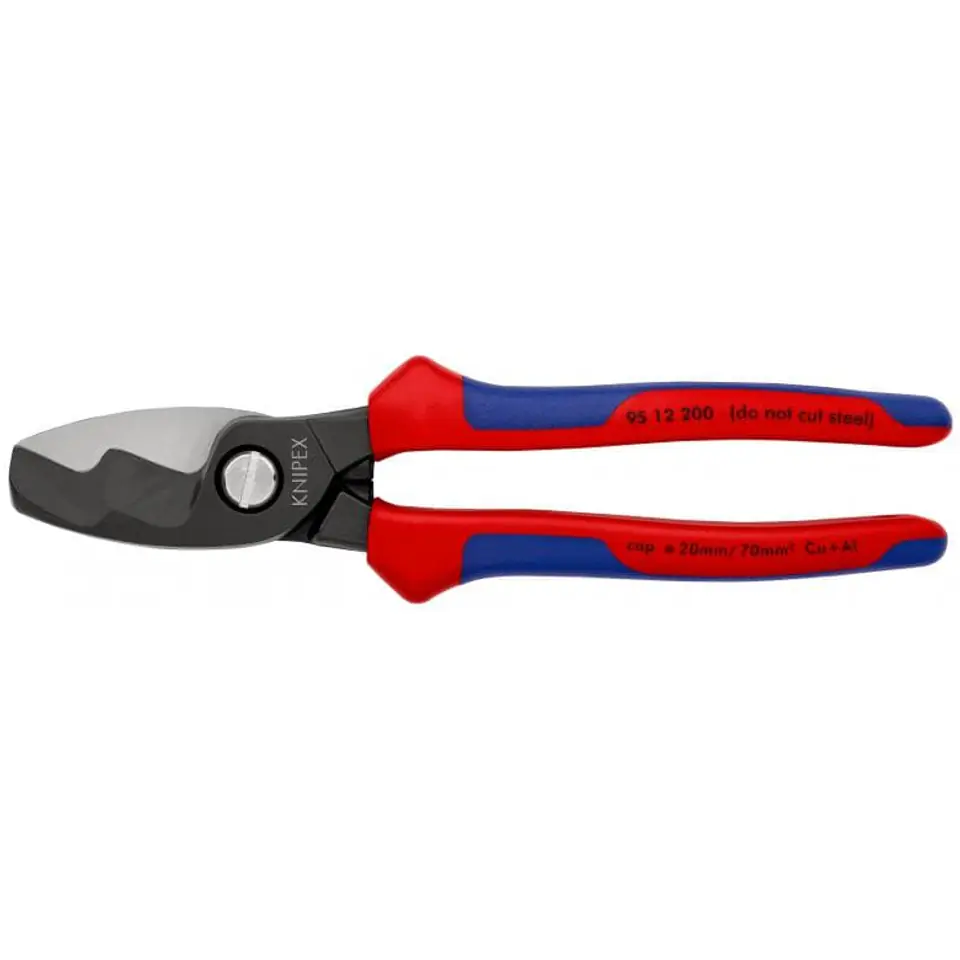

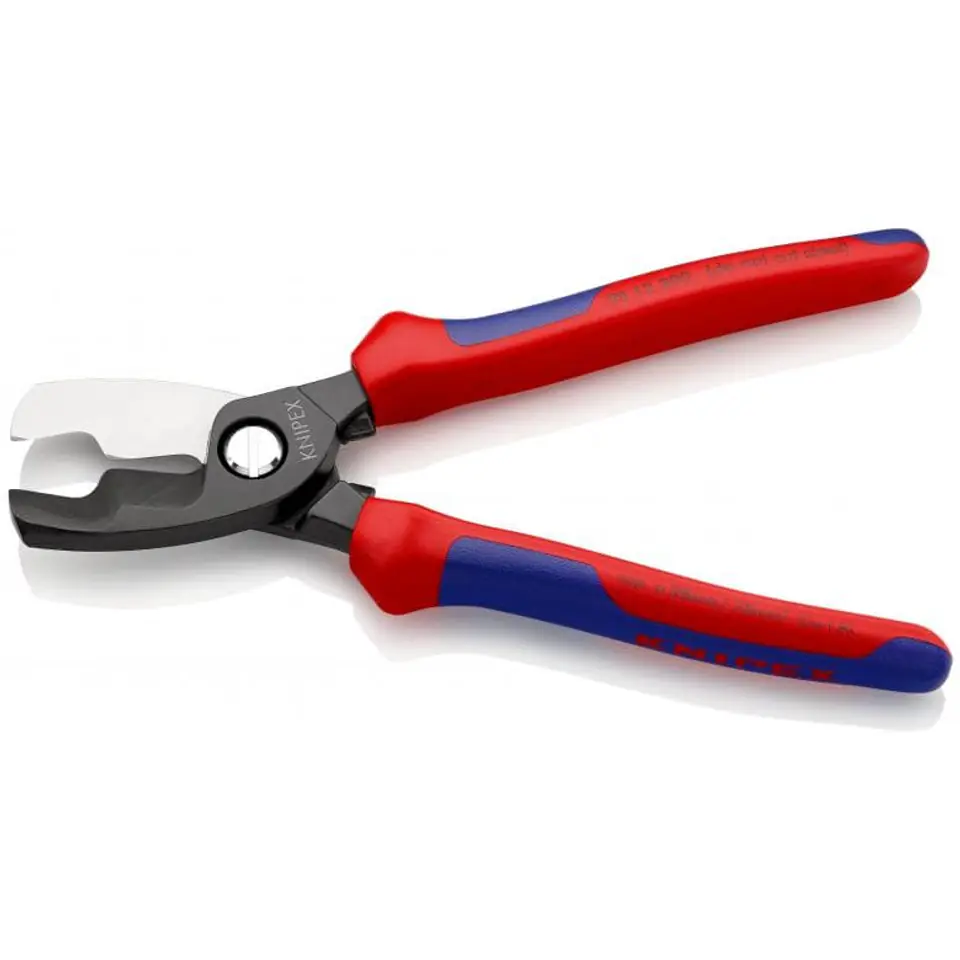

Illustrative photos
