Coaxial cable TRISET-113 ECA class A 1.13/4.8/6.8 100 dB - 100m
High quality Triset-113 coaxial cable dedicated to both individual and collective installations. It can be successfully used in DVB-T systems, FM/DAB radio and multiswitch systems (DVB-T terrestrial TV and DVB-S/S2 satellite TV).

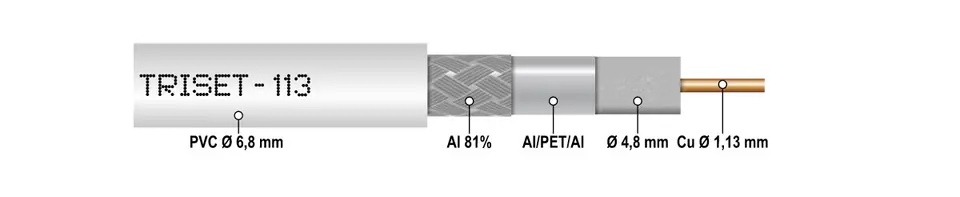

Inner conductor made of copper wire with a diameter of 1.13 mm and a double screen - Al/PET/Al foil glued to the dielectric + 81% braid.
Distinguishing features:
- compliant with the class A standard,
- compliant with the requirements of the MTBiGM Regulation,
- meets the requirements of the standard for accelerated aging IEC68-2 part 3,
- copper core 1.13 mm,
- low attenuation,
- excellent fit,
- high shielding efficiency - in most of the range meets the requirement of class A+,
- 81% braid coverage
- 5 years warranty.

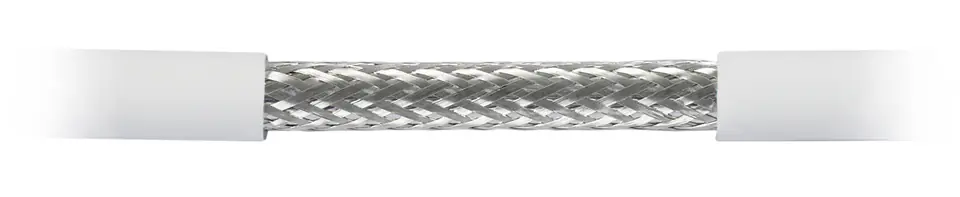

Triset-113 E1015_100 has 81% braid coverage guaranteeing a high level of shielding and protecting the useful signal from external interference.
The value of braided cable coverage (81%) is in line with the requirements of the regulation of the Ministry of Transport of Construction and Maritime Economy on the technical conditions to be met by buildings and their location.

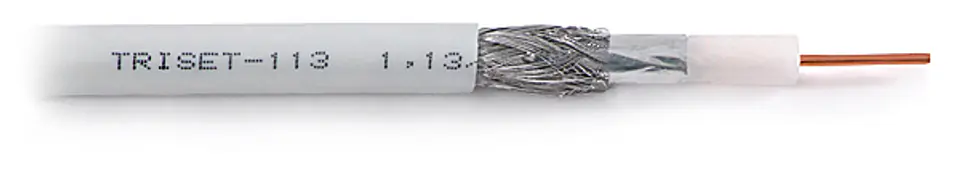

High quality, double-shielded coaxial cable type RG6 has an internal conductor made of copper wire with a diameter of 1.13 mm, which makes the cable has very good attenuation parameters. This core does not corrode and the conductor is not rigid.
Thanks to the high quality of workmanship and good electrical parameters, the Triset-113 cable enjoys unflagging popularity among many installers. The optimally selected flexibility of the jacket allows for easy laying of the cable both in cable shafts, as well as installation boxes or mounting boxes.
The cable was made with strict quality rigors, with small permissible deviations from the nominal parameters.
To protect the minimum bending radius of the cable, the wires placed in the walls should be laid in tubes/frames.
Technical data:
- Type of goods: coaxial cable

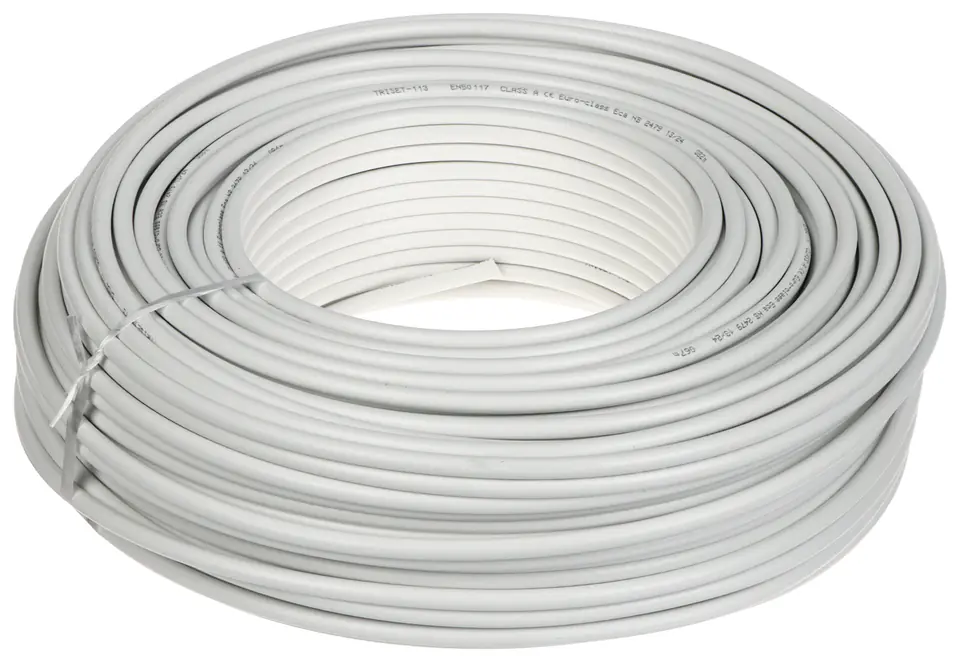

- Wire length: 100m
- Application: internal
- Cable class: RG-6
- Compliance with the MTBiGM Regulation
- CPR Class: Eca
- Gelled cable: No
- Impedance: 75Ω
- Shielding class: A
- TI transfer impedance: <5 mΩ/m
- Wire: Copper 1.13mm
- Dielectric: foaming f izyczne, diameter 4.8mm
- Number of layers: 2
First film:
- glued to the dielectric: YES
- Material: Al/PET/Al
- dimensions: 30/12/30 μm
- total thickness: 75μm
Braid:
- material: Aluminum
- wire diameter: 0.12mm
- number of wires: 24x6pcs.
- winding angle: 19.34 degrees
- coverage: 81%
Coat:
- material: PVC
- thickness: 0,8mm
- diameter: 6,8mm
- colour: White (RAL 9010)
Electrical properties:
- Resistance at 20 °C: 16.85 Ω/km
- Capacity: 52 pF/m
- Wave shortening coefficient: 84 %
Mechanical properties:
- Operating temperature: -30...+70 °C
- Laying temperature: -5...+40 °C
- Minimum bending radius: 35mm (once) 70mm (repeatedly)
