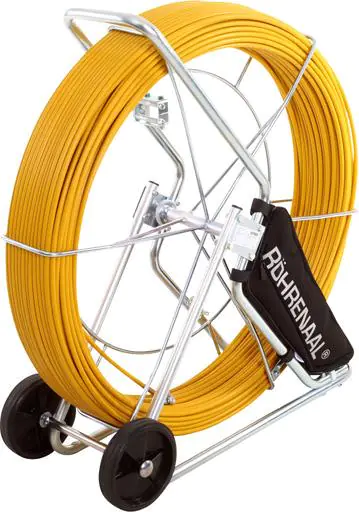

Röhrenaal® cable pulling device
Design: push-resistant glass fiber cable for pulling in Polykat® cables with M12 end sleeves glued together and pins fixed at both ends of the cable. The integrated brake prevents the cable from unwinding itself. In addition, stockings and cable pulling heads and guide heads can be screwed via the M12 thread. Delivery with carrying case.
Application: for pulling telecom cables and power cables into hollow pipes and filled pipelines.
Scope of delivery: guide head with retraction loop Ø 25 mm, aluminium, shackles, pin Ø 10 mm, 2 initial sleeves, guide sleeve, 4 mounting pins, special adhesive weighing 20 g and carrying case.
Cord Ø 9 mm. Minimum bending angle 240 mm. On a roll-up winding drum made of galvanized steel.
