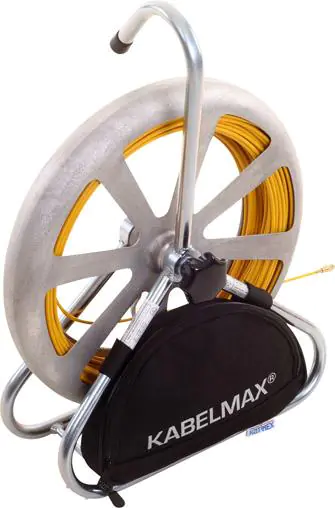

Cable retraction device Kabelmax®
Design: push-resistant rope for pulling in glass fibers Polykat® Ø 4.5 mm with M5 starting sleeves at both ends of the cable. The integrated brake prevents the cable from unwinding itself. In addition, stockings and cable pulling heads and guide heads can be screwed via the M5 thread. The minimum bending radius is 100 mm.
Application: for pulling cables into hollow pipes and filled pipelines.
In an aluminum storage basket, with galvanized steel tube frame. Scope of delivery: guide head with eye Ø 11 mm, M5 thread, 2 adapter heads with eye Ø 6 mm, M5 thread, 3 initial sleeves, M5 thread, 2 connecting sleeves, special glue weighing 3 g and a carrying case.
