CABLE CONNECTOR QUAD IP68 3X4MM2

Specifications:

Terminal Type: X-type Quad
Number of wires: 3
Wire cross section: 4mm2
Current: 25A
Cable diameter: 6-12mm
Rated voltage: 450 V
Protection class (IP): 68
Contact material: nickel-plated brass
Flame retardant housing: yes
UV resistance: yes
Enclosure flammability class UL94: V1
Dimensions - length (mm): 100mm
Connection Type: Screw
Can be installed in the ground: yes
Dimensions - width: 100mm
Housing material: PA6
Diameter: 24mm

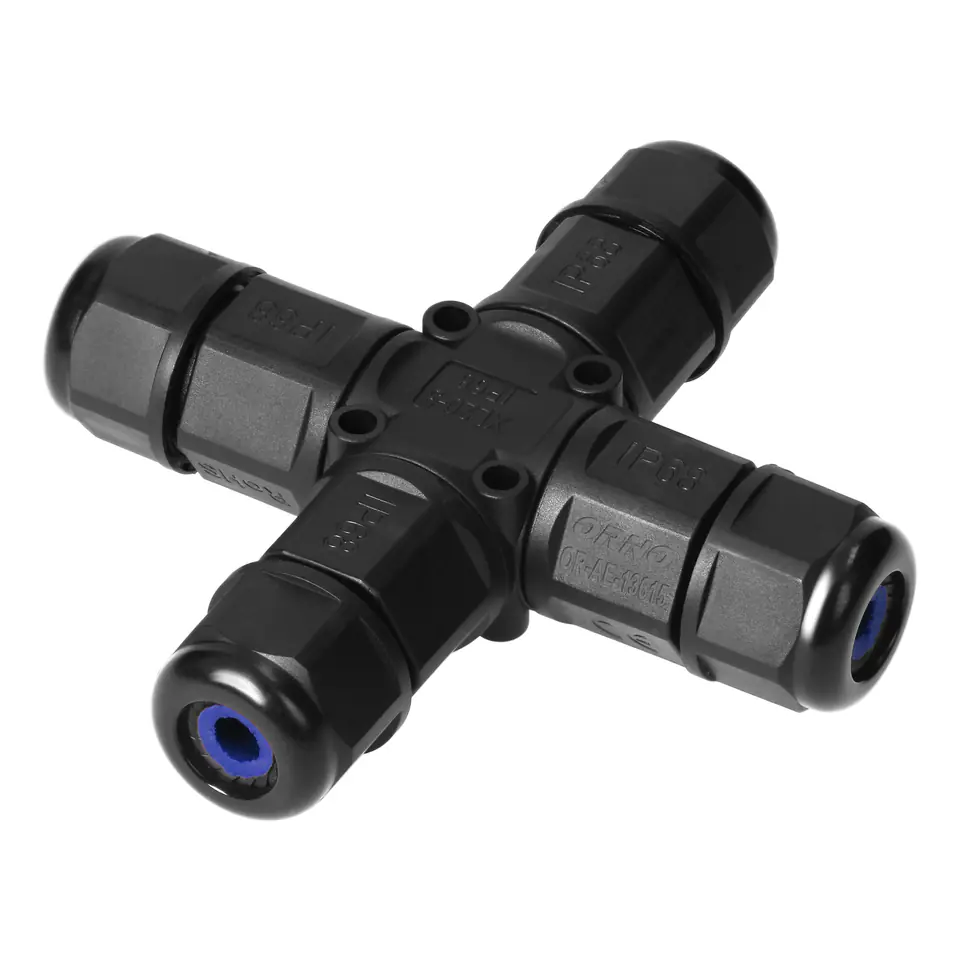

The cable connector (X-type) of small size is suitable for cables with a maximum cross-section of 4mm2. The high degree of IP68 protection protects against external influences, and the innovative O-Ring seal does not expose the seal to damaging external, chemical and mechanical conditions.

The material used for the production of the connector is resistant to UV rays and is suitable for outdoor use. Rigid and compact construction and innovative sealing enable installation in the ground. The contacts are made of brass, additionally protected against oxidation with a nickel layer. The gland is equipped with a thick gasket that thoroughly seals the inserted wires.


**
