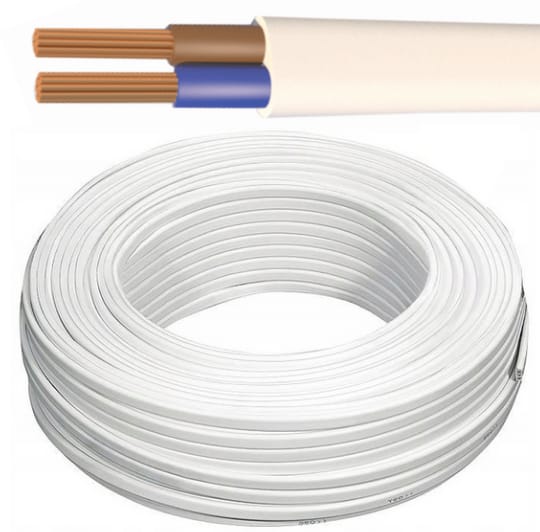

H03VVH2-F (OMYp) cables are cables that are designed mainly for powering electrical devices that have low demand for electricity consumption, devices operating in home and office rooms.
Explanation of the symbolism of the cable:
H03VVH2-F tire hose made according to harmonized standard (H), rated voltage 300/300V (03), PVC insulation (V), PVC sheath (V), flat (H2) and multi-wire flexible conductors (-F )
Low-voltage multicore power cables for rated voltage not exceeding 300/300V. General purpose cables with thermoplastic PVC (PVC) insulation.
Construction:
- class 5 copper conductor (multi-wire cable)
- PVC insulation
- PVC outer shell
Basic parameters:
- Standard: PN-EN 50525-2-11, PN-E 90103
- Operating temperature: up to +70°C
- Core (insulation) colors: 2X: blue, brown
- Shell / braid color: BLACK
- Number and nominal cross-section of conductors: 2x0,50
- Cable outer diameter – calculated value: 3.0×4.8
- Approximate weight of the cable length 1km: 30
- Max. conductor resistance at 20°C: 39.0
- Wire Type: Flat
