Manufacturer no: 10060477

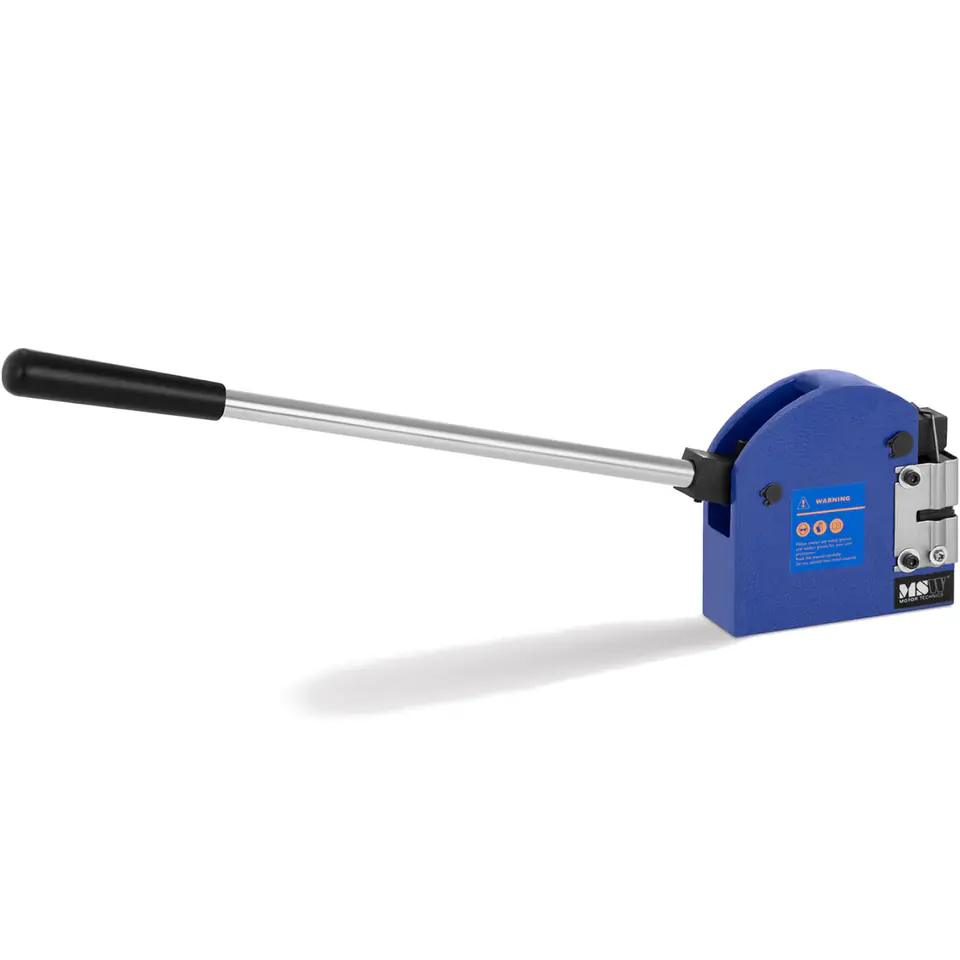

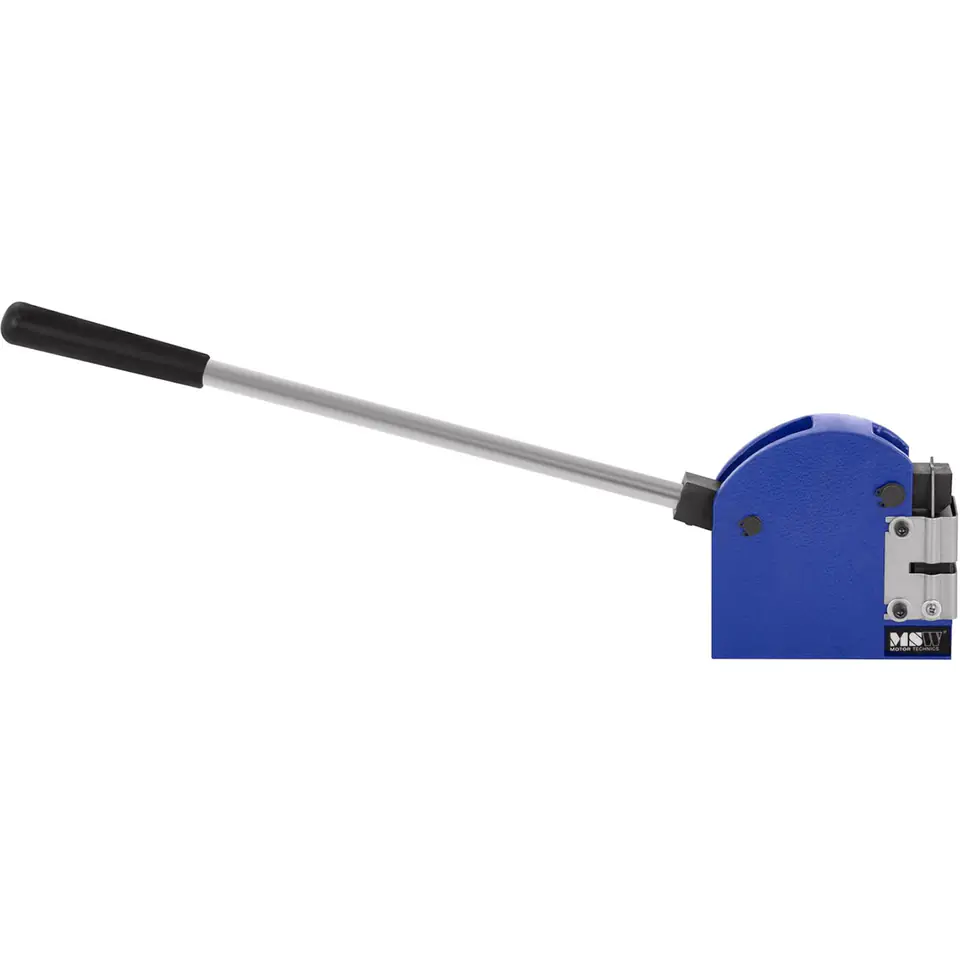

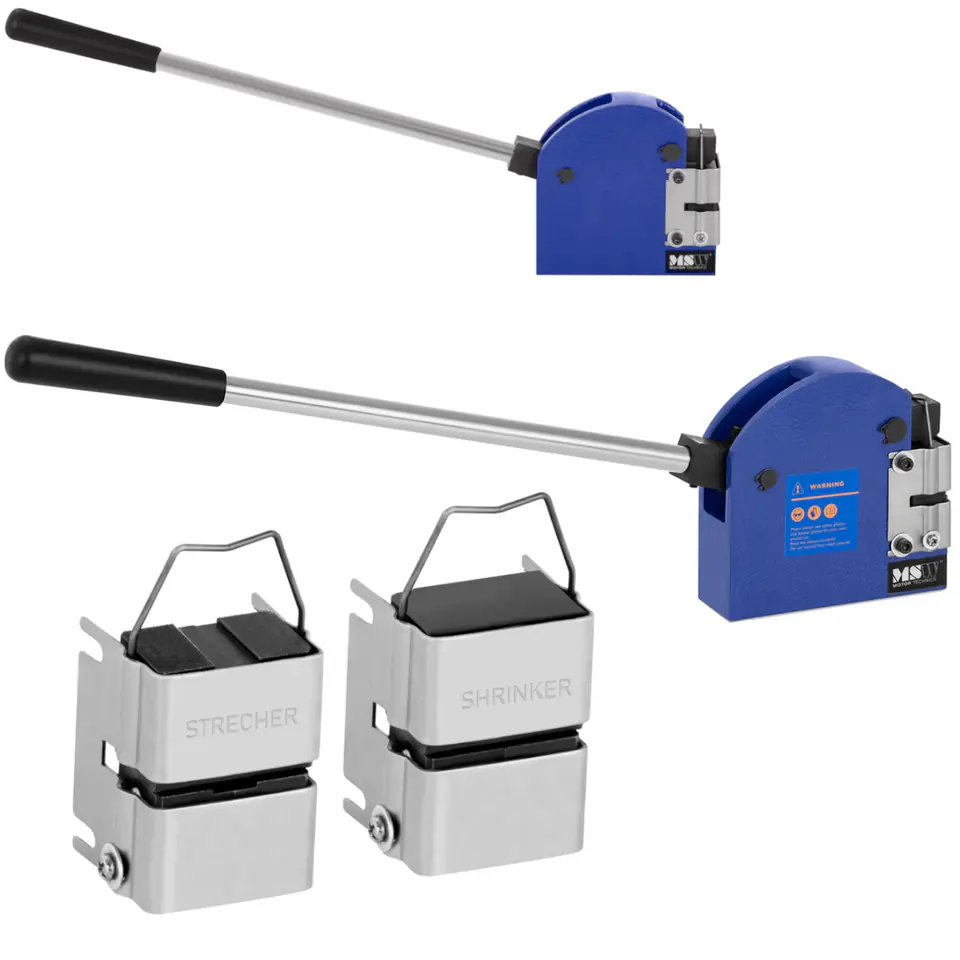

The MSW brand spug-stretcher will work well in professional or private workshops, locksmith and bodywork companies, body reconstruction and DIY enthusiasts. It allows you to shape elements from sheet steel and aluminum. The device has two functions of stretching and contraction. The large ratio of the hand lever allows you to work lightly and comfortably with steel sheets with a thickness of 1.2 mm and aluminum sheets of 1.8 mm. The device is very easy to operate. It is necessary to insert the workpiece material into the appropriate gap and press the lever. During bending, the material deforms - externally it stretches, internally compresses. The device has a small weight of approx. 5 kg. Non-slip handle ensures comfort of work. Thanks to the precision of the device, you can easily profile sigmoid shapes, accurate bending with tight angles and small radii (8.45 mm). Mounting the device in a vice, on a workbench rack grinder or to the floor increases the accuracy of work. The device is made of cast steel and hardened steel.
Product features:
- - Shrinkage and stretching,
- - Effective with sheet thickness of up to 1.2 mm and aluminum 1.8 mm,
- - Possible installation in a vice, on a workbench or floor,
- - Professional bending with a small flame,
- - Lightweight 5.5kg construction with rubber handle.
- - Model - MSW-SAS18
- - Catalog No. - 10060477
- - Article status - New
- - Model - MSW-SAS18
- - Catalog No. - 10060477
- - Article status - New
- - Maximum thickness - Steel sheet 1.2 mm, Aluminum 1.8 mm
- - Throat depth - 2.54 cm
- - Smallest bending radius - 8.45 mm
- - Material - Cast steel
- - Jaw material - Hardened steel
- - Dimensions (LxWxH) - 56.00 x 6.50 x 49.00 cm
- - Weight - 5.55 kg
- - Shipping dimensions (LxWxH) - 45.00 x 13.00 x 21.00 cm
- - Shipping weight - 6,05 kg

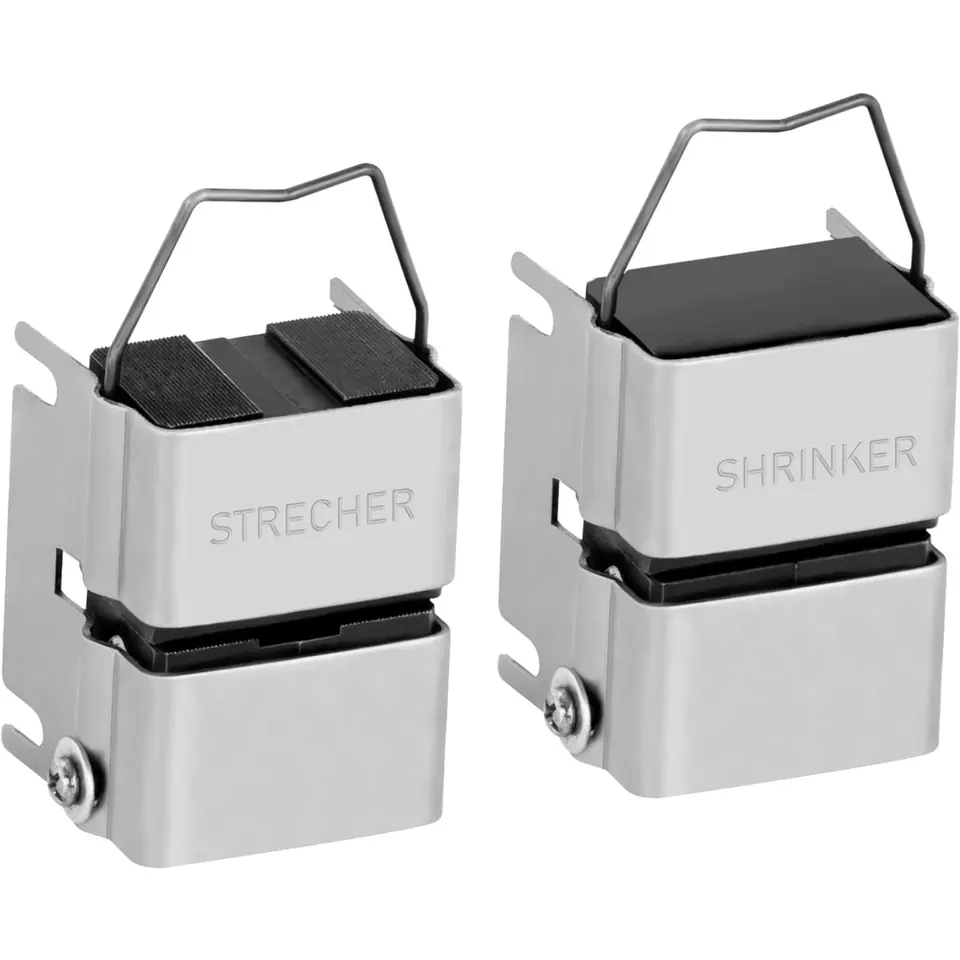

- - Swagger-puller with stretching and contracting jaws
- -Handle
- -Manual
