| Battery charging current: | 0.6 A / 1.5 A / 2.2 A / 3.0 A switchable |
|---|---|
| Battery space: | 12V/40Ah |
| Current efficiency (total): | 5.0 A (max) |
| Dimensions: | 335 x 355 x 178 mm |
| Input voltage: | 230 VAC |
| Max. battery dimensions: | 310 x 190 x 170 mm |
| Number of outputs: | 1 |
| Operating temperature / relative humidity: | -10 ... 40 °C / 20 ... 90 % |
| Output voltage: | 11 volts ... 13.8 V (buffer operation) |
| Power: | 78 watts (Printing) |
| Power supply operation control: | AC power indication Indication of the presence of DC output voltage EPS FLT output output - signaling AC power failure APS FLT output - Battery failure indication PSU FLT output - Power supply failure indication View failure codes with history |
| Producer / brand: | PULSAR |
| Scales: | 7.5 kg |
| Security: | Short Circuit Overload Thermal Anti-tamper Reverse connection Before over-discharge Before overcharging |
| Selected features: | LED Display Microprocessor Automation System Intelligent Power Output Management Free program "PowerSecurity" to monitor the operating parameters of the power supply Output voltage control Load current control |
| Standards met: | PN-EN50131-6, 1÷3 |
| Type of power supply: | Transformer |
| Warranty: | 2 years |

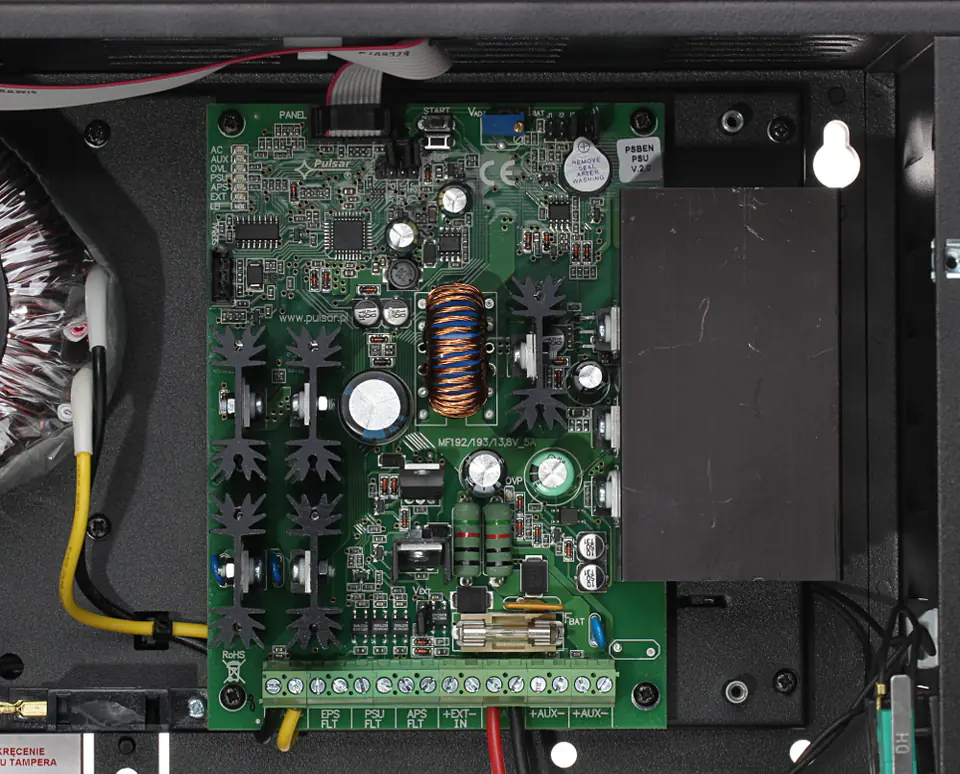

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
Particular attention should be paid to the proper cooling of the power supply during operation!
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
