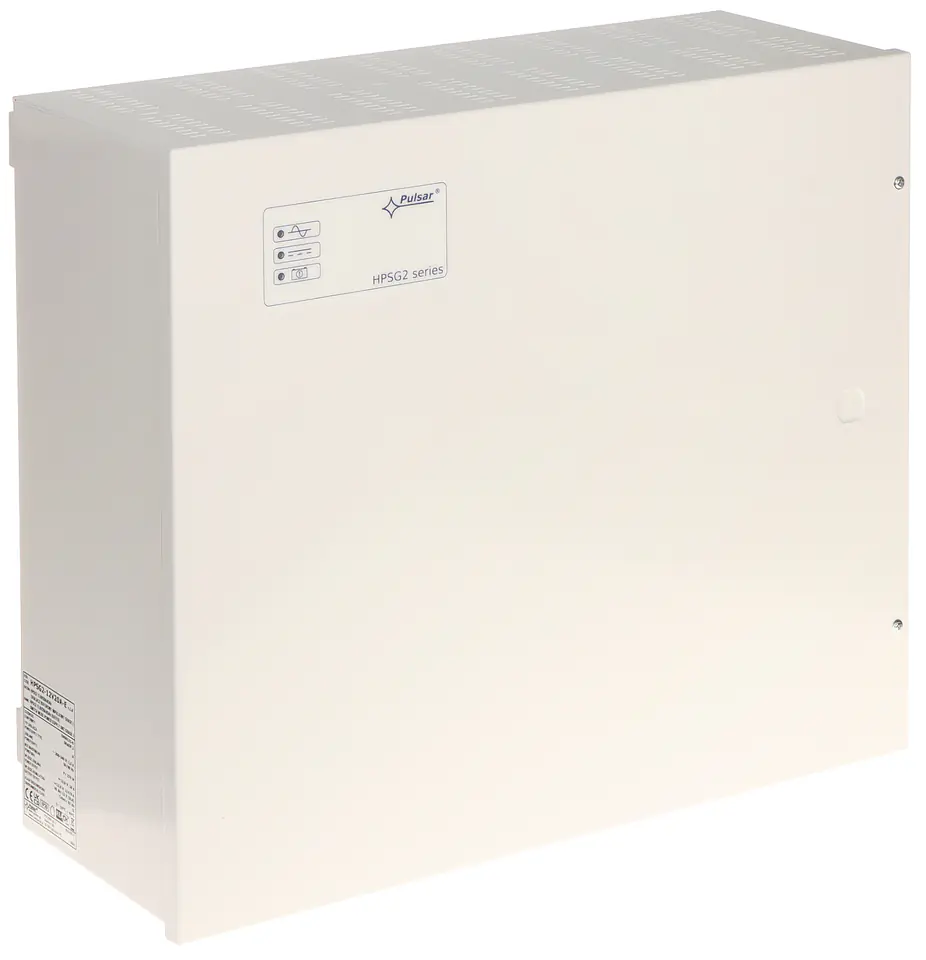

BUFFER POWER SUPPLY PULSE MODE HPSG2-12V20A-E PULSAR

Name: BUFFER POWER SUPPLY PULSE MODE HPSG2-12V20A-E PULSAR
Brand: Pulsar
SKU: 921859
Price: 180.96 EUR
Availability: InStock

€180.96

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: HPSG2-12V20A-E / 5902135321089

Specification

Battery charging current:	2 A / 4 A / 8 A
Battery space:	12V/7Ah, 12V/17Ah, 12V/28Ah, 12V/44Ah, 12V/65Ah
Current efficiency (total):	20 amps
Dimensions:	465 x 395 x 173 mm
Input voltage:	200 V ... 240 VAC
Max. battery dimensions:	450 x 190 x 168 mm
Number of outputs:	3
Operating temperature / relative humidity:	-10 ... 40 °C / 20 ... 90 %
Output voltage:	11.0 volts ... 13.8 V (buffer operation)10.0 V ... 13.8 V (battery operation)
Power:	276 watts (Printing)
Power supply operation control:	EPS FLT output - signaling AC power failure APS FLT output - Missing or battery failure AC power indication Indication of the presence of DC output voltage Battery failure indication Dynamic battery test Battery continuity check Battery voltage control Control of battery charging and maintenance.
Producer / brand:	PULSAR
Scales:	6.85 kg
Security:	Short Circuit Overload Overvoltage Anti-Tamper - Case Opening Deep discharge battery protection Battery output protection against short circuit and reverse connection
Selected features:	Efficiency ≤ 89 % START function for manual activation of battery power Fan forcing cooling
Standards met:	EN 50131-6:2017, 1÷2, Grade 2 EN 60839-11:2013, 1÷2, Grade 2 PN-83/T-42106 CE-LVD: EN62368-1 Protection class: IP20
Type of power supply:	Pulse
Warranty:	2 years

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system

The buffer power supply has been designed in accordance with the requirements of EN50131-6:2017 (Intruder Alarm Systems) and EN60839-11:2013 (Access Control) in level 1, 2 and environmental class IIWoat buffer power supply is designed for uninterrupted power supply of devices requiring 12V DC (+/-15%)

Particular attention should be paid to the proper cooling of the power supply during operation!

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
