Buffer power supply in DIN housing designed for systems powered by 24V
Particular attention should be paid to the proper cooling of the power supply during operation!
Battery charging current: | 2 A ± 1 A |
---|---|
Battery compatibility: | 24V/7.5Ah, 24V/12Ah, 24V/15Ah |

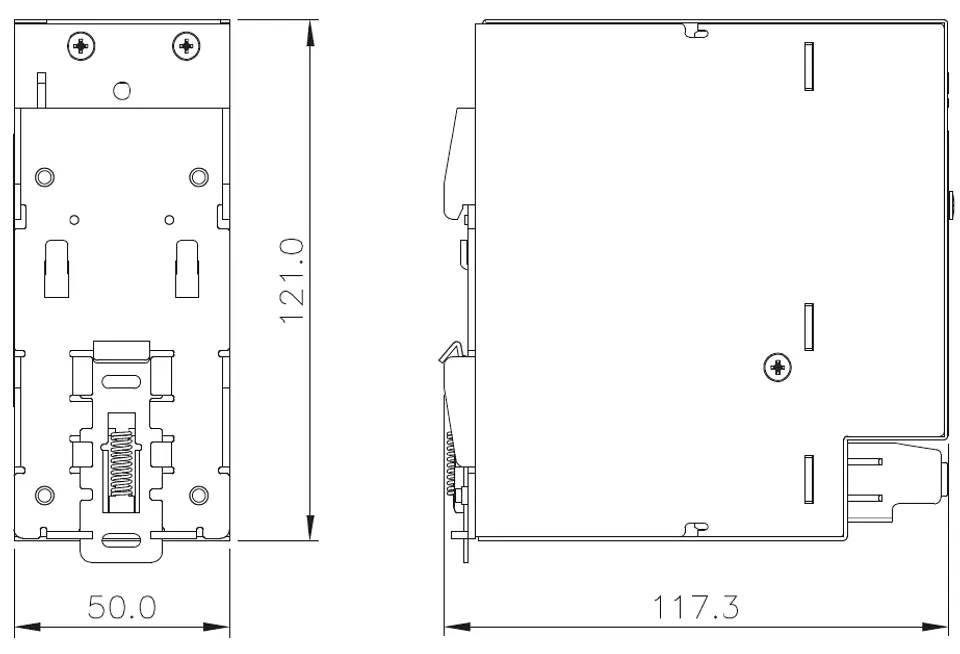

Dimensions: | 50 x 121 x 117 mm |
Efficiency: | > 70 % |
Enclosure type: | DIN |
Maximum current: | 40 amps |
Operating temperature / relative humidity: | -20 °C ... 60 °C / 20 % ... 90 % |
Output voltage: | 23 ... 28 VDC |
Scales: | 0.38 kg |
Security: | Surge Protection Overload Protection |
Supply voltage: | 24 ... 28 VDC |
Warranty: | 5 years |
Buffer power supply in DIN housing designed for systems powered by 24V
Particular attention should be paid to the proper cooling of the power supply during operation!
