| Battery charging current:: | 0.5 A |
|---|---|
| Current efficiency of the power supply:: | 10.5 A |
| Dimensions:: | 199 x 111 x 50 mm |
| Efficiency:: | 80 % |
| Emi emitted and conducted:: | Complies with EN55022 (CISPR22) Class B |
| Ems resistance:: | Complies with EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-1 |
| Harmonic:: | Complies with EN61000-3-2,-3 |
| Number of outputs:: | 1 pc. |
| Operating temperature / relative humidity:: | -10 °C ... 60 °C / 20 % ... 90 % |
| Output voltage adjustment:: | 12 ... 14.5 volts |
| Output voltage:: | 13.8 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 145 watts (Printing) |
| Scales:: | 0.8 kg |
| Security:: | Surge Protection Overload Protection |
| Standards met:: | UL60950-1, TUV EN60950-1 |
| Supply voltage:: | 100 ... 240 V AC |
| Warranty:: | 2 years |

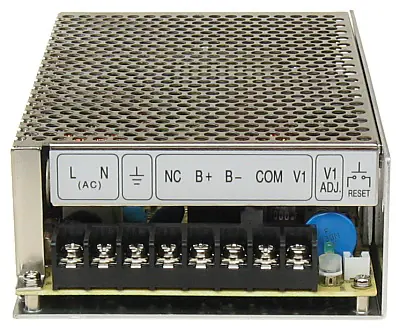

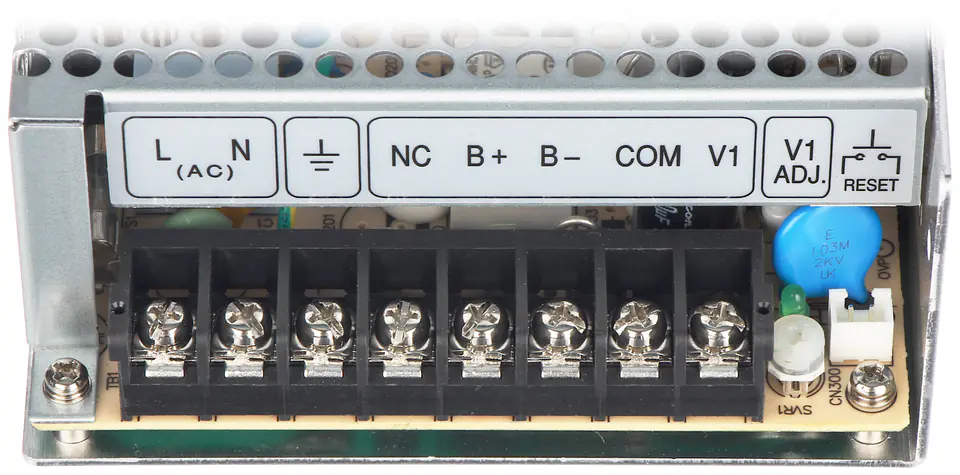

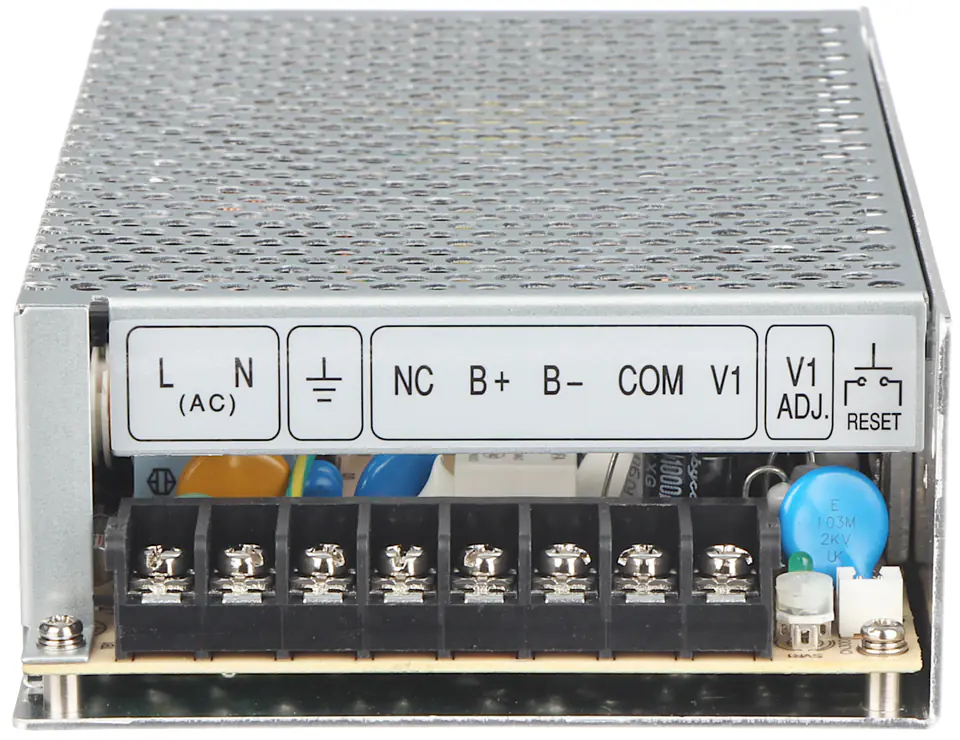

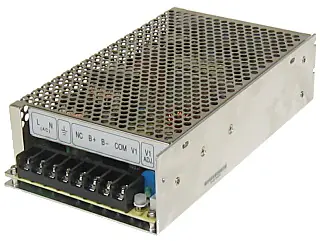

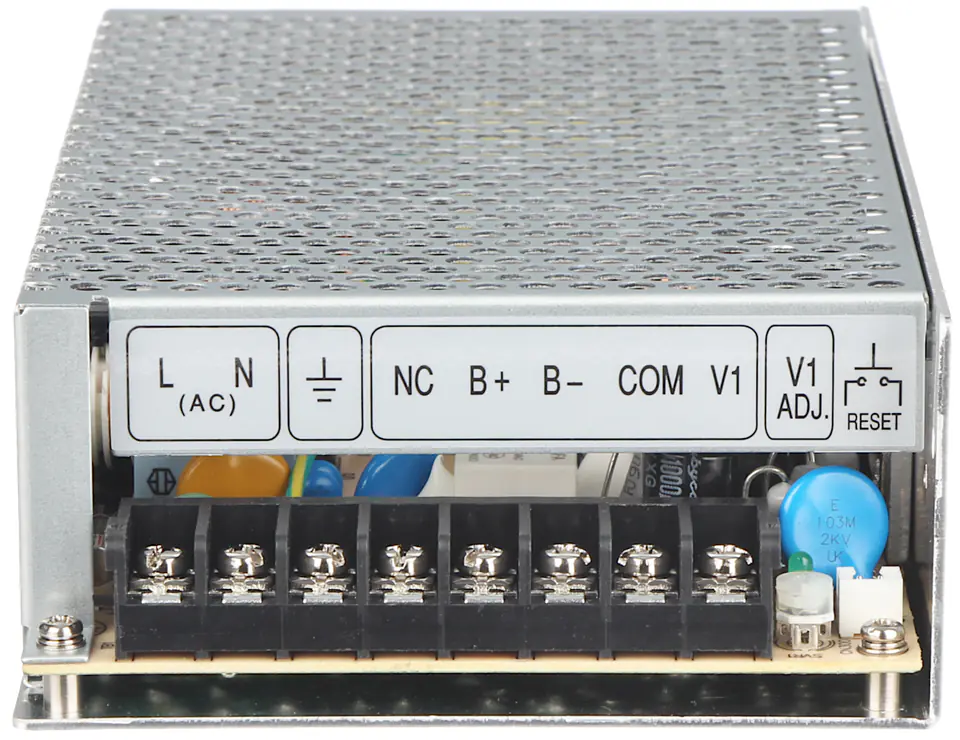

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentSpecial attention should be paid to the proper cooling of the power supply during operation!
