WE RAISE THE MONITORING OF INVESTMENT AREAS TO A NEW LEVEL

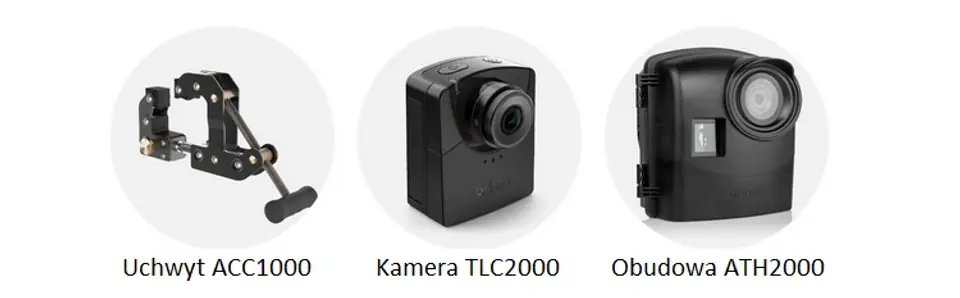

The new BRINNO BCC2000 construction kit consists of the previous three elements, just like the previous ones. The most important and necessary of these is the TLC2000 time-lapse camera. Model from 2019, with Full HD 1080p recording and HDR support. The set also includes an ATH2000 waterproof housing that meets the IPX5 tightness standard, and a handle adjustable in many directions, called "magic arm" by the manufacturer and marked as ACC1000.
HDR AND FHD RECORDING
The TLC2000 EMPOWER camera is not only a new model among time-lapse cameras, it is a camera recording images in FullHD 1080p (1920x1080 px) resolution with full support for High Dynamic Range (HDR) support. The combination of these technologies guarantees extremely sharp and saturated recordings during the day and good quality clips after dusk and at night, when there is less lighting than during the day. We wrote about the capabilities and modes of operation of the camera itself in its full specification (you can check it >> HERE<<)
SCHEDULE RECORDING, SET SCHEDULE
New to the TLC2000 is the ability to schedule recording. The function is ideal for monitoring the progress of work on the investment site. The camera does not have to work in continuous mode, it can be programmed to take pictures, e.g. every 10 minutes, from Monday to Friday, from 7:00 to 18:00. Scheduler support extends the functionality of the camera and the entire construction set.
INCREDIBLY LONG WORK WITHOUT BATTERY REPLACEMENT
The BCC2000 set consists of a TLC2000 camera (powered by a 2x AA battery) and an ATH2000 housing equipped with an additional bank (magazine) for AA batteries in the amount of 16 pieces. The use of all of them allows the device to work for 385 days (with a minimum number of photos taken per day).

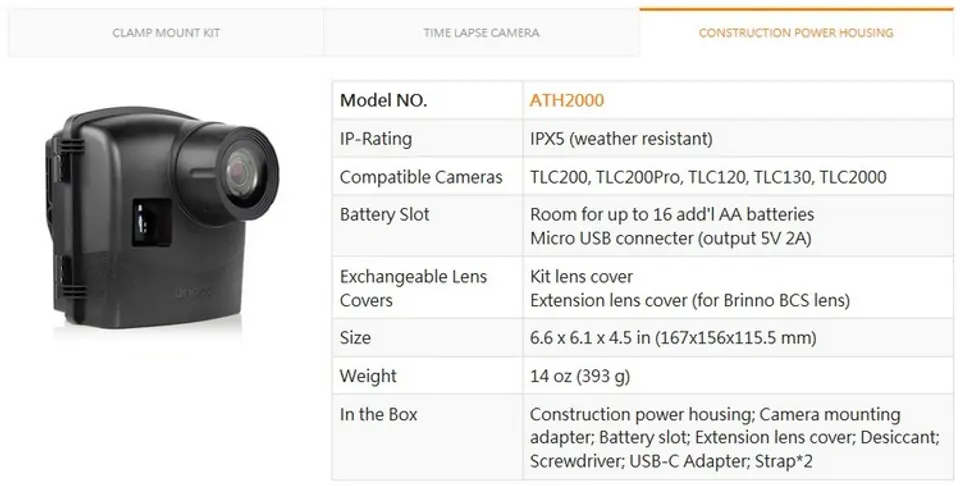

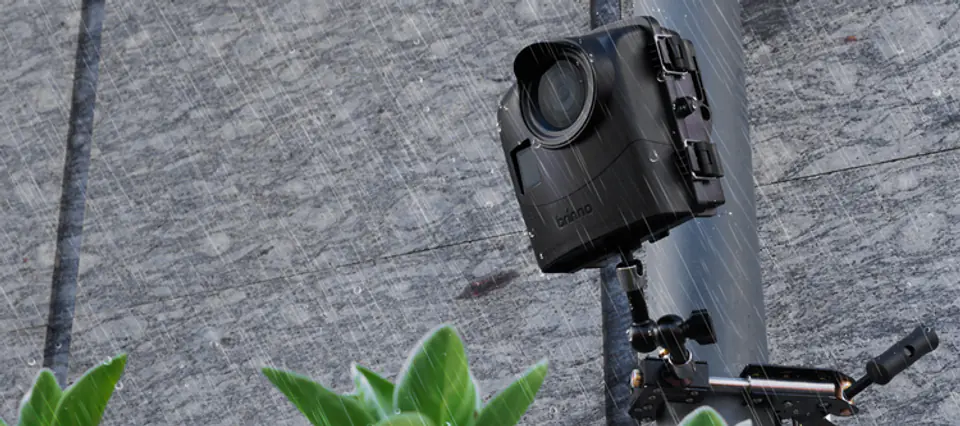

ATH2000 HOUSING WITH IPX5 STANDARD
The housing from the set is characterized by an interesting design and large size (due to the fact that it is universal, for all cameras from the TLC series). Water resistance is specified by the IPX5 standard, so the equipment can work during rainfall and at high humidity. In addition, inside there is a bank for 16 additional batteries and dedicated holes for power cords (if the user wanted to power the camera constantly, without batteries). The housing can be additionally secured against theft, with a small padlock, has a specially prepared hole. We wrote more about the housing itself in its full specification (you can check it >>HERE<<).
INTERCHANGEABLE LENSES DESPITE THE HOUSING
The ATH2000 is compatible with Brinno BCS series interchangeable lenses and CS mounting. The TLC2000 also allows for additional lens mounting for even better image quality.

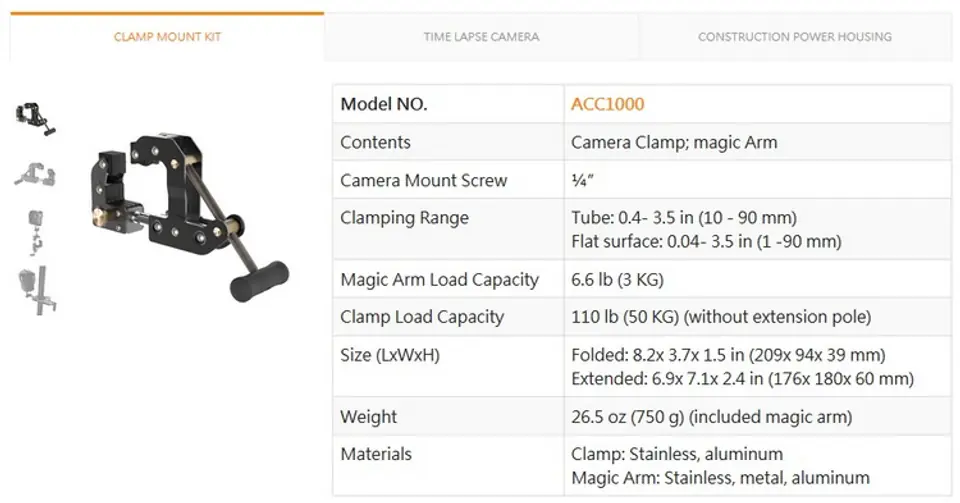

MAGIC ARM ACC1000

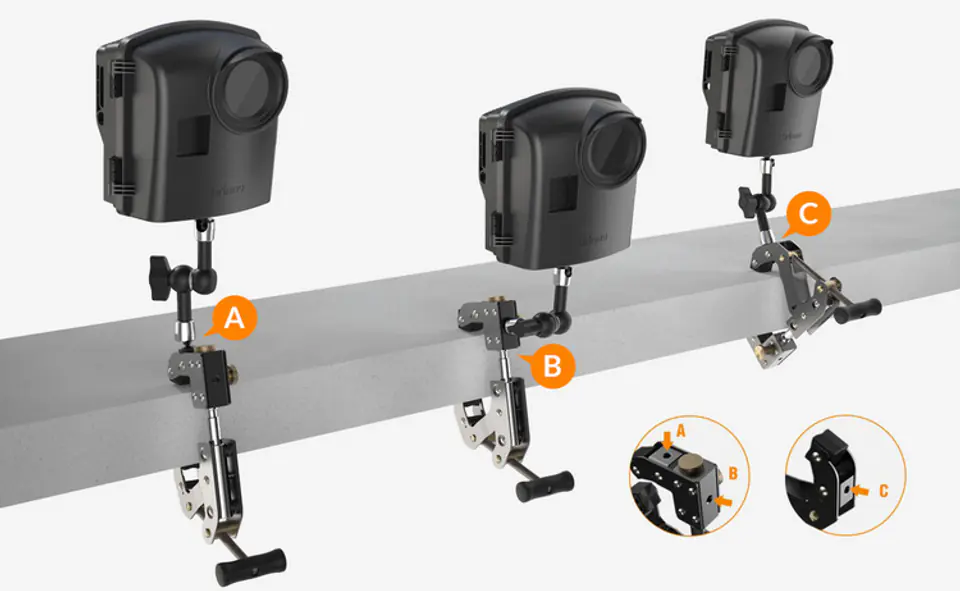

The BCC2000 construction set also includes an adjustable handle, referred to as the "magic arm". Large adjustment, smooth adjustment and assembly to almost any shape are undoubtedly its great advantages. Above is a small diagram with an example of assembly.
INCLUDED:

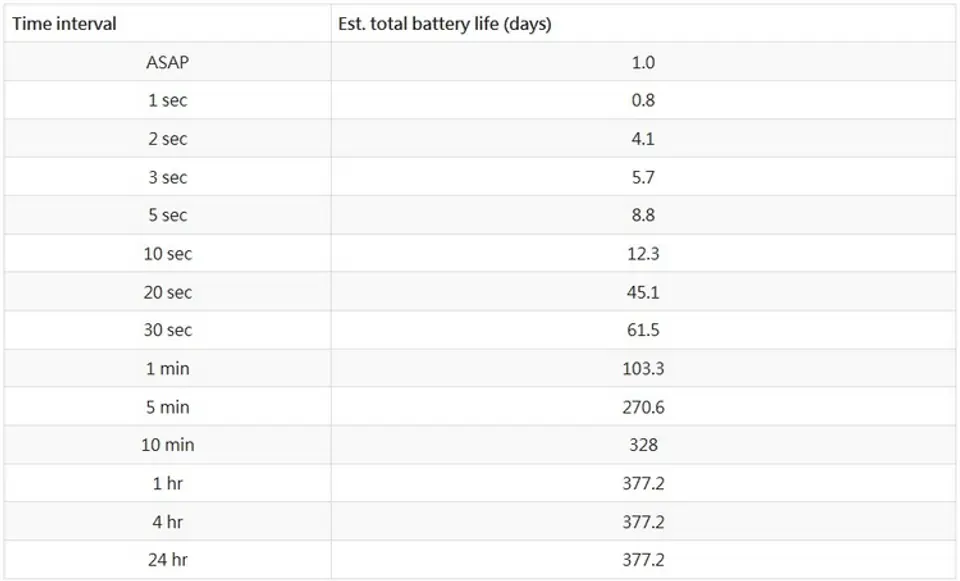

Battery life (using 16 additional ones from the ATH2000 case bank) when setting the scenery DAY:

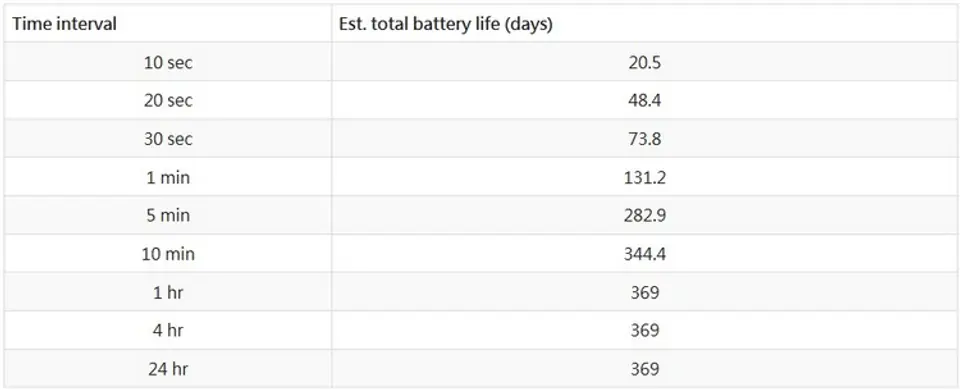

Battery life (using 16 additional ones from the ATH2000 case bank) when setting the TWILIGHT scene:
Battery life (using 16 additional ones from the ATH2000 case bank) when setting the NOC scene:

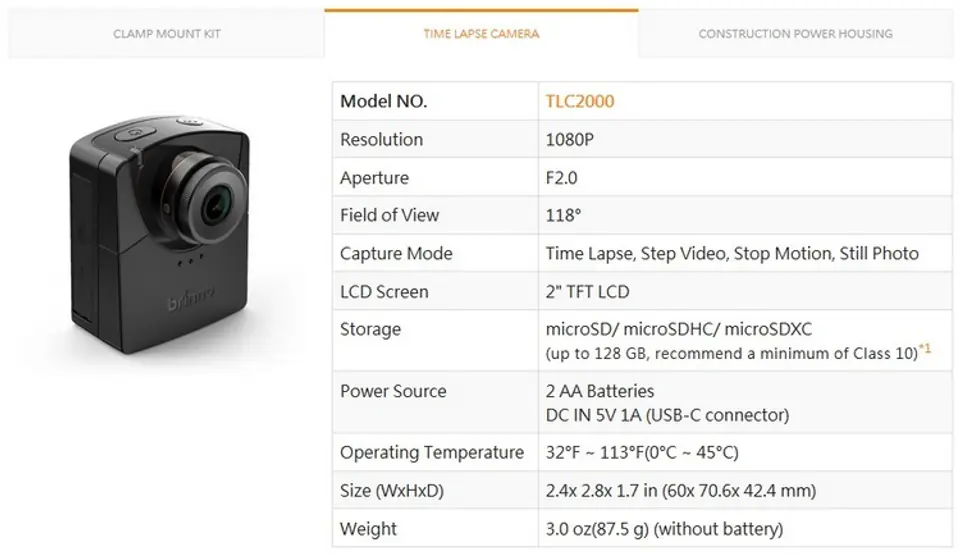

SPECIFICATION:

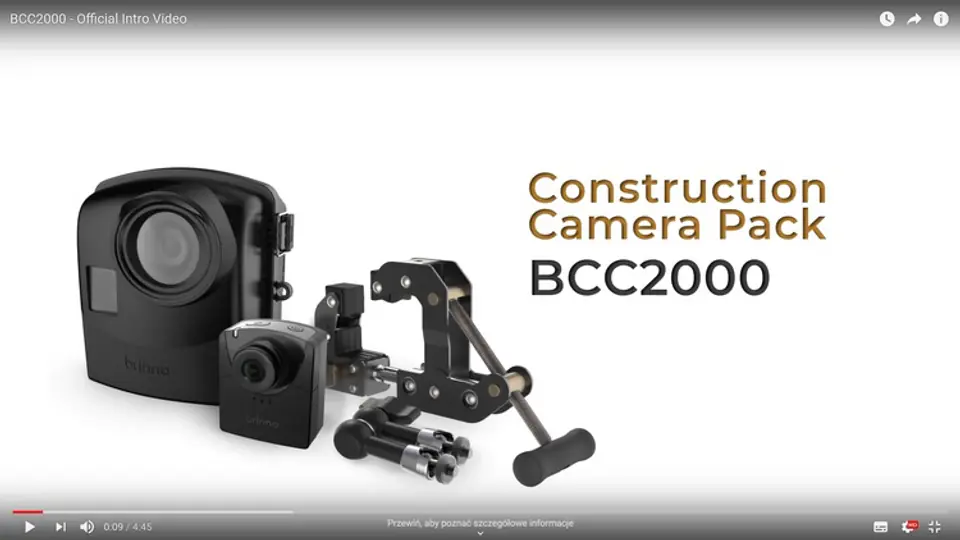

VIDEO PRESENTING THE BRINNO BCC2000 CONSTRUCTION KIT:
VIDEO ADVERTISING THE BRINNO BCC2000 CONSTRUCTION KIT:
LATEST SOFTWARE (STABILITY IMPROVEMENT): https://dmtrade.pl/katalogi/brinno/tlc2000/tlc2k_ns.RCF
INSTRUCTIONS FOR UPLOADING THE SOFTWARE: https://dmtrade.pl/katalogi/brinno/tlc2000/tlc2k_fu.pdf
