The branch board is used to connect the wires in the installation boxes.
20x1 mm2, 15x1.5 mm2, 10x2.5 mm2
20x1 mm2, 15x1.5 mm2, 10x2.5 mm2

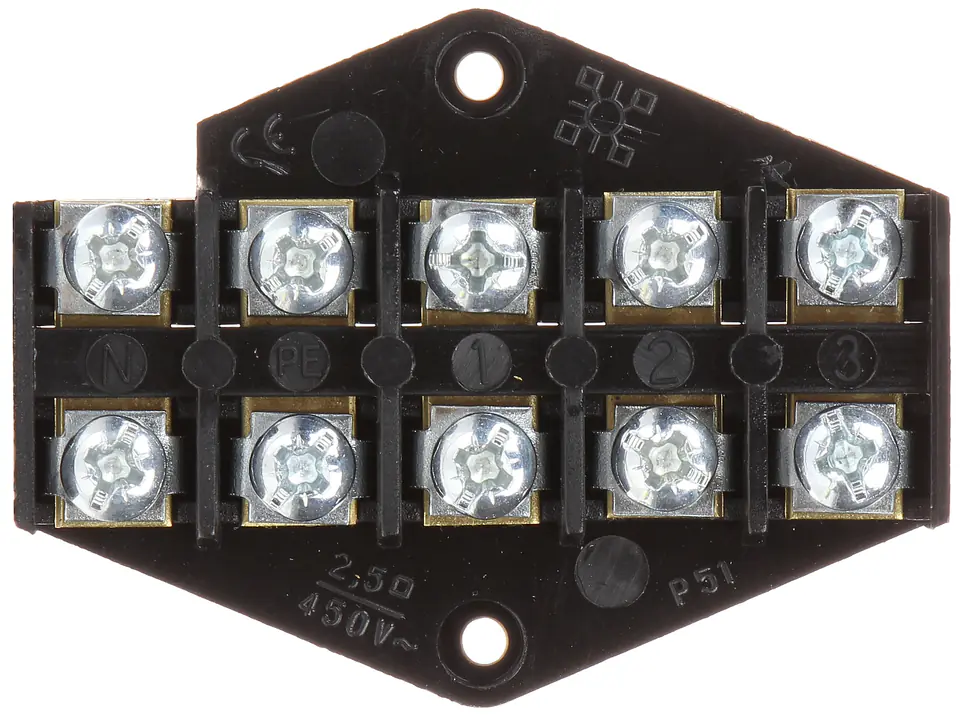

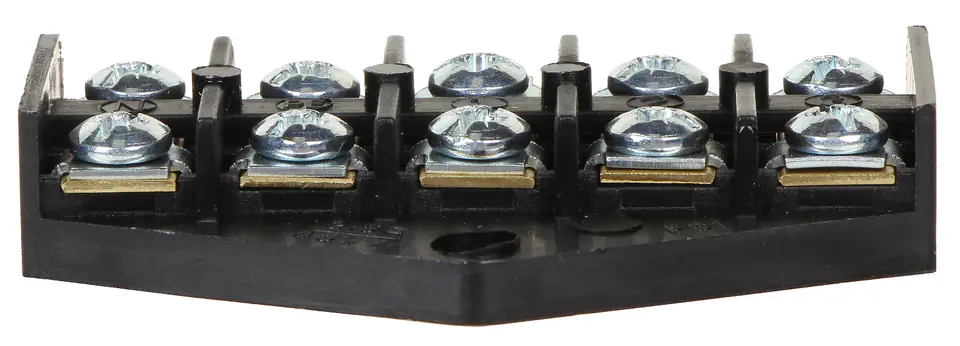

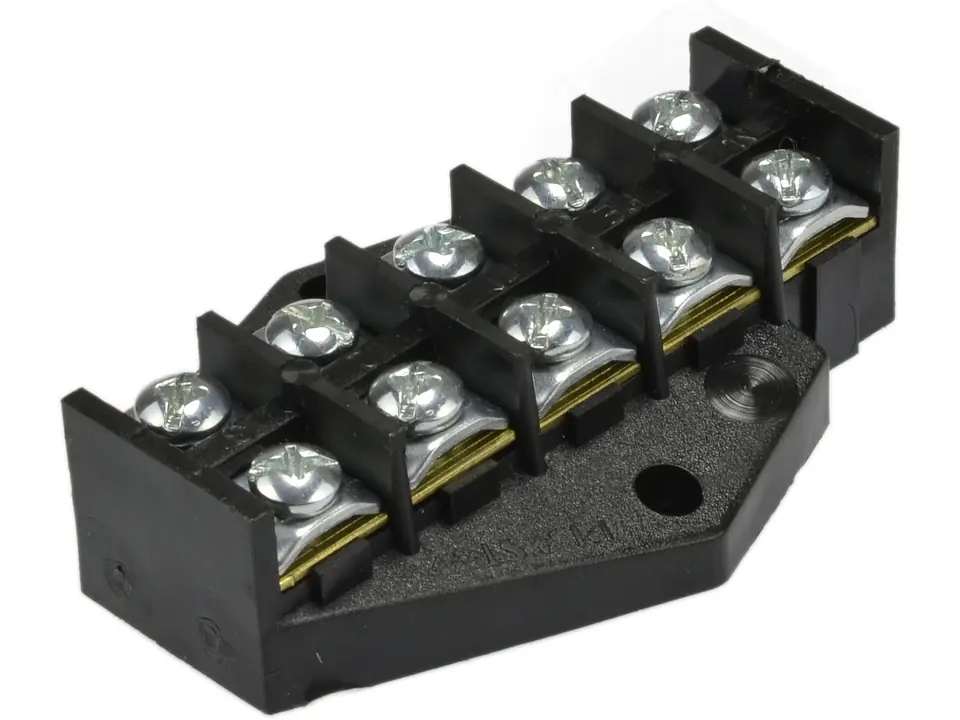

BRANCH PLATE ZPT/2,5MM2 5-LANE BLACK 83002007
€1.80
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Simet
- Product code:
- KE-ZPT5-2.5 / 5906715923533
Share this product:
Specification
| Colour: | Black |
|---|---|
| Connection position: | Side / side |
| Cross-section of the connected cable without sleeve terminal [mm2] from: | 1 |
| Cross-section of the connected cable without sleeve terminal [mm2] to: | 2,5 |
| Cross-section of the connected multicore cable [mm2] from: | 1 |
| Cross-section of the connected multicore cable [mm2] to: | 2,5 |
| Cross-section of the connected single-wire cable [mm2] from: | 1 |
| Cross-section of the connected single-wire cable [mm2] to: | 2,5 |
| Electrical connection type 1: | Screw connection |
| Electrical connection type 2: | Screw connection |
| Explosion-proof version "eex e": | No |
| Height at the lowest mounting method [mm]: | 64 |
| Length [mm]: | 39 |
| Mounting method: | Direct mounting |
| Number of poles: | 5 |
| Number of terminals per pole: | 2 |
| Required closing plate: | No |
| Type of insulating material: | Thermoplastic |
| Width / size of pitch [mm]: | 48 |
