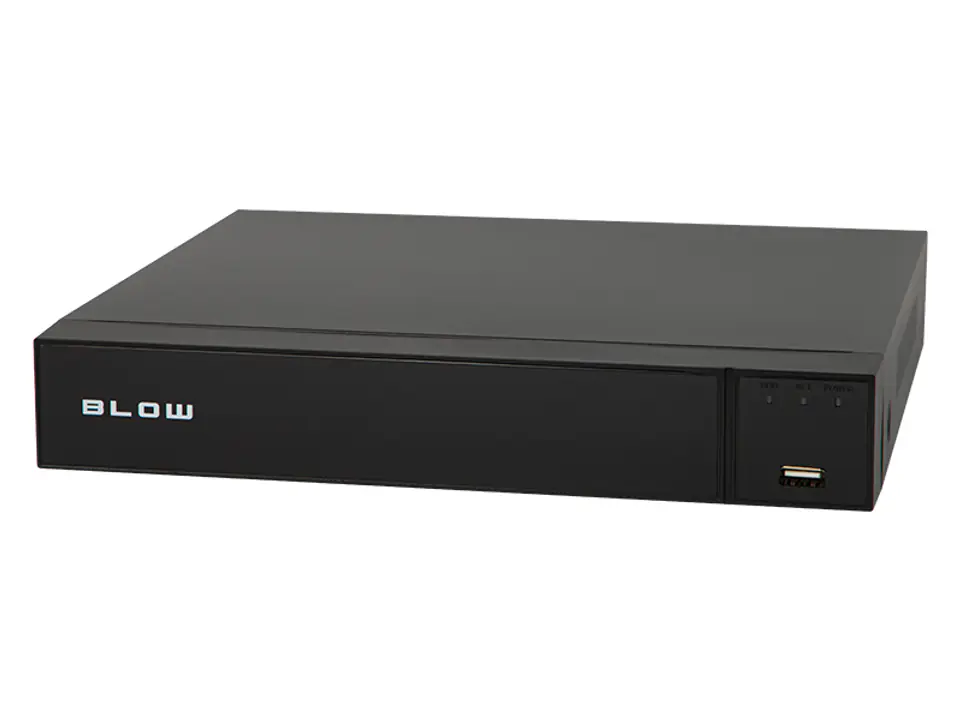

BL-X04051 BLOW DVR
XVR | 4 channels BNC | 9 IP channels | 1 x SATA | max 8TB | ANALOG 5MP | IP 5MP

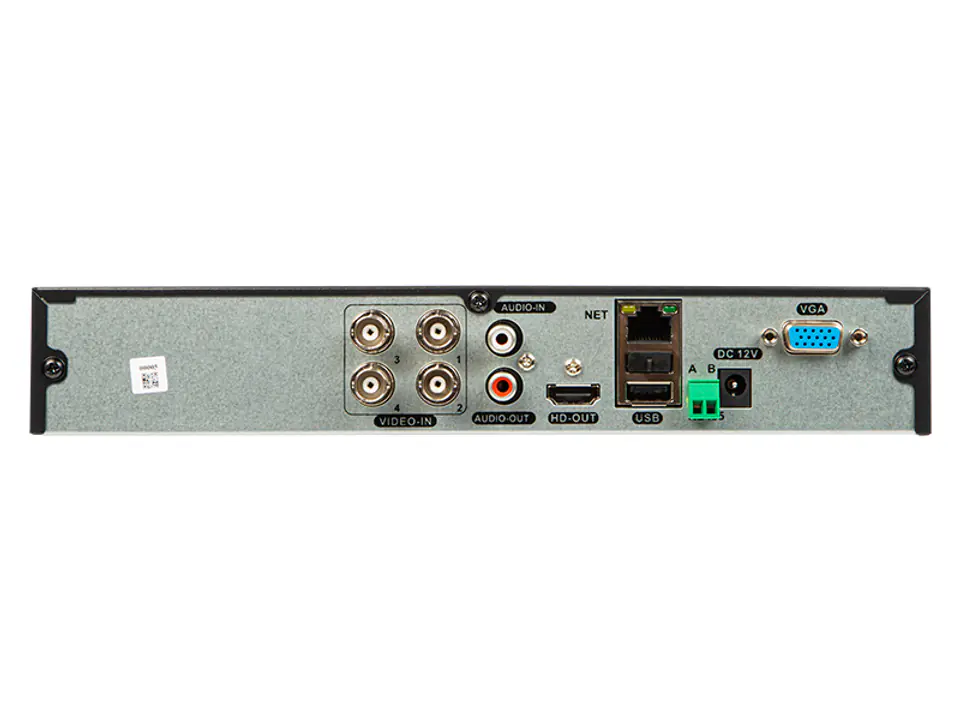

Output connectors: VGA, HDMI, CVBS
Channel Support: 4 Channels BNC | 6 channels in mixed mode 2*Analog + 4*IP (Maximum 2MP) | 9 IP channels
Resolution: Analog: 5MP ; IP: 5MP (For 2MP mixed mode)
Mobile Software : BitVision
PC software: iVMS3200 (Windows 7, 8, 10)
Supported Systems: Analog / AHD / CVI / TVI / IP
Split Screen: 9 channels / 8 channels / 4 channels / 1 channel
Video compression: H.265+ / H.265 / H.264+ / H.264
Audio compression: G711A
P2P cloud: Yes
HDD connector: 1x SATA| max 8TB
Recording:
Analog - Up to 5MP_Lite (1296x1944, 4*8fps)
IP only - 5MP@8 * 25fps, 4MP@9 * 25fps
Backup Mode: USB Device / Network
Onvif: Related to Onvif 2.4:
Technical Details
XVR/NVR - Full manual
Software to search devices in the LAN -Searcher
