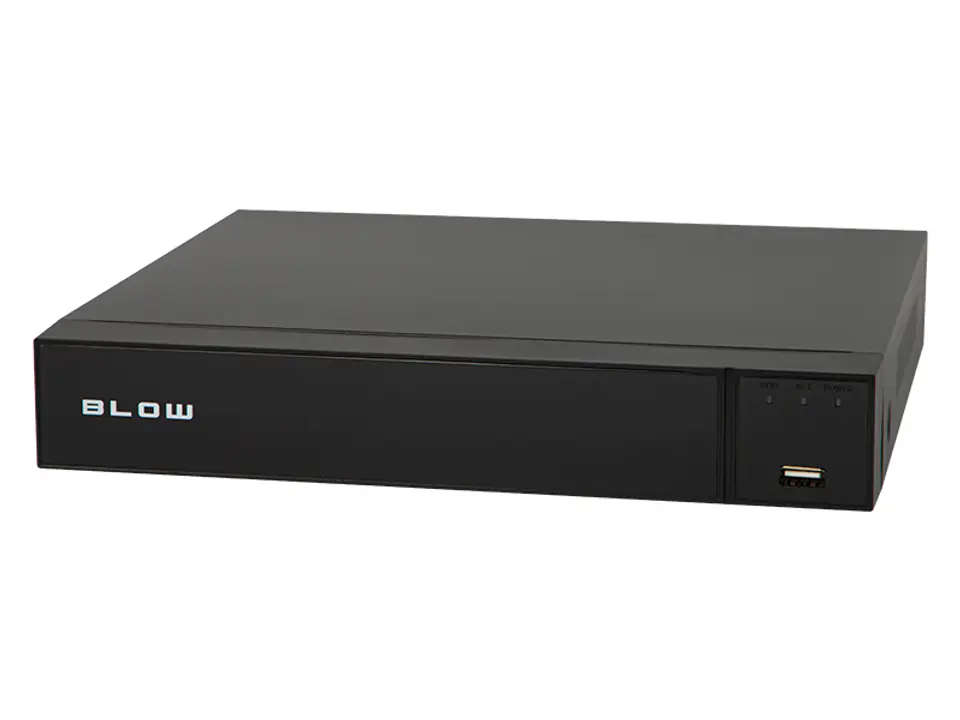

BL-X08051 BLOW Recorder
XVR | 8 channels BNC | 16 IP channels | 1 x SATA | max 8TB | ANALOG 5MP | IP 5MP

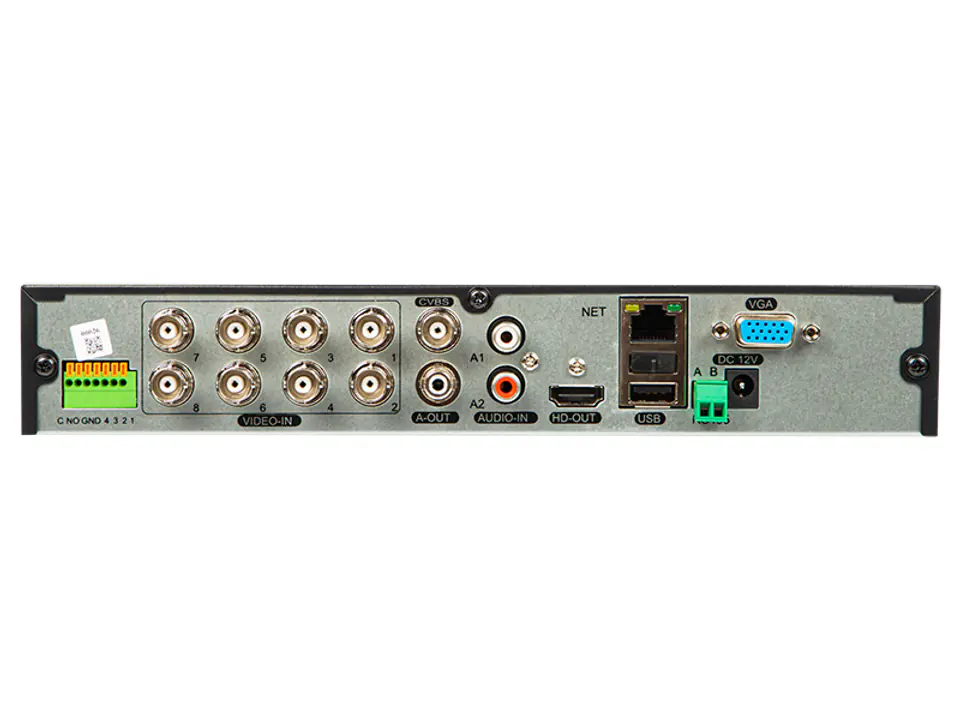

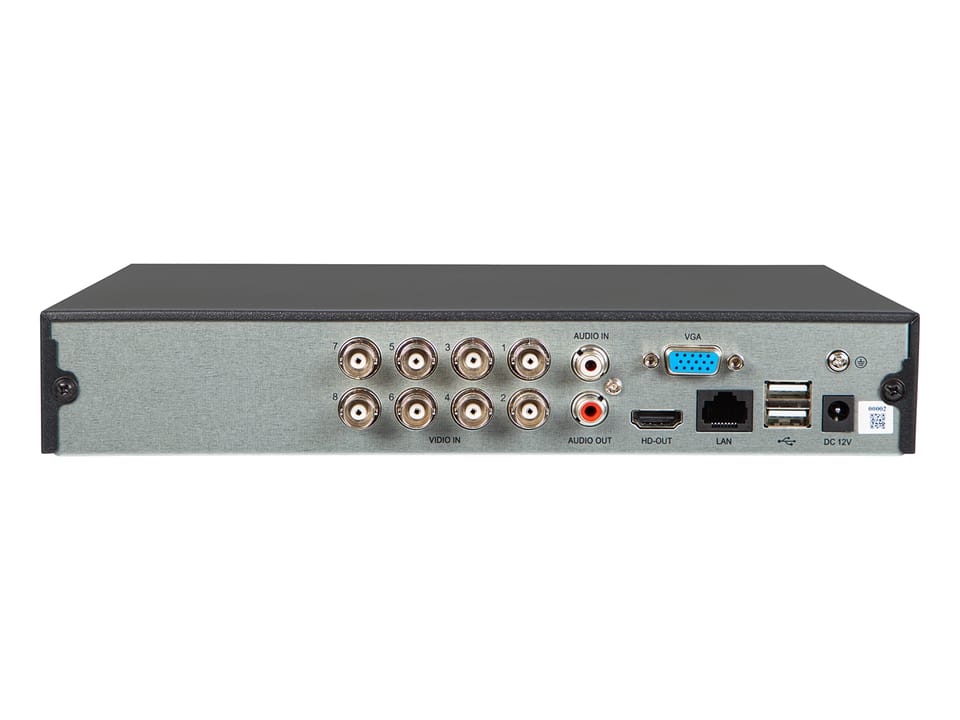

Output connectors: VGA, HDMI, CVBS
Channel support:
Analog mode - Analog: 8*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analogue: 960H)
Mixed Mode - 2*Analog(5MP)+7*IP(MAX 5MP), 4*Analog(5MP)+5*IP(MAX 5MP), 6*Analog(5MP)+3*IP(MAX 5MP)
Network Mode - 16*5MP/4MP/3MP/1080P/960P/720P(Total bandwidth ≤48M)
Resolution: Analog: 5MP ; IP: 5MP
Mobile Software : BitVision
PC software: iVMS3200 (Windows 7, 8, 10)
Supported Systems: Analog / AHD / CVI / TVI / IP
Split Screen: 9 channels / 8 channels / 4 channels / 1 channel
Video compression: H.265+ / H.265 / H.264+ / H.264
Audio compression: G711A
P2P cloud: Yes
HDD connector: 1x SATA| max 8TB
Recording:
Analog - Maximum 5MP_Lite
Only IP (PAL) - 8×25fps, 4MP@12x25fps, 3MP@12×25fps, 1080P@12×25fps, 960P@12×25fps, 720P@12×25fps, D1@12×25fps
Backup Mode: USB Device / Network
Onvif: Related to Onvif 2.4:
Technical Details
XVR/NVR - Full manual
Software to search devices in the LAN -Searcher
