GENIUS Blizzard 500 ENC drive up to 500 kg
DRIVE FOR SLIDING GATES
Built-in encoder - anti-crush protection
230V powered drive for gates up to 500
Robust internal gearbox
Magnetic limit switches
Electronic control panel with transparent plastic housing and external programming buttons
Large selection of operating logic and operating parameters
Compact dimensions
Large space inside the drive for easier connection adjustment of the height and depth of the drive.
Technical Specifications
Power supply (V): 230
Thermal protection (°C): 140 (self-aligning)
Capacitor (μF): 10
Rack and pinion gear type: Z16 mod.4
Speed (m/min): 12
Frequency of use at 20°C: S3 – 30%
Operating environment temperature (°C): -20 +55
Protection class: IP44
Weight (kg): 9

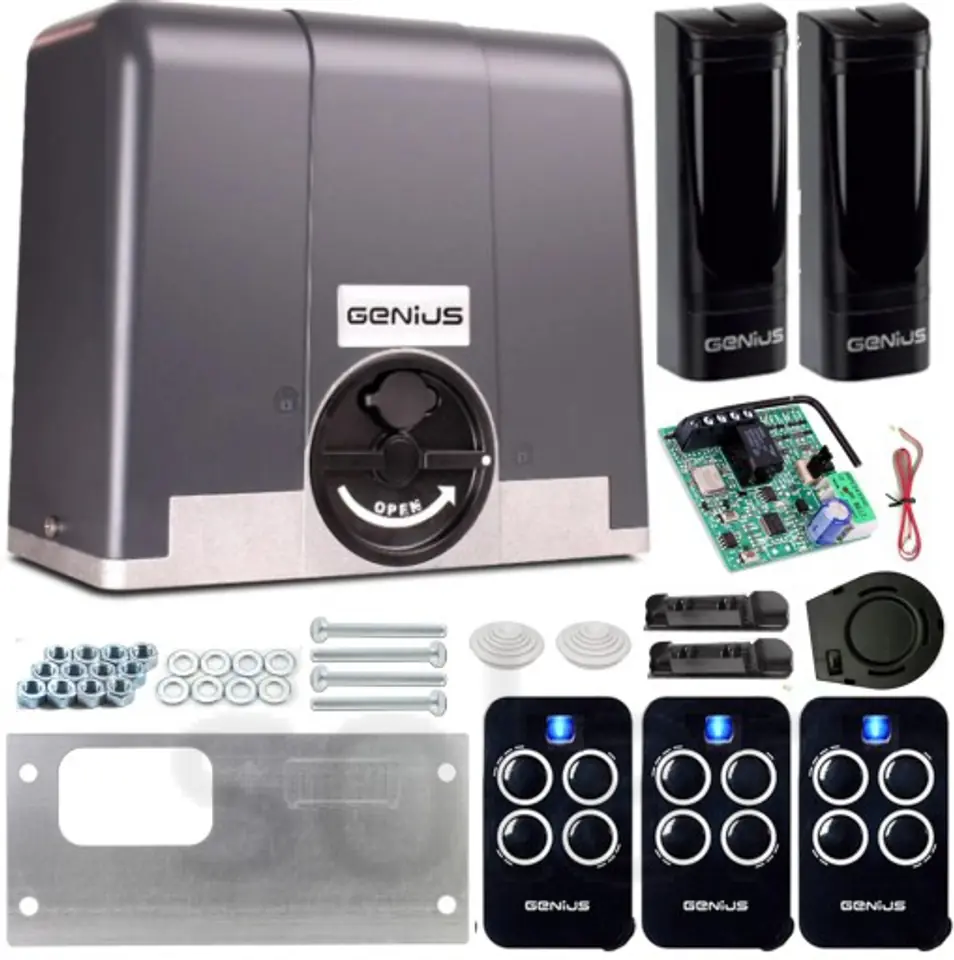

Composition of the set:
61100821 Blizzard ENC 500 electromechanical drive with Sprint 382 control panel -1pcs
737000 Mounting base for nap. BLIZZARD -1pcs
6100334 Remote Control 4-channel ECHO TX4 RC -3pcs
6100147 Pair of photocells VEGA -1pcs
6100355 2-channel radio receiver -1pcs
