Blank of lathe knives HSSE,kszt. L 16x4x200mm Index WILKE

€85.22
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Apr 22 - Fri, Apr 25
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
WILKE
Product code:
05INDEX1604200 / 4030456118239

Specification

H x b:16 x 4 mm
No:05INDEX1604200
Overall length:200 mm

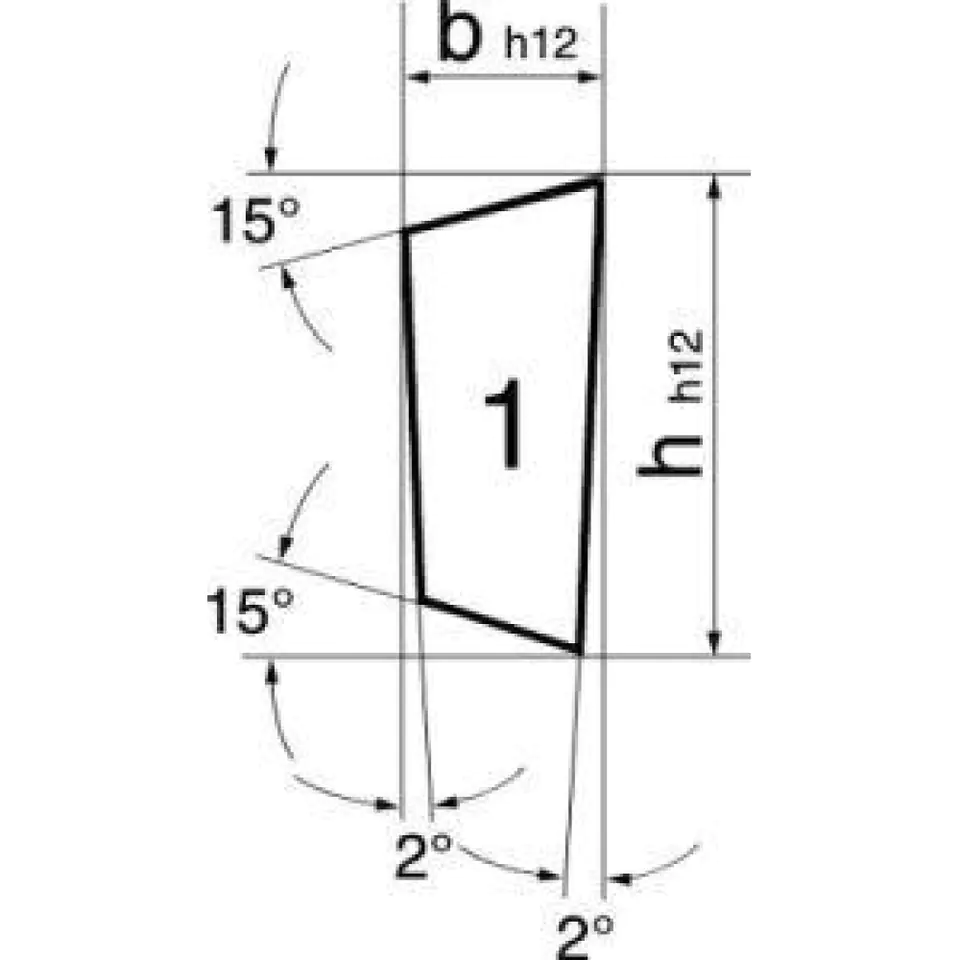

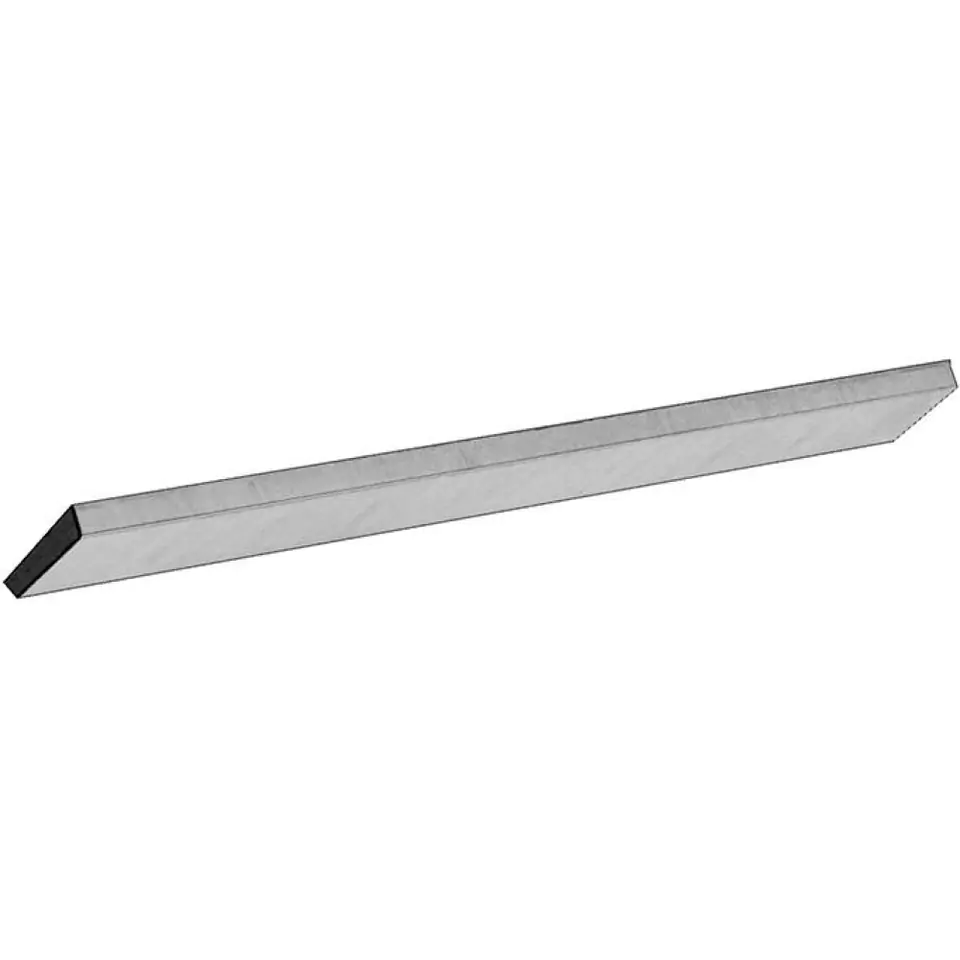

Lathe knife blank, L1 shape, double trapezoid

Execution: HSS Co10, according to the factory standard, hardened, tempered, dimensionally stable, ground ready. Straight and unprocessed endings.
Hardness approx. 63–68 HRC.
Tolerance for L1 shape: length: ±2 mm
Cross-Section: H12/H12

Application: thanks to proper grinding, it is suitable as a cutter bar for the production of tools and molds.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
