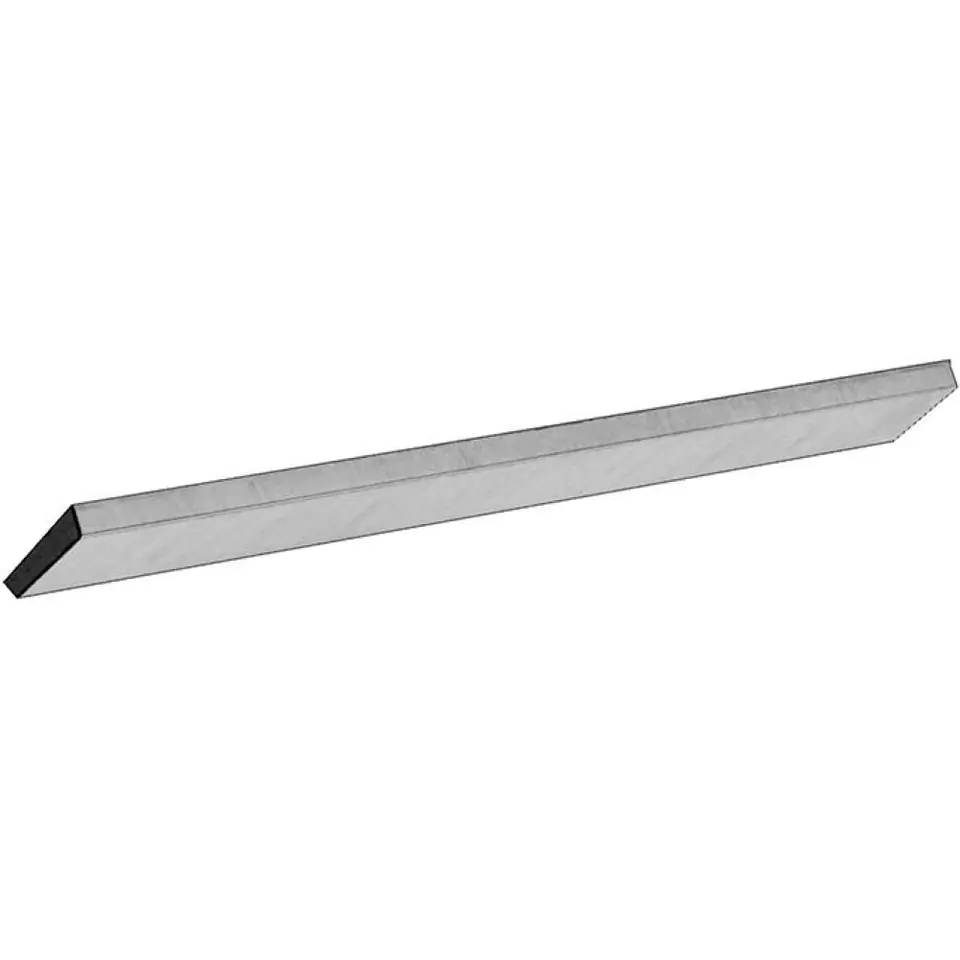

Blank of lathe knives HSSE,kszt. L 12x3x85mm Index WILKE

€24.58
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
WILKE
Product code:
05INDEX1203085 / 4030456117799

Specification

H x b:12 x 3 mm
No:05INDEX1203085
Overall length:85 mm

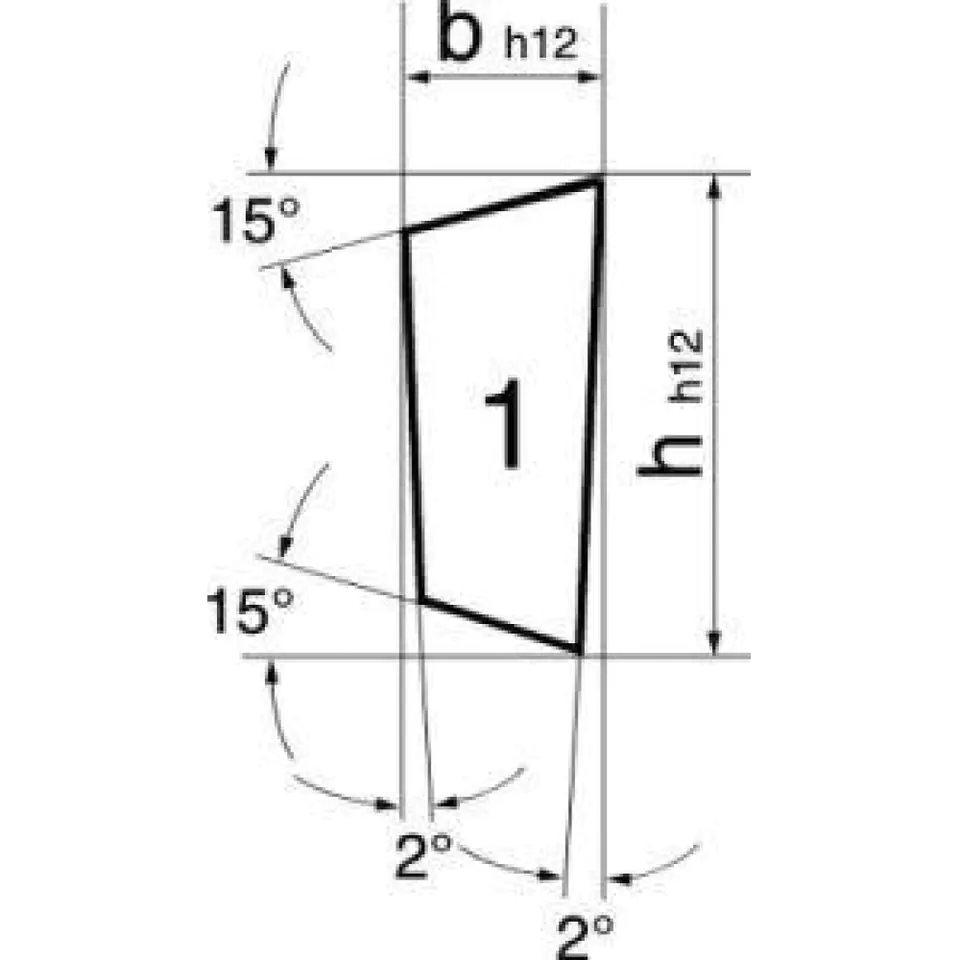

Lathe knife blank, L1 shape, double trapezoid

Execution: HSS Co10, according to the factory standard, hardened, tempered, dimensionally stable, ground ready. Straight and unprocessed endings.
Hardness approx. 63–68 HRC.
Tolerance for L1 shape: length: ±2 mm
Cross-Section: H12/H12

Application: thanks to proper grinding, it is suitable as a cutter bar for the production of tools and molds.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
