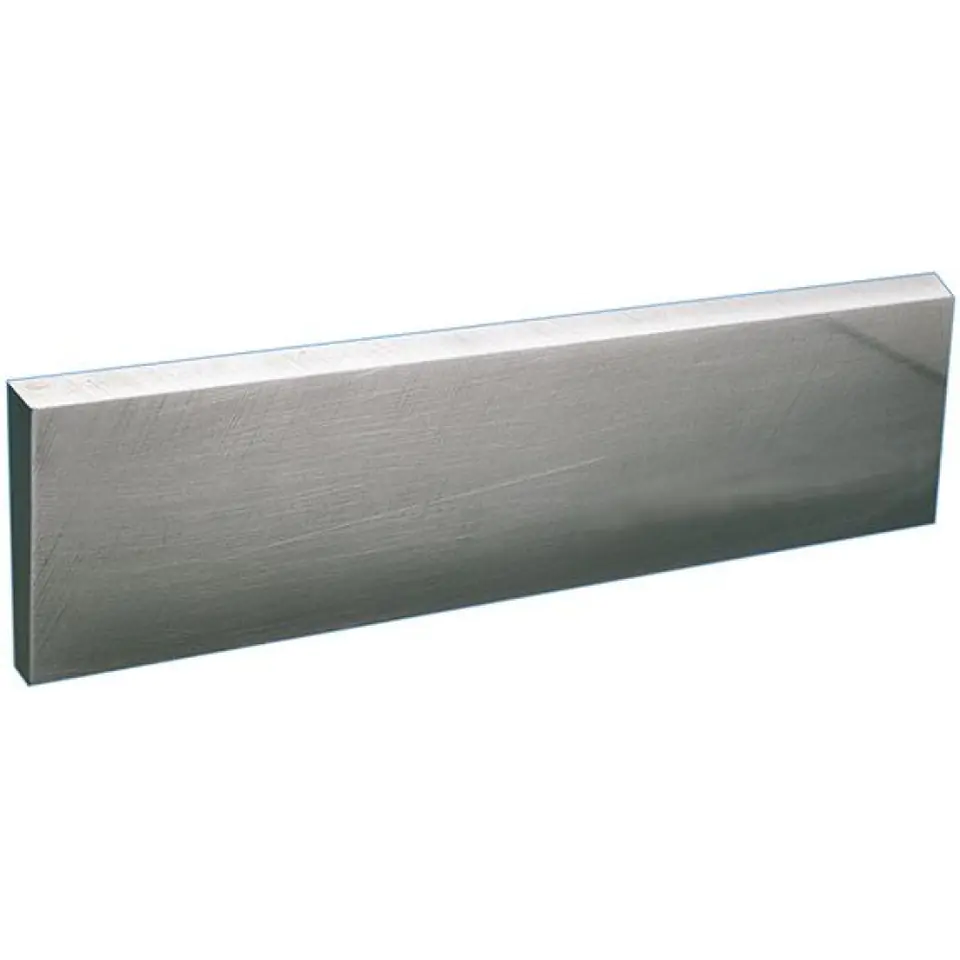

Blank of lathe knives HSSE,kszt. E 20x5x160mm trapezoid WILKE

€77.64
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
WILKE
Product code:
054964E2005160 / 4030456112770

Specification

H x b:20 x 5 mm
No:054964E2005160
Overall length:160 mm

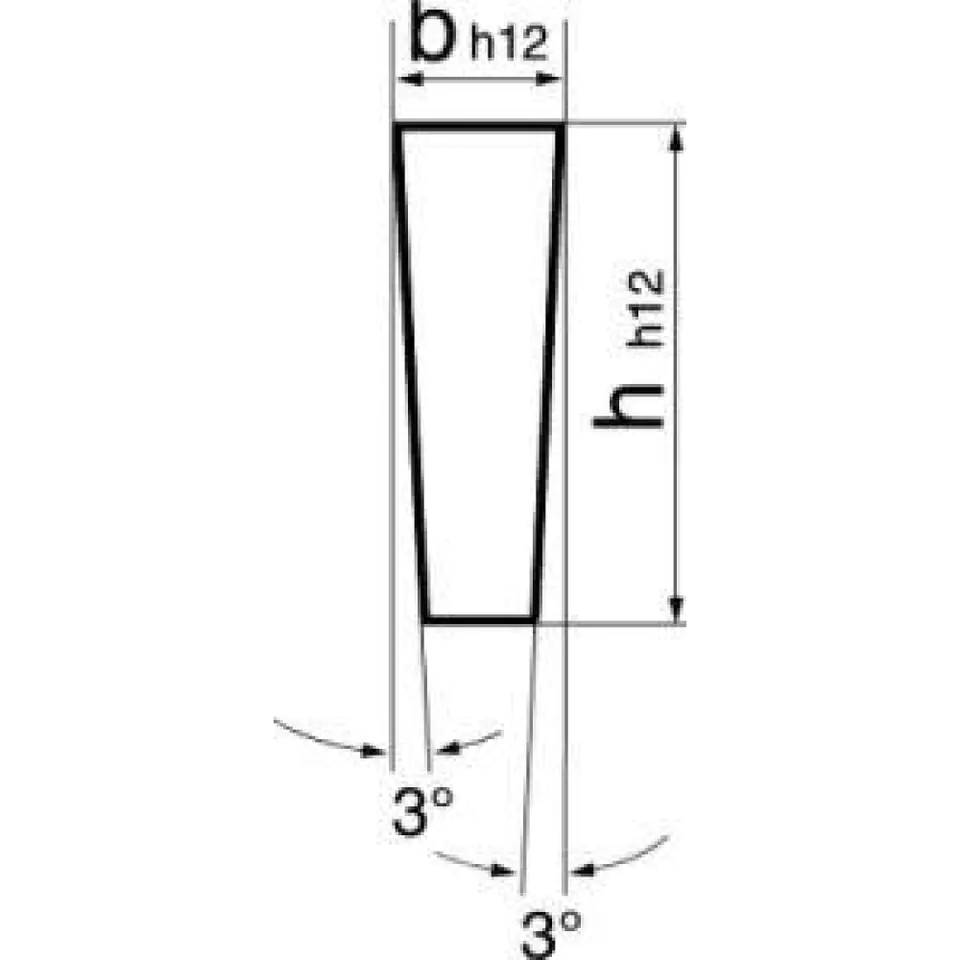

Lathe knife blank, E-shaped, trapezoid

Execution: HSS Co10, DIN 4964 or ISO 5421, hardened, tempered, dimensionally stable and ground ready. Straight and unprocessed endings.
Hardness approx. 63–68 HRC.
for E-shape: length: ±2 mm
Cross-Section: H12/H12

Application: thanks to proper grinding, it is suitable as a cutter bar for the production of tools and molds.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
