Blank of lathe knives HSSE,kszt. E 16x4x100mm trapezoid WILKE

Name: Blank of lathe knives HSSE,kszt. E 16x4x100mm trapezoid WILKE
Brand: WILKE
SKU: 1023521
Price: 47.6 EUR
Availability: InStock

€47.60

Shipping from warehouse: ⁨B6⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: WILKE
Product code:: 054964E1604100 / 4030456112305

Specification

H x b:	16 x 4 mm
No:	054964E1604100
Overall length:	100 mm

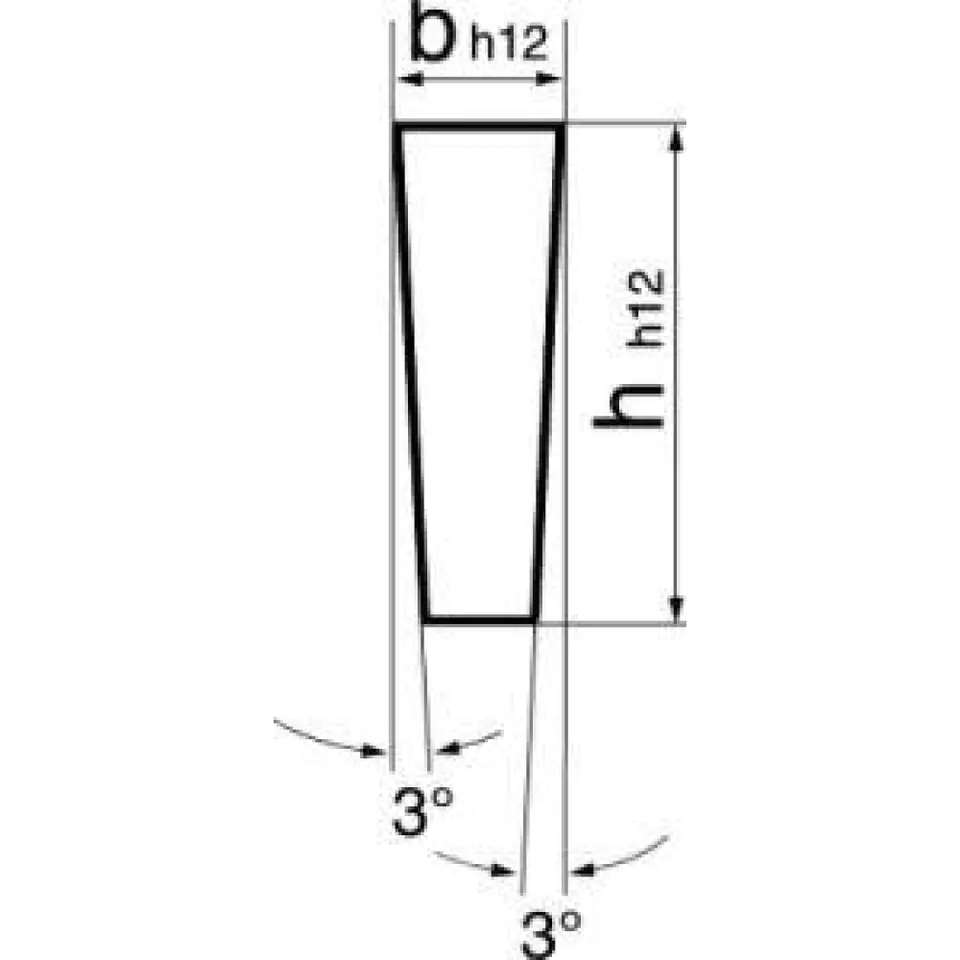

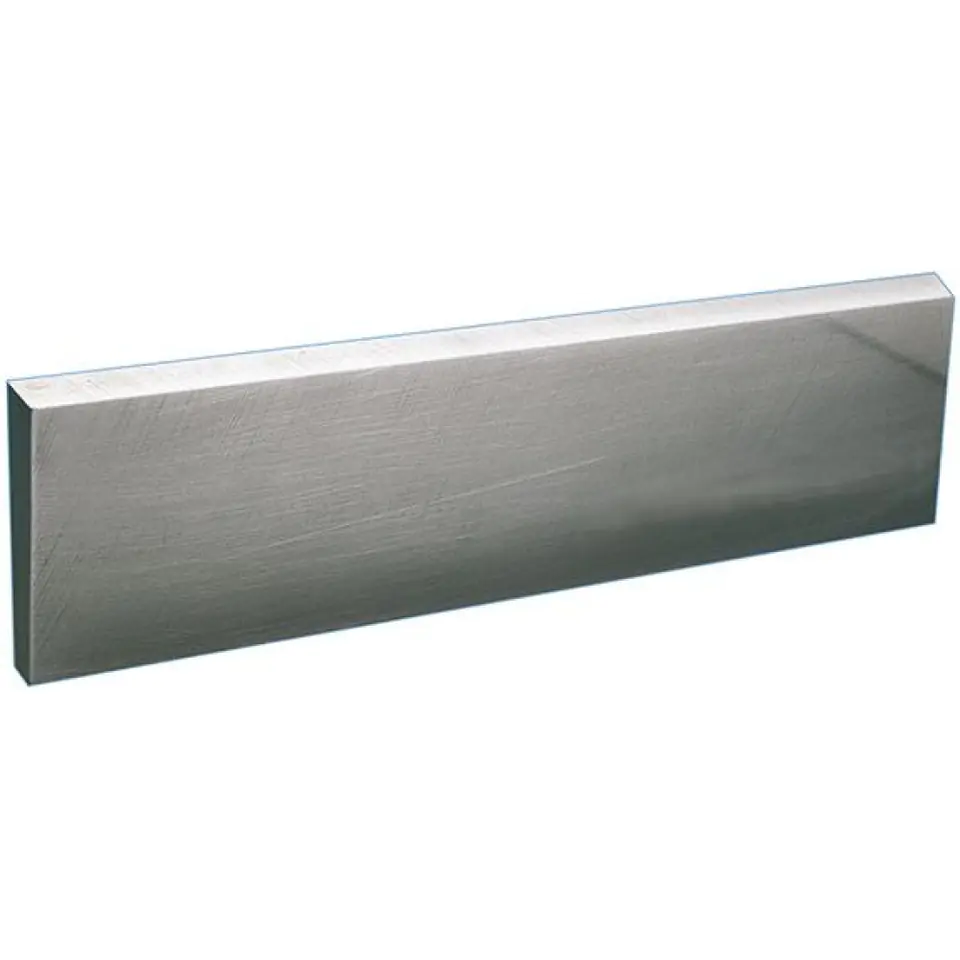

Lathe knife blank, E-shaped, trapezoid

Execution: HSS Co10, DIN 4964 or ISO 5421, hardened, tempered, dimensionally stable and ground ready. Straight and unprocessed endings.
Hardness approx. 63–68 HRC.
for E-shape: length: ±2 mm
Cross-Section: H12/H12

Application: thanks to proper grinding, it is suitable as a cutter bar for the production of tools and molds.
