Blank of lathe knives HSSE,kszt. B 16x16x125mm WILKE

This product is not available
Availability:
expected delivery
Brand:
WILKE
Product code:
054964101616125 / 4030456100135

Specification

H13/h14:16 x 16 mm
No:054964101616125
Overall length:125 mm

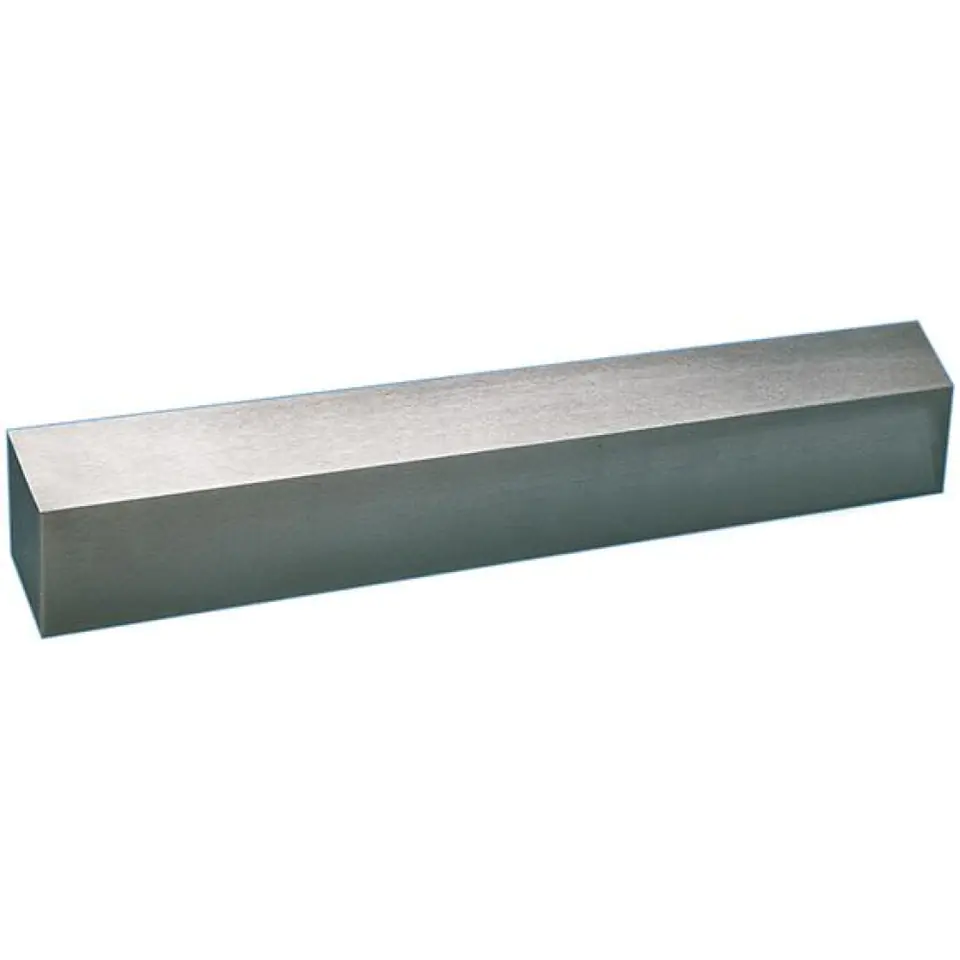

Blank of turning knives, shape B, square

Execution: HSS Co10, DIN 4964 or ISO 5421, hardened, tempered, dimensionally stable and ground ready. Endings perpendicular, straight and unprocessed.
Hardness approx. 63–68 HRC.
for shape B: length: ±2 mm
Cross-Section: H13/H14

Application: thanks to proper grinding, it is suitable for use as a lathe knife for boring, engraving and copying in the production of tools and molds.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
