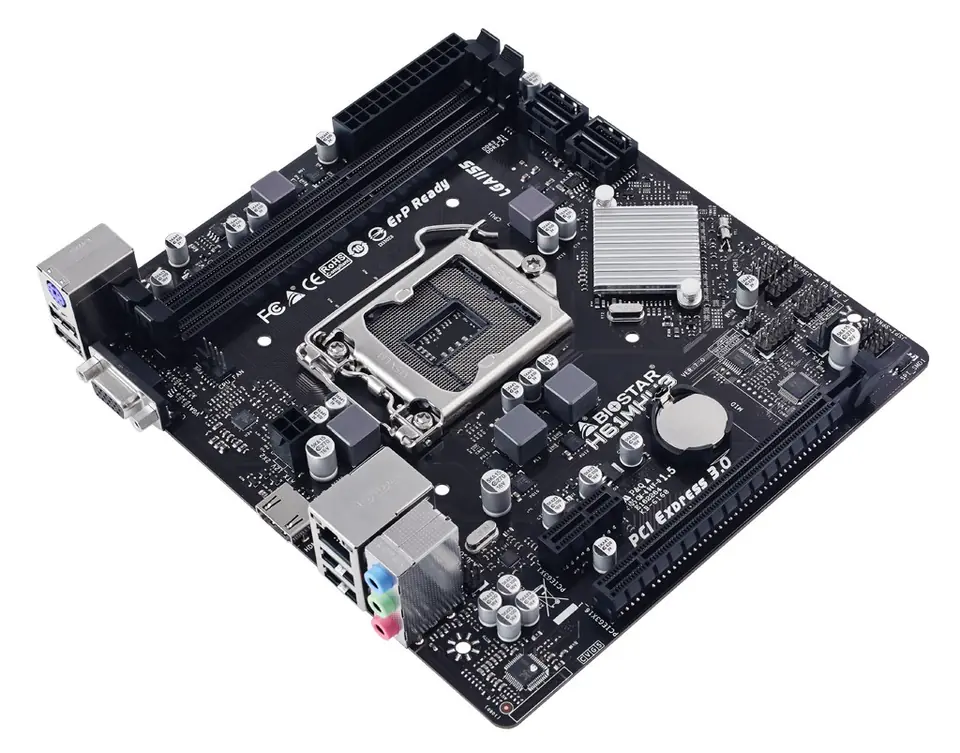

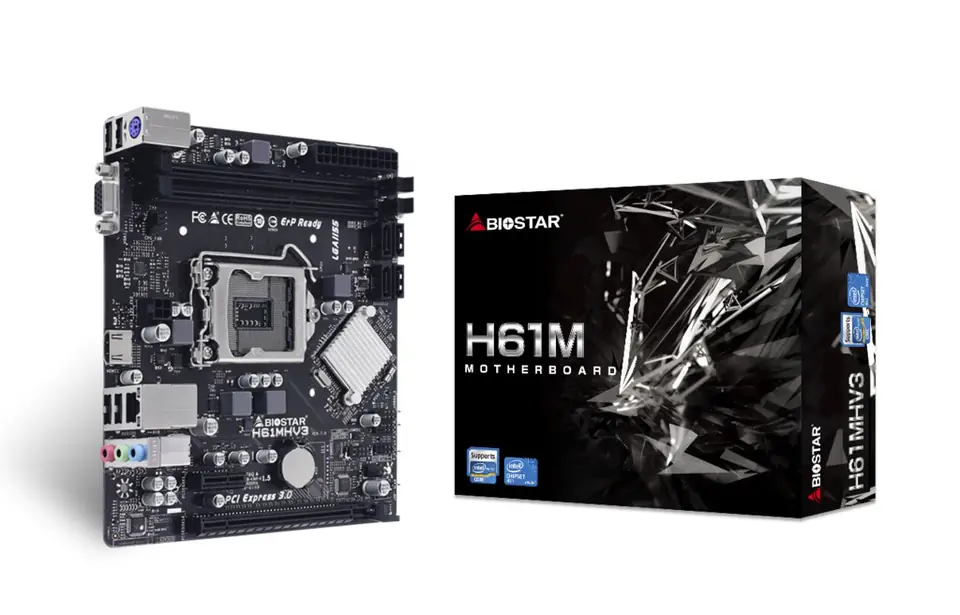

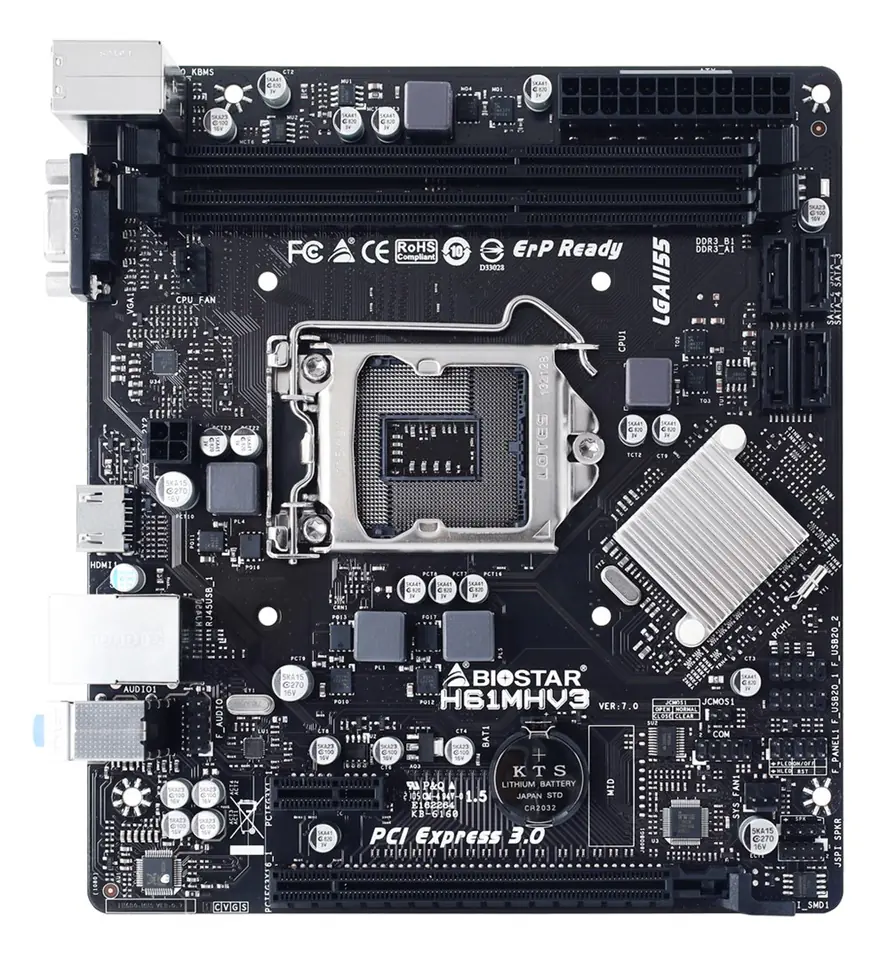

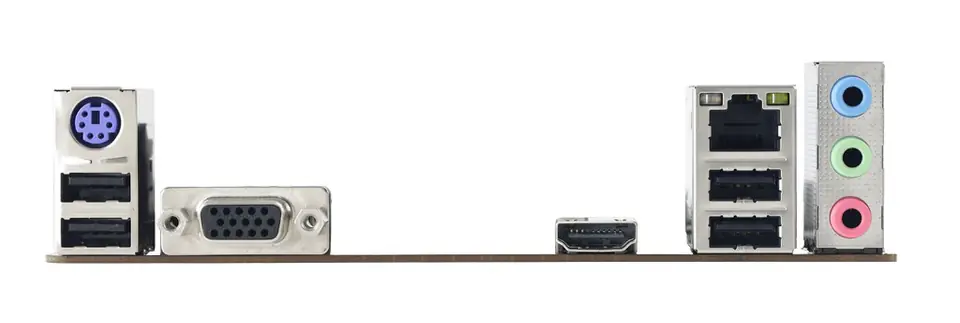

Biostar H61MHV3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
€82.88
Shipping from warehouse: A3
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Biostar
- Product code:
- H61MHV3 / 4712960685208
Share this product:
Specification
| Audio chip: | Realtek ALC897 |
|---|---|
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Cables included: | SATA |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3 |
| Cpu fan connector: | Yes |
| Drivers included: | Yes |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 3 |
| Height: | 191 mm |
| Lan controller: | Realtek RTL8111H |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel® H61 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of memory slots: | 2 |
| Number of sata ii connectors: | 4 |
| Number of storage drives supported: | 4 |
| Pc health monitoring: | CPU, Fan, Voltage, Temperature |
| Pci express slots version: | 2.0, 3.0 |
| Pci express x1 (gen 2.x) slots: | 1 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1155 (Socket H2) |
| Ps/2 ports quantity: | 1 |
| Supported memory clock speeds: | 1333, 1600, 1066 |
| Supported memory module capacities: | 1GB, 8GB, 512MB, 16GB, 2GB, 4GB |
| Supported memory types: | DDR3-SDRAM |
| Supported processor sockets: | LGA 1155 (Socket H2) |
| Supported storage drive interfaces: | SATA II |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| User guide: | Yes |
| Vga (d-sub) ports quantity: | 1 |
| Width: | 170 mm |
| Windows operating systems supported: | Windows 7, Windows 8, Windows 8.1, Windows 10 |
