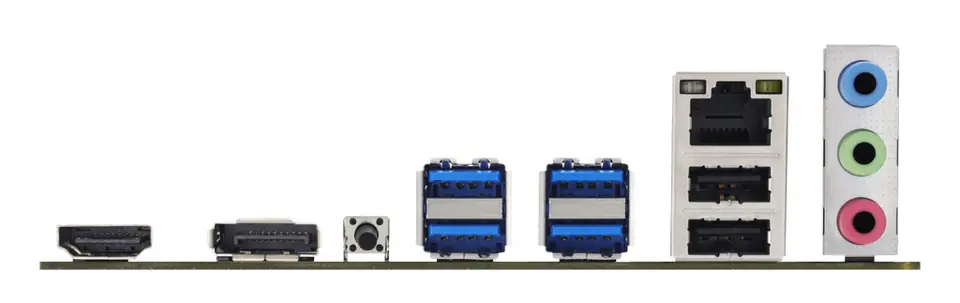

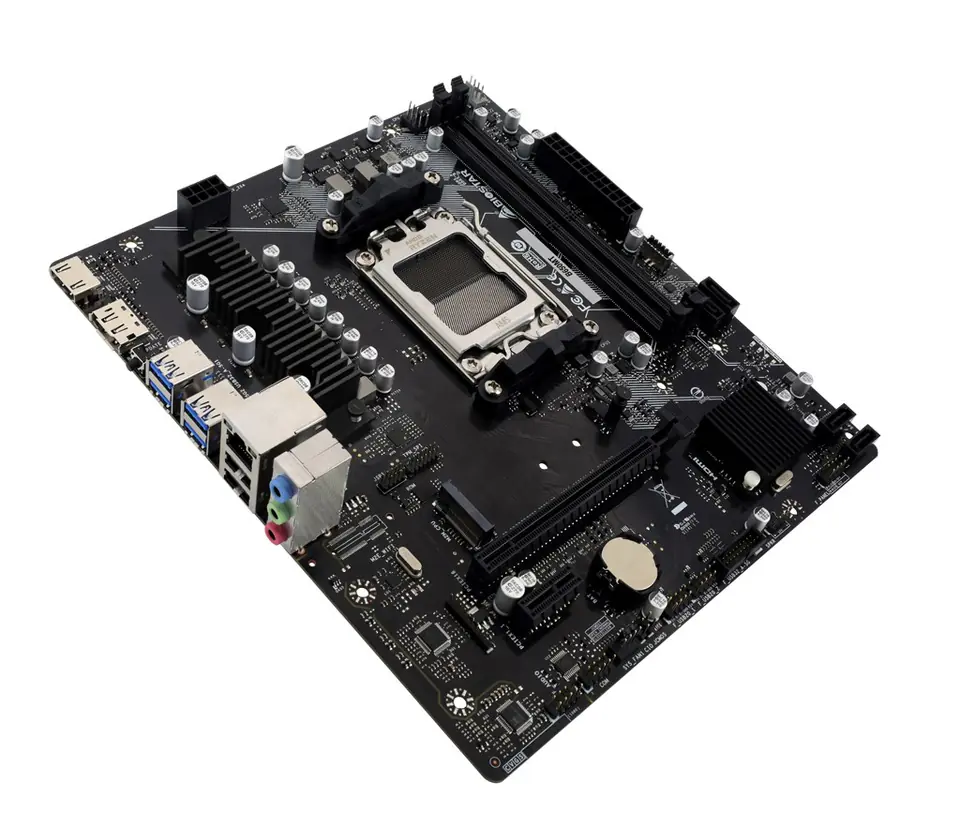

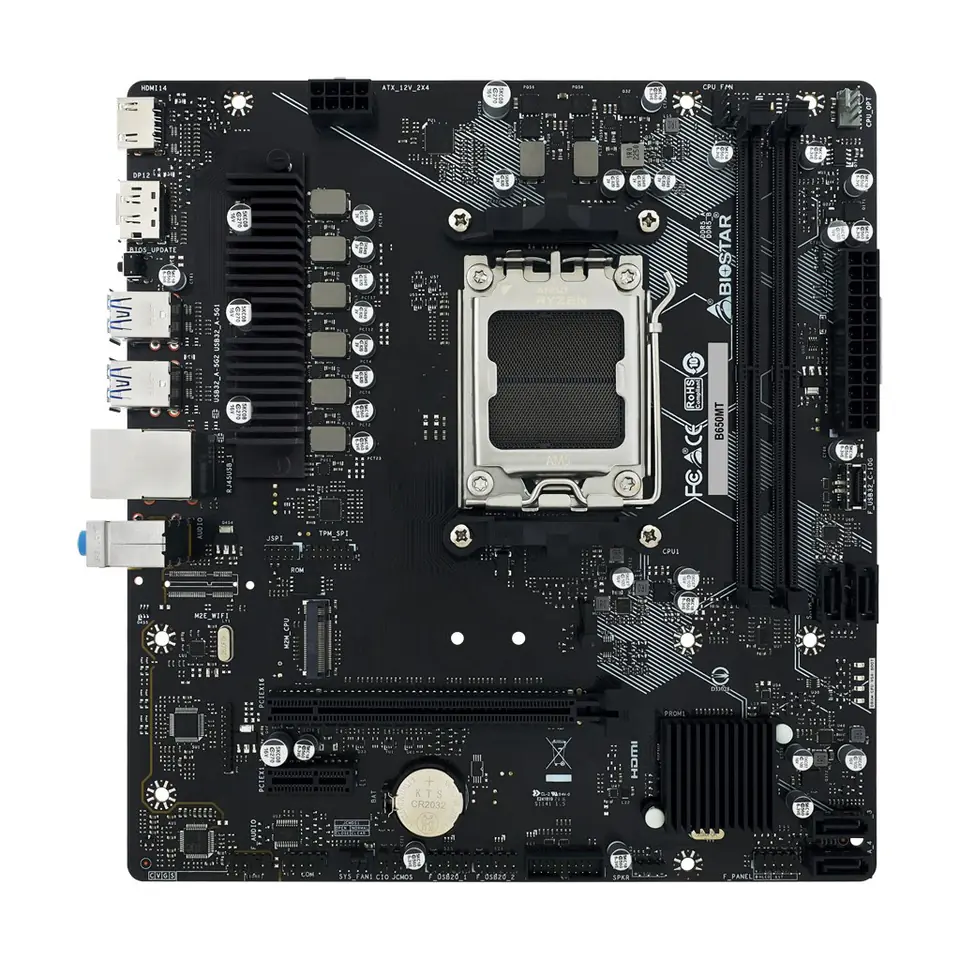

Biostar B650MT motherboard AMD B650 Socket AM5 micro ATX
€102.17
Shipping from warehouse: A3
Estimated shipping: Mon, Sep 23 - Thu, Sep 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Biostar
- Product code:
- B650MT / 4712960687622
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 235 mm |
| Directx version: | 12.0 |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4 |
| Lan controller: | Realtek RTL8111H |
| Maximum internal memory: | 96 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 1 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pc health monitoring: | Temperature, CPU, Voltage, Fan |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Silver, Black |
| Raid levels: | 10, 1, 0 |
| Raid support: | Yes |
| Supported memory clock speeds: | 6000, 4800, 5400, 5200 MHz, 5600 |
| Supported memory module capacities: | 8GB, 48GB, 16GB, 32GB |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Width: | 221 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
