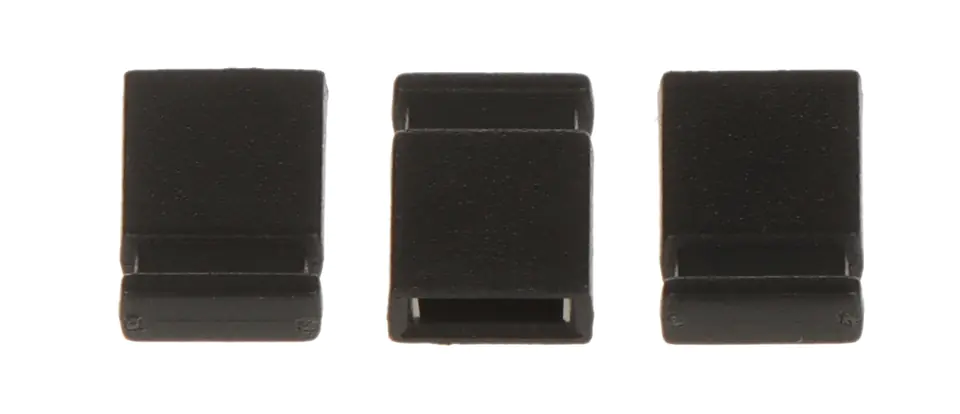

| Alarm output: | NC, EOL - Set with jumpers |
|---|---|
| Colour: | white |

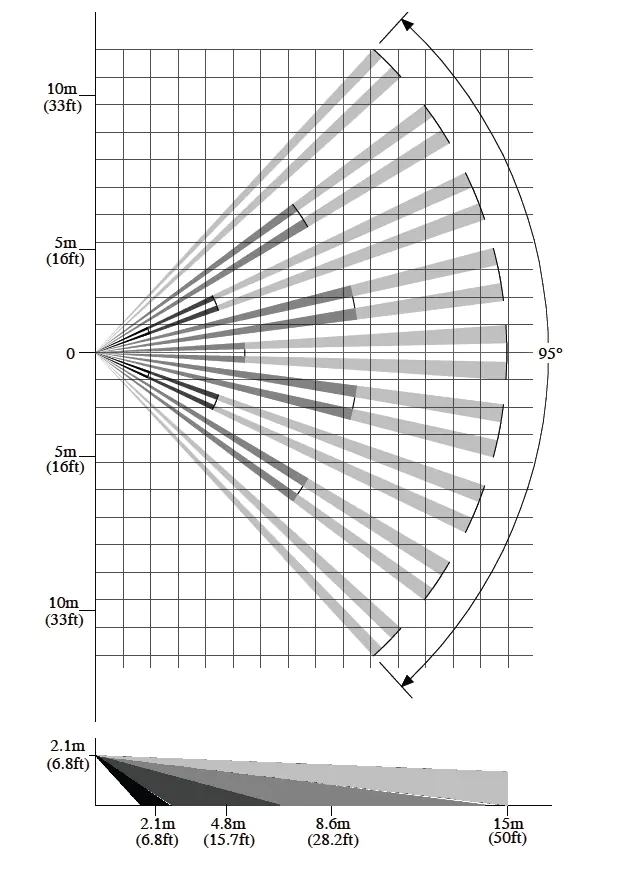

| Detection angle: | 100 ° |
| Dimensions: | 63 x 114 x 40 mm |
| Environmental class: | EN 50131-2-2 Grade 2 |
| Infringement signalling time: | 2 sec |
| Operating temperature: | -20 °C ... 50 °C |
| Power: | 9 ... 15 V DC @ 11 mA / 19 mA (max) |
| Producer / brand: | VIDICON |
| Range: | 15 m |
| Recommended mounting height: | 1.8 ... 2.2 m |
| Resistance to animals: | ≤ 20 kg |
| Scales: | 0.06 kg |
| Selected features: | Digital detector Fresnel lens matrix in LODIFF® technology Fresnel lenses with UV filter - POLY IR® White light filter LED signaling High RF immunity : 30 V/m Pulse counter Built-in EOL parametric resistors Tamper detection - enclosure opening, detachment from the substrate |
| Sensor type: | Passive infrared (PIR) |
| Use: | Internal |
| Warranty: | 2 years |

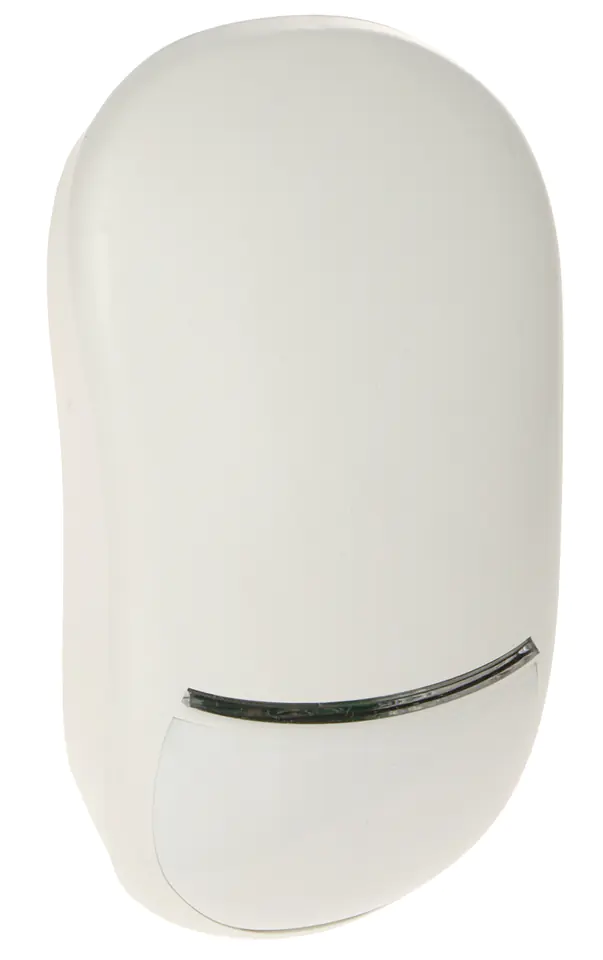

Digital passive infrared detector, resistant to animals weighing up to 20 kg
Thanks to the FULLY digital technology, the detector is much more accurate in detecting intrusion and is not subject to interference such as: white light, ultraviolet light, temperature change, air movement from heating/cooling systems and is completely resistant to electromagnetic radiation.
