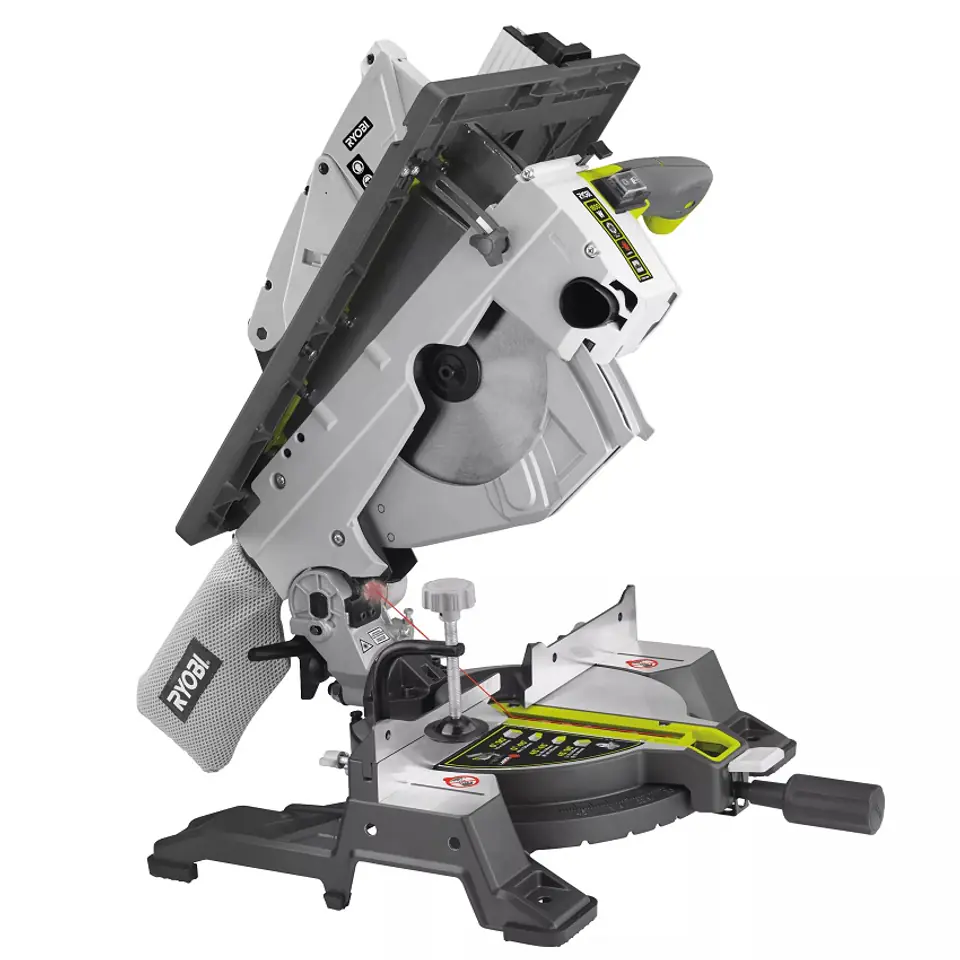

Technical data:
Power: 1800W
Max. cutting depth 0° cutting angle | 45° tilt angle [mm]: 48mm x 130mm
Max. cutting depth 45° cutting angle / 0° angle of inclination [mm]: 70mm x 85mm
Max. Cutting Capacity 0 ° Mitre Mode [mm]: 60
Max. Cutting Capacity 90° Table Mode [mm]: 70 x 130
No-load speed (rpm): 4,800
Dial Hole Diameter (mm): 30
Cutting Disc Diameter (mm): 254
Cutting disc with 48 TCT teeth
Weight (kg): 26.8
Exactline Laser Technology™ - built-in laser for precise cutting
Powerful 1800W motor for greater cutting efficiency
Cast aluminum table increases cutting stability and precision
Light weight and compact shape for easy transport and storage
Ergonomic handle improves work comfort
Soft start of the device increases user safety
Paperboard
Cutting disc with 48 TCT teeth
**
