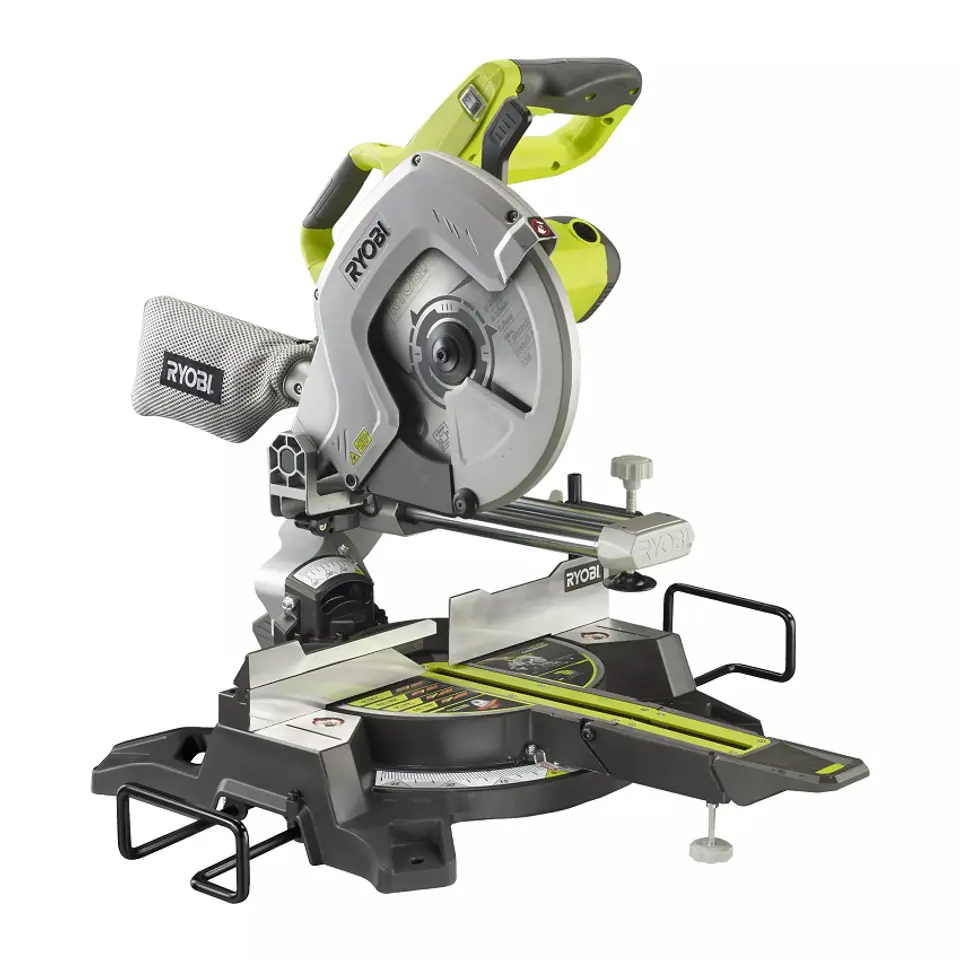

BEVEL SAW EMS254L 2000W

Technical data:

Power: 2000W
Right tilt angle (°): 2
Left tilt angle (°): 47
Left bevel angle (°): 50
Right bevel angle (°): 50
Max. cutting depth 0° cutting angle | 45° tilt angle [mm]: 58mm x 300mm
Max. cutting depth 45° cutting angle / 0° angle of inclination [mm]: 90mm x 200mm
No-load speed (rpm): 4500
Cutting Disc Diameter (mm): 254
Cutting disc with 48 TCT teeth
Cutting capacity bevel 45° / incline 90° (mm): 200x90
Cutting capacity 90° bevel / 45° incline (mm): 300x58
Cutting capacity 90° bevel / 90° incline (mm): 300x90
Weight (kg): 16.2
Noise level error (dB(A)): 3.0
Sound pressure level error (dB(A)): 3.0
Sound pressure level (Lpa)(dB(A)): 95.5
Sound Power Level (LW)(dB(A)): 110.5
Vibration level (m/s2): 1.6

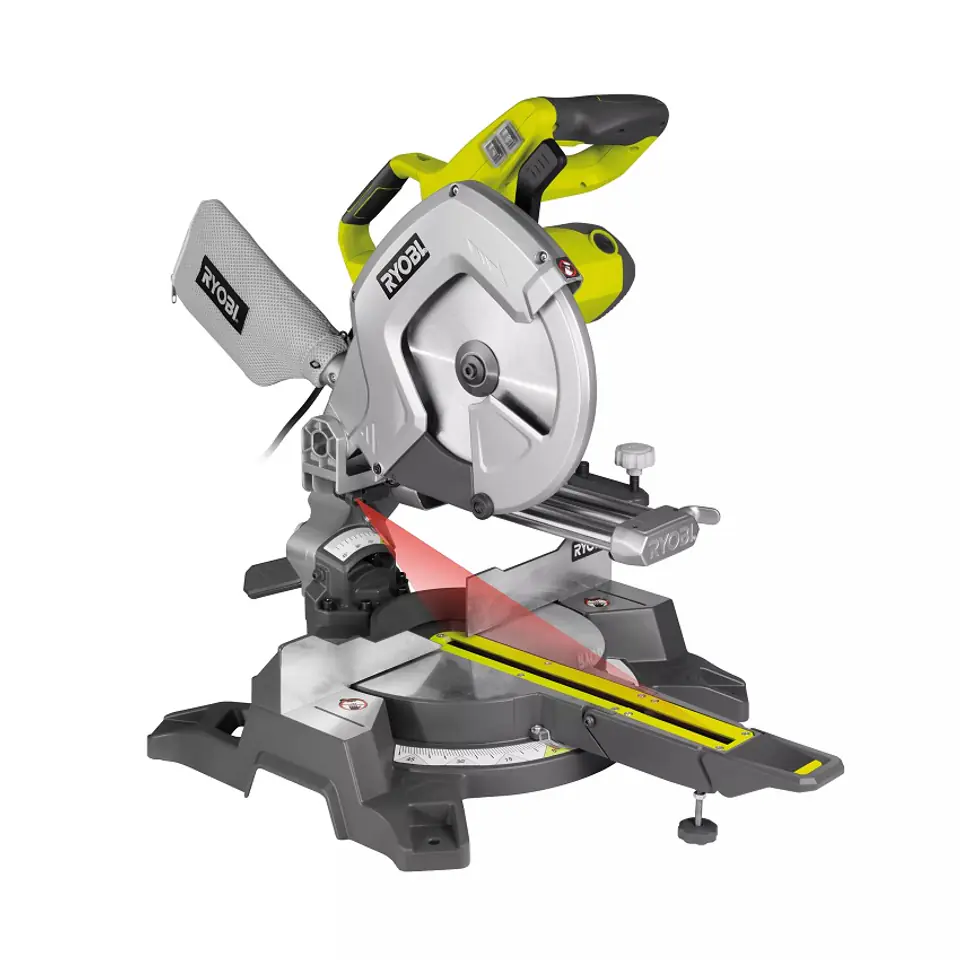

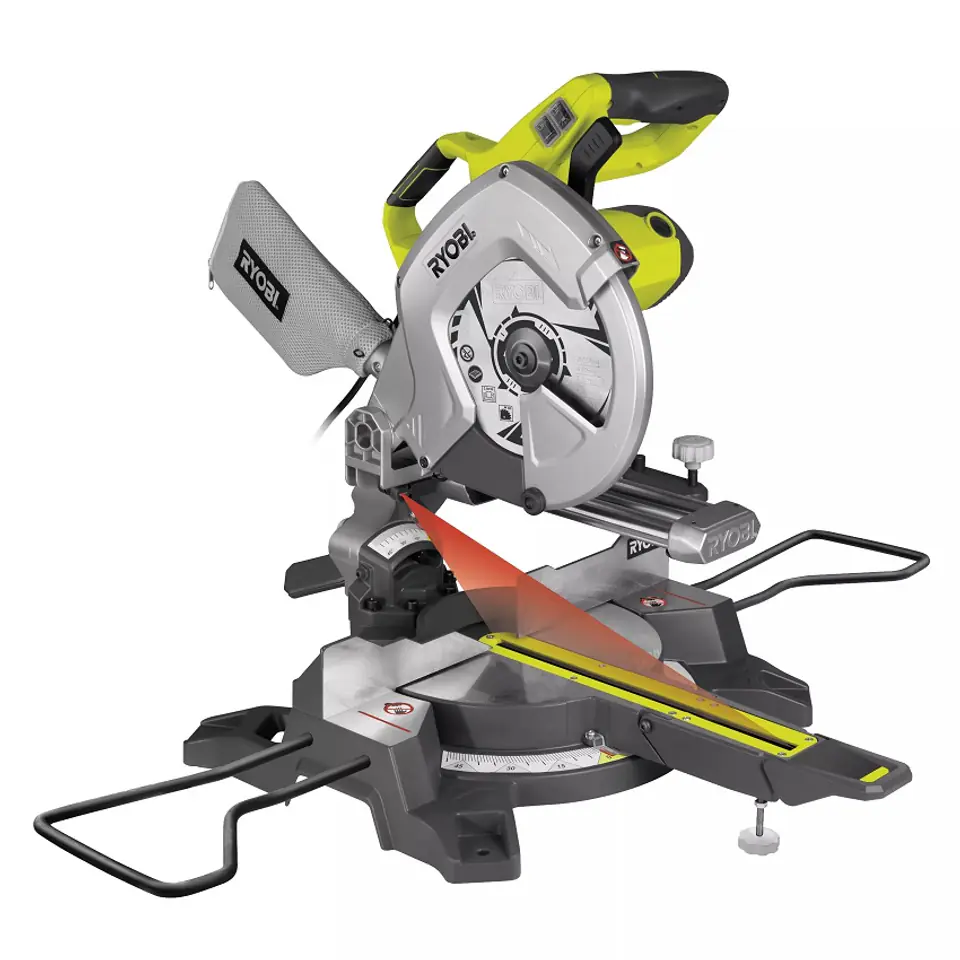

Exactline Laser Technology™ for precision cutting
2 LEDs for workplace lighting
Feed slash for greater cutting efficiency
Easy to carry and store thanks to its compact design
2000W motor for greater cutting efficiency
Wide side guides help cut large parts
Tilt angle 50° left and right


Paperboard
Cutting disc with 24 TCT teeth
2 extensions
Clamp
Dust bag
Key

**
