Manufacturer no: 10060476

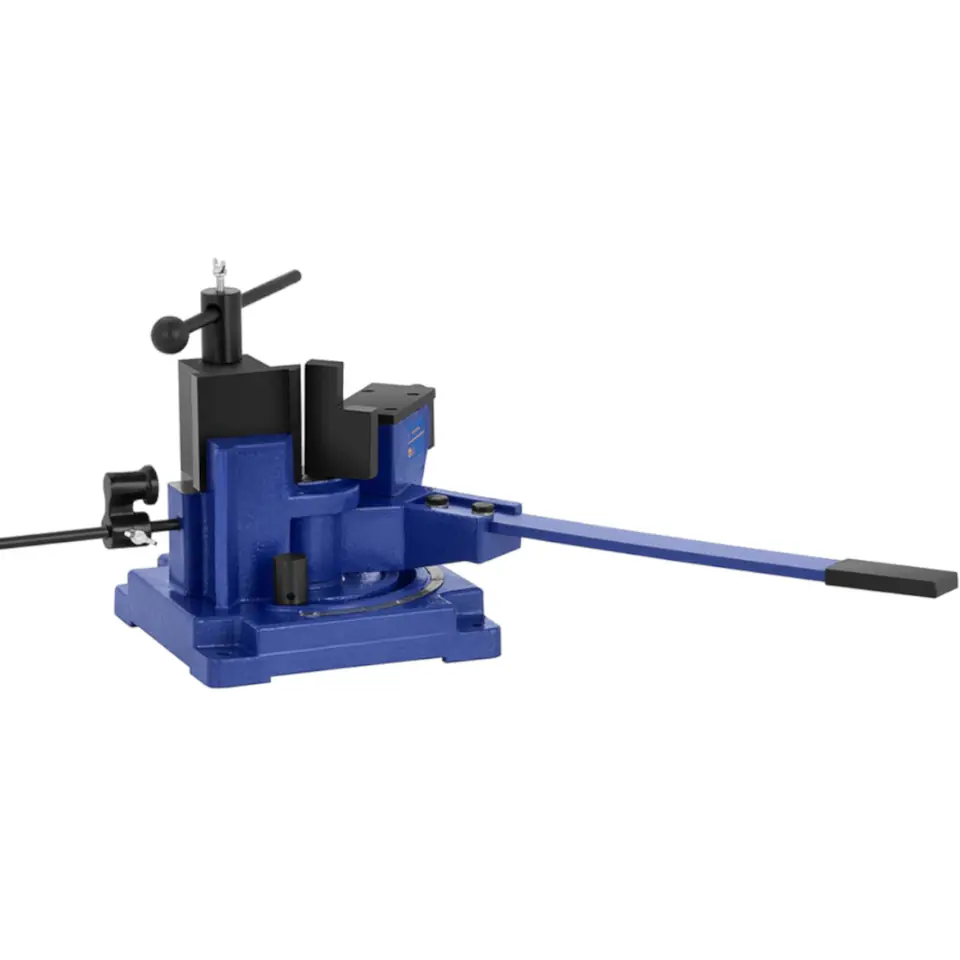

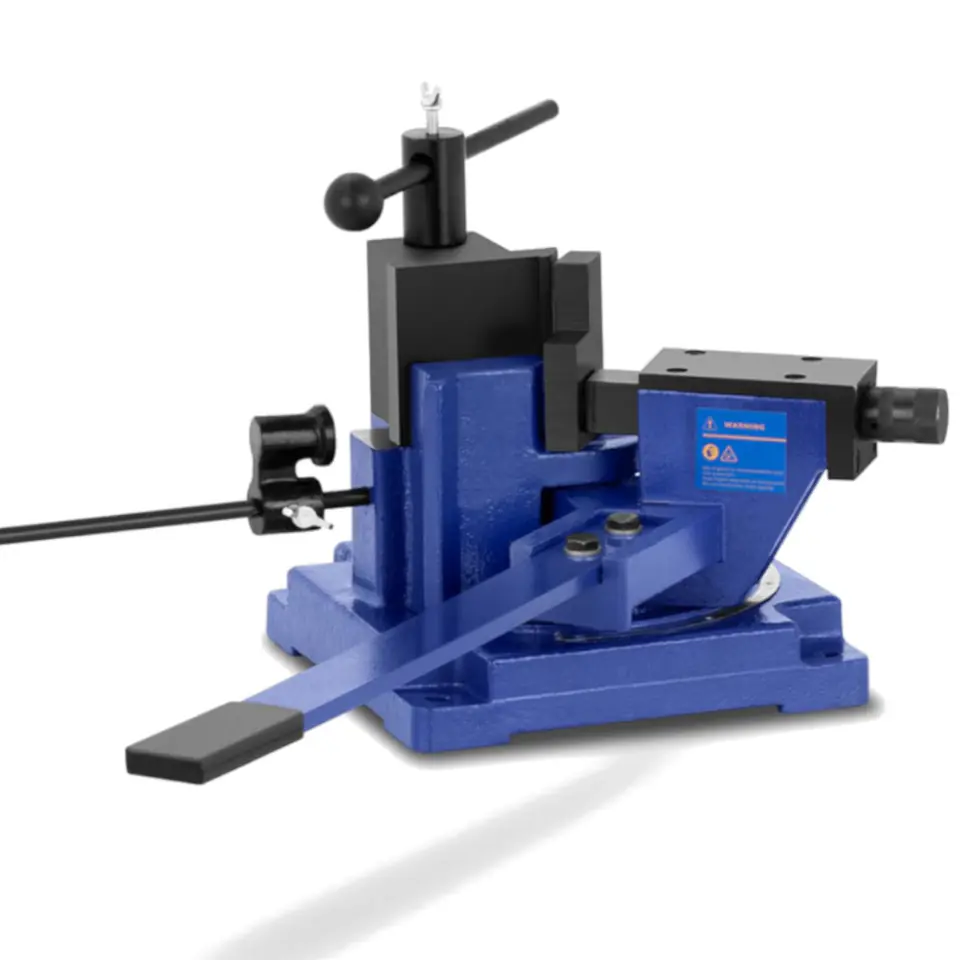

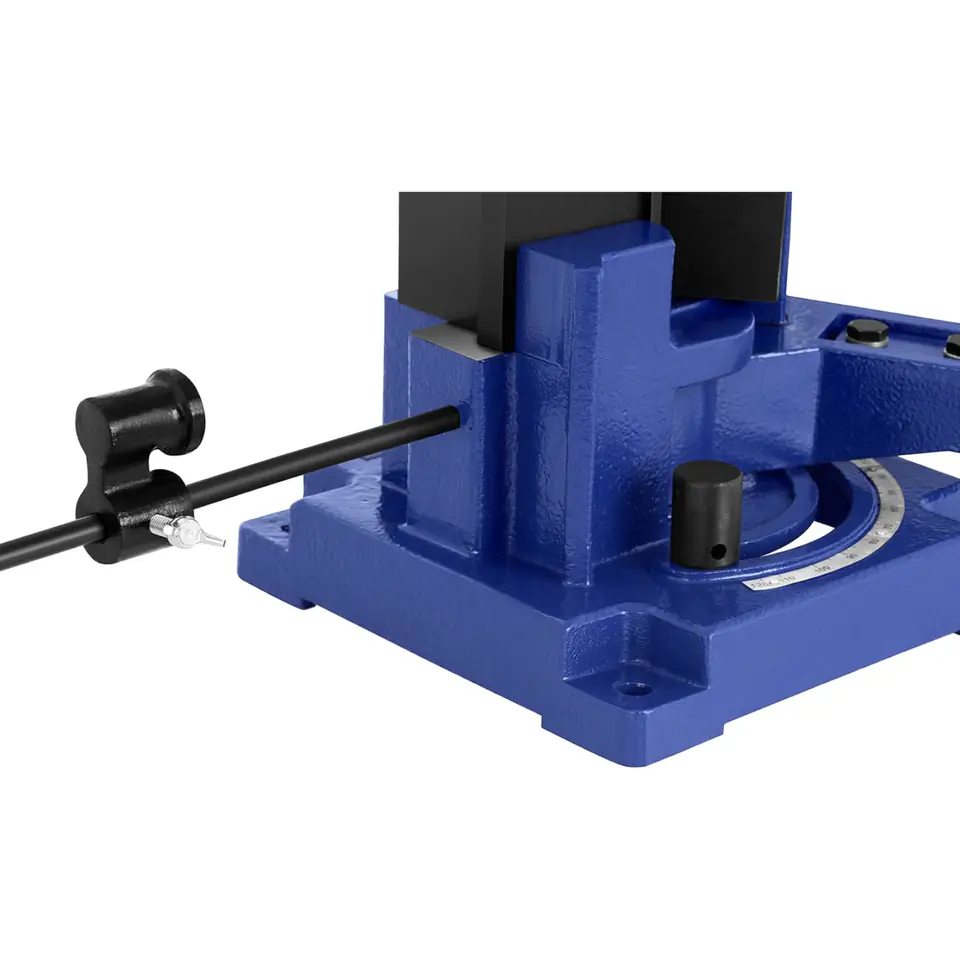

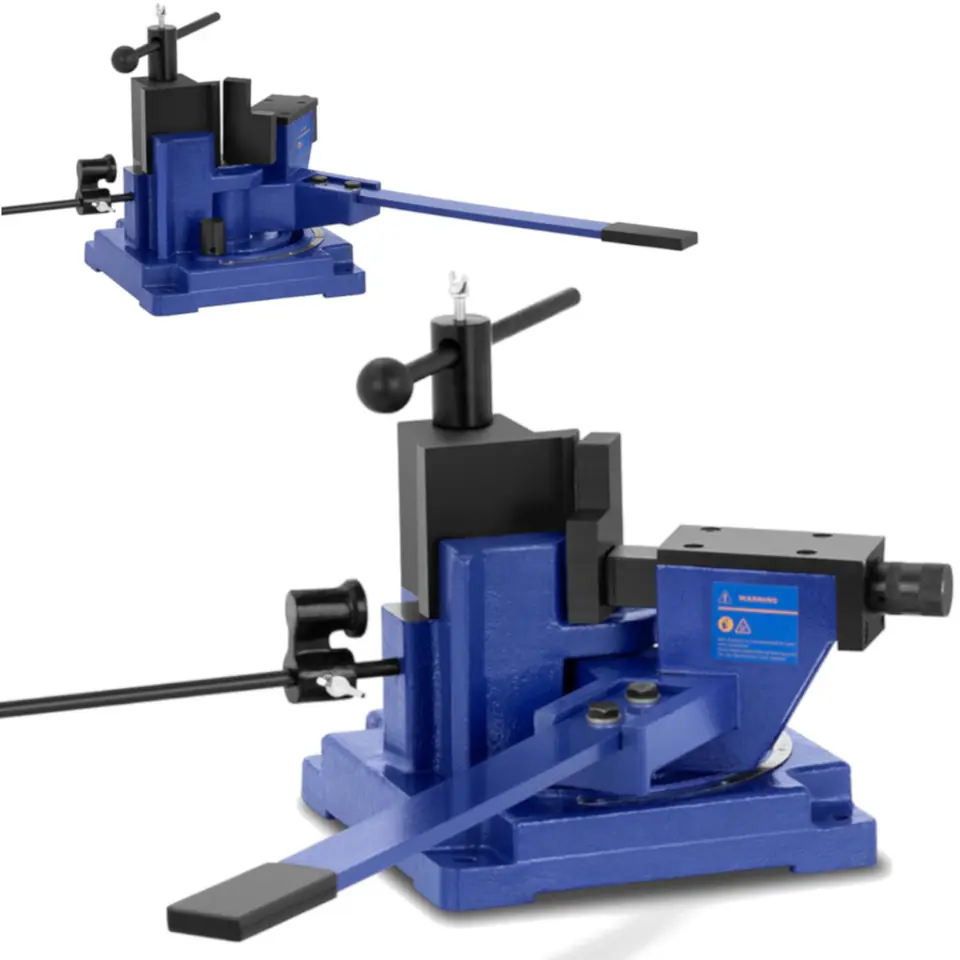

The MSW bending machine will work well in professional or private workshops, locksmith companies and factories. It allows cold or hot bending of steel, copper, brass and aluminum elements with a flat, round or square profile. The eccentric quick coupler allows for solid fastening of materials. The device is characterized by a high pressure force on the material of 23 kg / mm. Built-in protractor up to 120 allows you to accurately profile all elements. The construction of the device made of steel guarantees stability. It is also possible to attach the bending machine to the work table with screws.
Product features:
- - Universal use for flat, round, square profiles,
- - Eccentric handle,

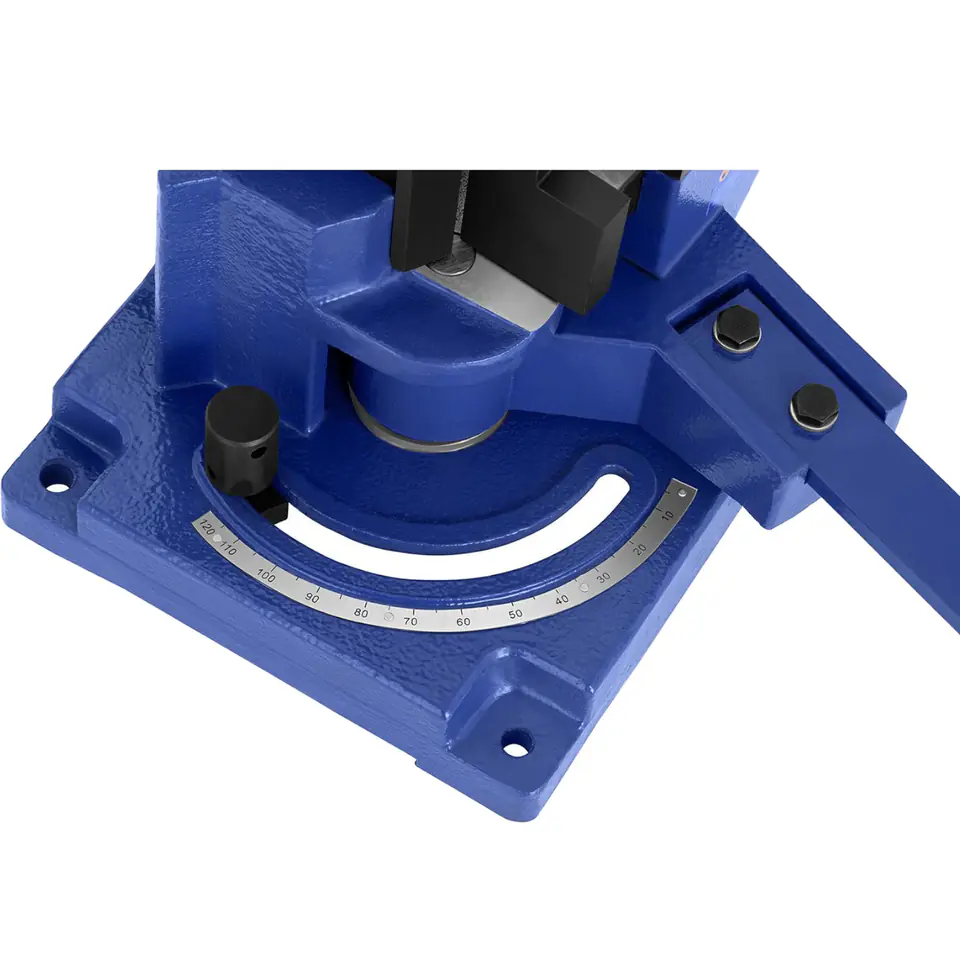

- - Precise angle with graduation,
- - Mounting holes to be attached to the tabletop,
- - Durable steel construction.
- - Model - MSW-UB100A
- - Catalog No. - 10060476
- - Article status - New
- - Flat steel - Cold 100 x 8 mm / Hot 100 x 15 mm
- - Round Steel - Cold 22 mm / Hot 27 mm
- - Square steel - Cold 20 mm x 20 / Hot 25 x 25 mm
- - Maximum bending resistance - 23 kg / mm2
- - Housing material - Steel
- - Dimensions (LxWxH) - 117.00 x 89.00 x 33.00 cm
- - Weight - 31.20 kg
- - Shipping dimensions (LxWxH) - 48.00 x 32.00 x 36.00 cm
- - Shipping weight - 36,35 kg
- - Sheet metal bending machine
- - User Manual
