Manufacturer no: 10060475
The sheet metal bending machine of the German brand MSW will work well in both private and professional workshops, locksmith companies and factories. It can be used to bend cold or hot elements of steel, copper, brass or aluminum with a flat, round, square or angular profile.
Solid fastening of materials ensures the use of an eccentric quick coupler. The bending machine has a high pressure force on the material of 23 kg / mm2. The protractor allows for precise machining and selection of the bending angle in the range of up to 120. The construction of the device is made of steel, which ensures its stability. The bending machine can be fixed with screws to the working table.
Product features:
- - Versatility - for flat round, square, angular profiles,
- - Reliability - eccentric handle,
- - Precision - protractor with graduation,
- - Stability - mounting holes to attach to the tabletop,
- - Durability - construction of solid steel.
- - Model - MSW-UB100
- - Catalog no. - 10060475
- - Article status - New
- - Flat steel - Cold 100 x 6 mm / Hot 100 x 15 mm
- - Round Steel - Cold 18mm / Hot 30mm
- - Square steel - Cold 16 mm x 16 / Hot 30 x 30 mm
- - Angular steel - Cold 60 x 8 mm / Hot 70 x 12 mm
- - Maximum bending resistance - 23 kg / mm2
- - Housing material - Steel
- - Dimensions (LxWxH) - 120 x 104 x 25 cm
- - Weight - 30.5 kg
- - Shipping dimensions (LxWxH) - 40 x 28.5 x 29 cm
- - Shipping weight - 29,05 kg
- - Sheet metal bending machine,

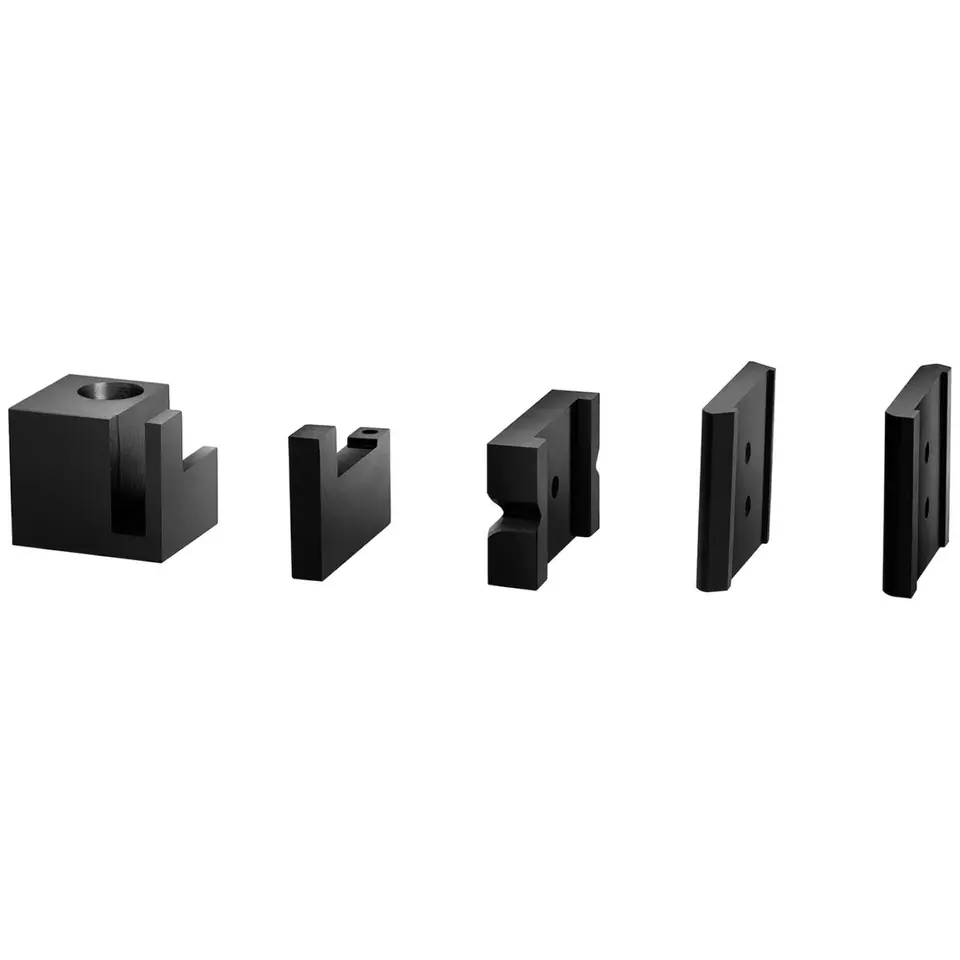

- - Dies - 5 pcs.
- - Manual EN
