Manufacturer no: 10030432

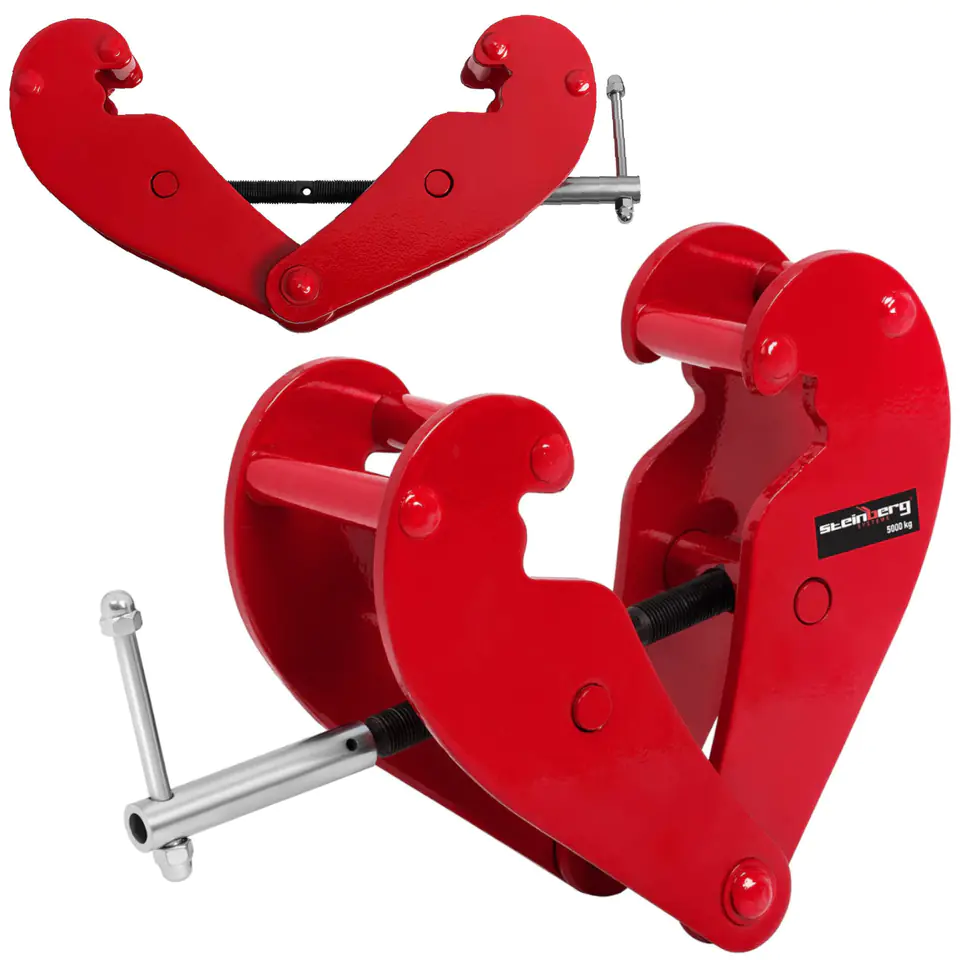

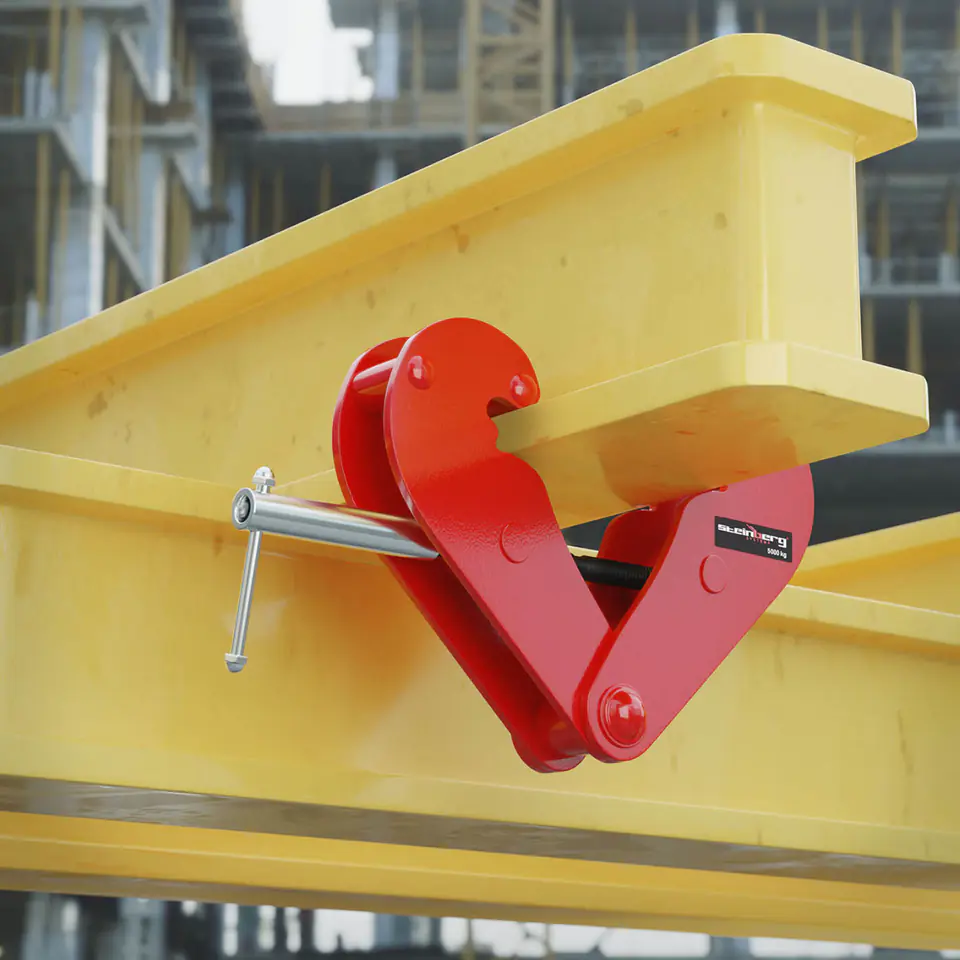

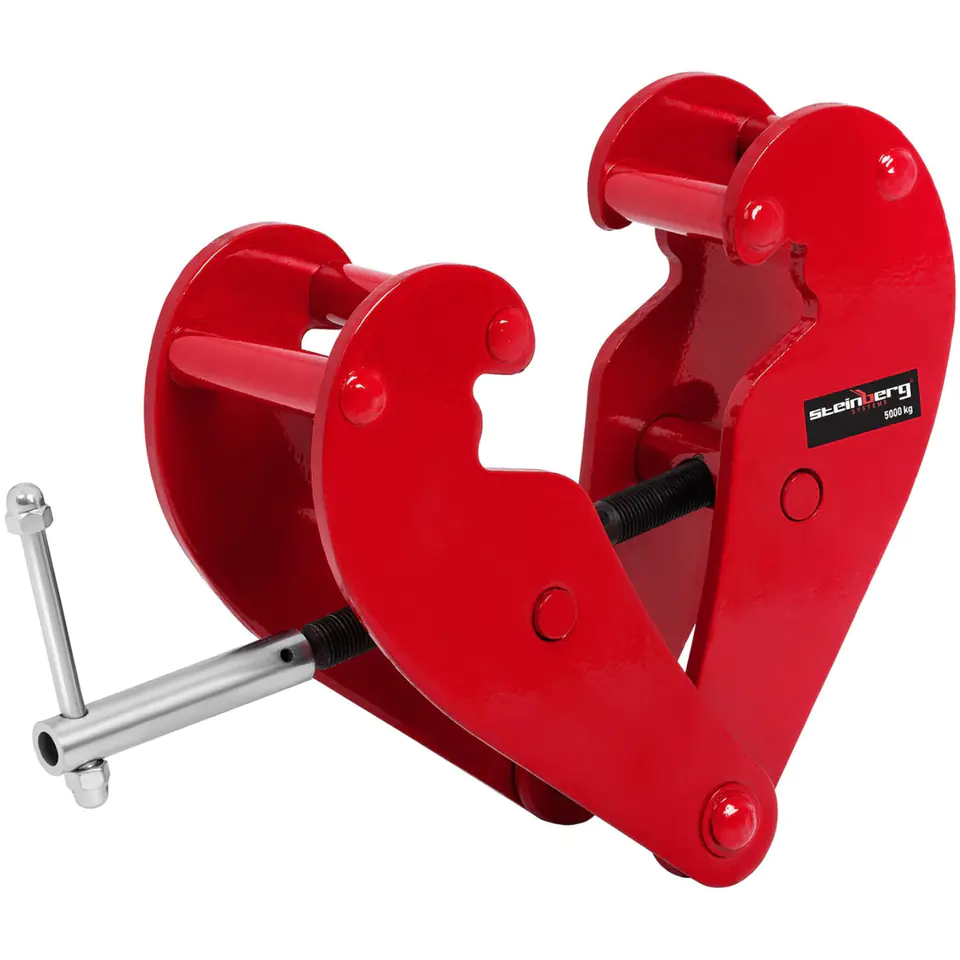

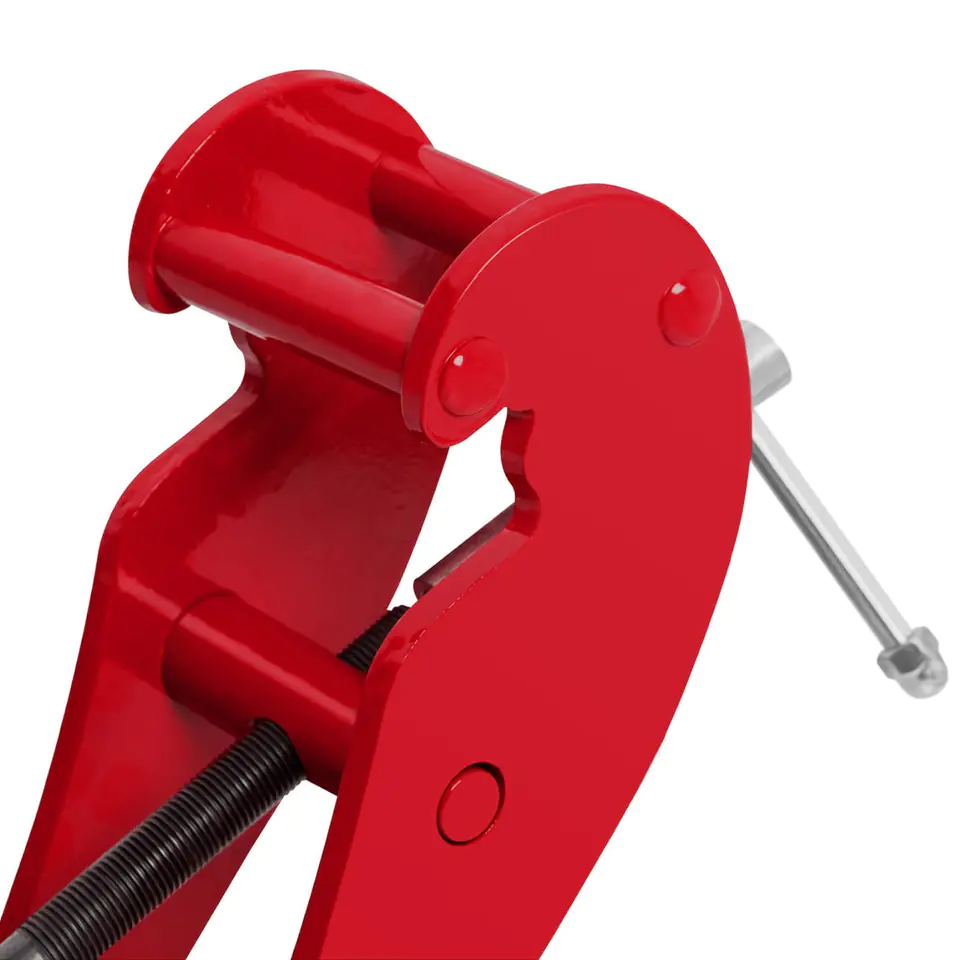

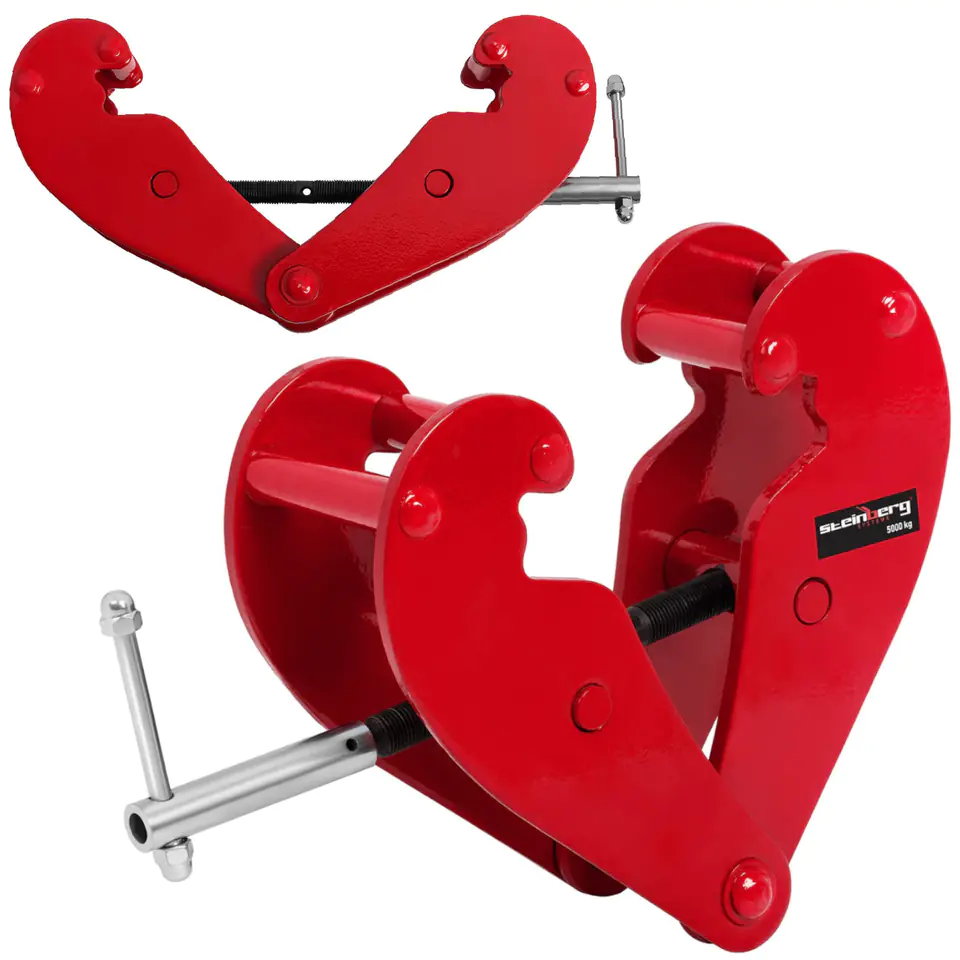

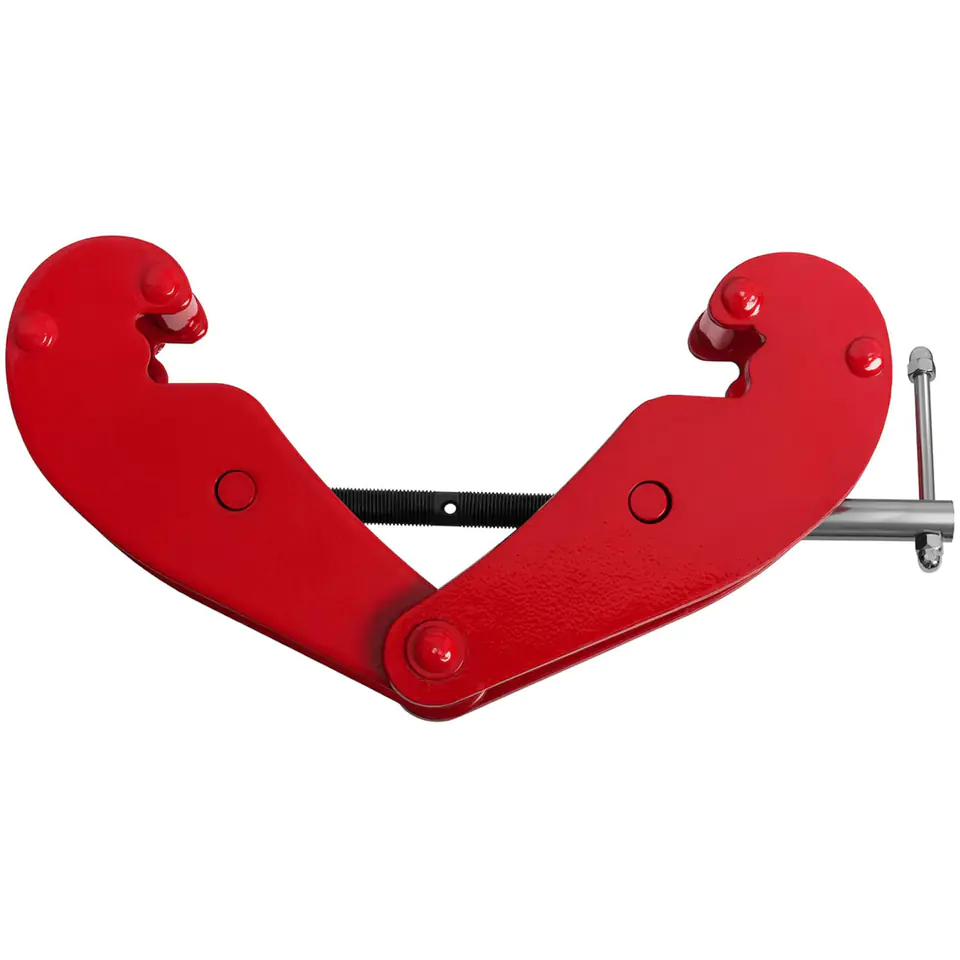

The girder clamp from Steinberg Systems is a tool for carrying girders and I-beams weighing up to 5000 kg. It will also be used for suspending e.g. winches on beams. The girder clamp will be used in industry, in factories, shipyards, steelworks, in recycling plants, in scrap yards as well as in powder paint shops.
The clamp allows you to carry weights weighing up to 5000 kg. Thanks to the width adjustment in the range of 90-310 mm , it is possible to easily adapt the device to various types of girders. It is mounted on overhead cranes or load-bearing beams. No additional tools are needed for assembly. The device is made of very durable steel, has a coating protecting against corrosion. The safety factor is 1.25 maximum load capacity. The buckle is an ideal aid in carrying heavy girders.
Product features:
- - Efficiency - load capacity up to 5000 kg,
- - Strength - solid steel construction, installation without additional tools,
- - Protection - safety factor 1.25 max. lifting capacity,
- - Versatility - adjustable width,
- - Durability - protective coating.
- - Model - SBS-TK-5000
- - Catalogue number - 10030432
- - Stan - New
- - Maximum load capacity - 5000 kg
- - Material - Steel
- - Clamping width range - From 90 to 310 mm
- - Dimensions (LxWxH) - 40 x 14 x 31.5 cm
- - Weight - 11.3 kg
- - Shipping dimensions (LxWxH) - 42,5 x 37,5 x 16,5 cm
- - Shipping weight - 12 kg
- - Girder clamp
- - Manual EN
