Manufacturer number: MSW 10060938

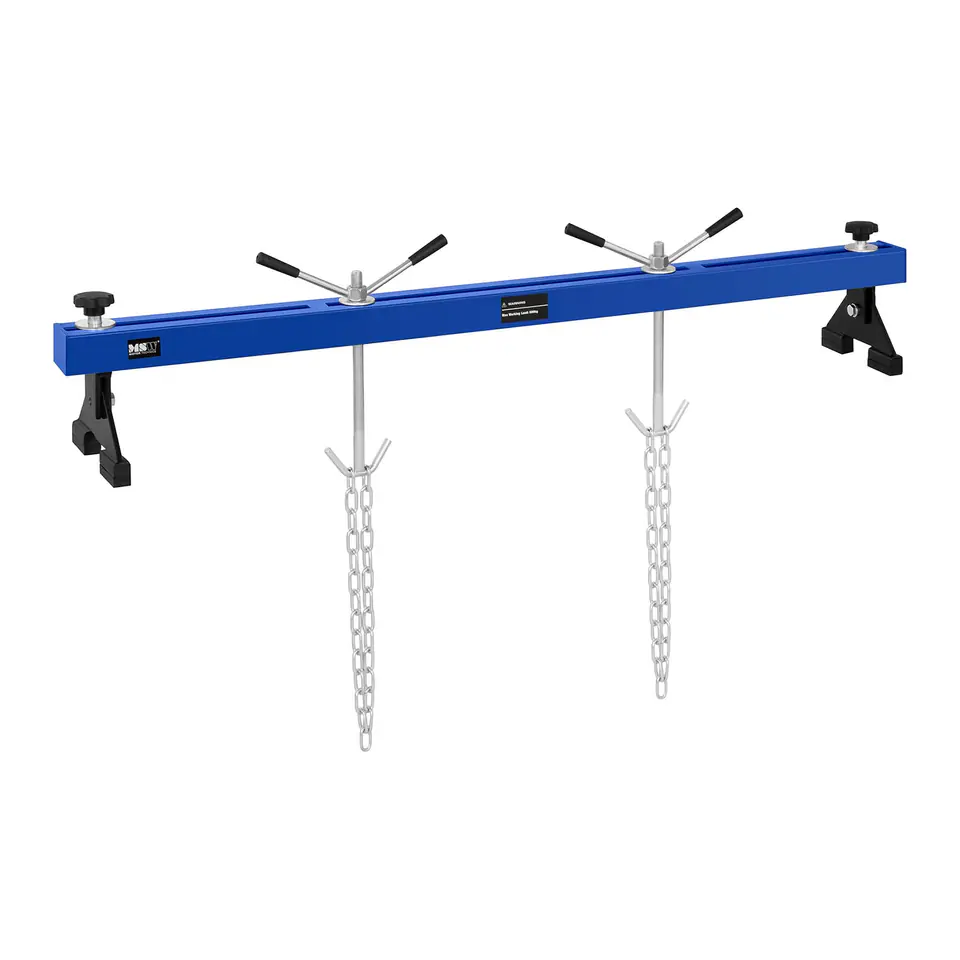

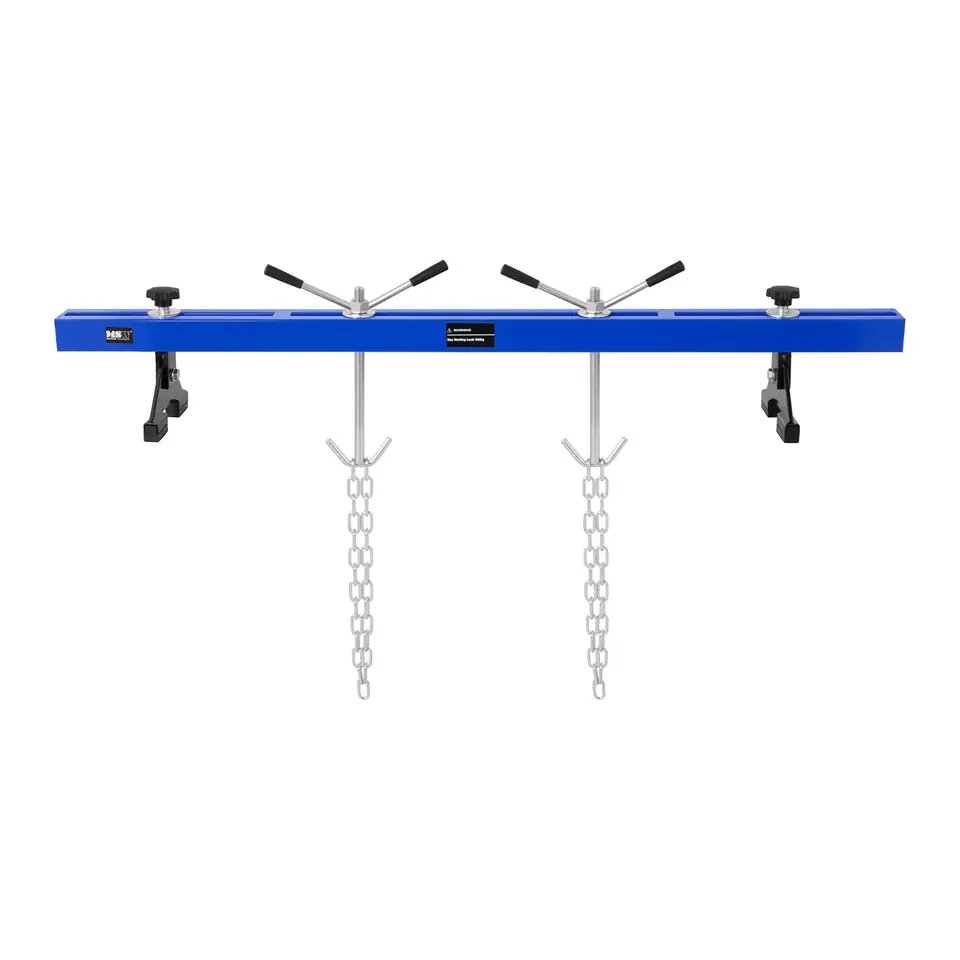

The MSW engine suspension beam is a device designed for car workshops or services as well as car manufacturing plants. It allows repair work to be carried out that requires dismantling and assembly of the engine or gearbox and provides access to the parts and mechanisms underneath it.
The maximum boom load reaches 500 kg, which allows you to work with any type of engine or gearbox. For the safety of use are responsible for the 360-turn supports with rubber ends, thanks to which the beam does not slip and moves. In addition , the tips protect the varnish from accidental scratches during repair work.

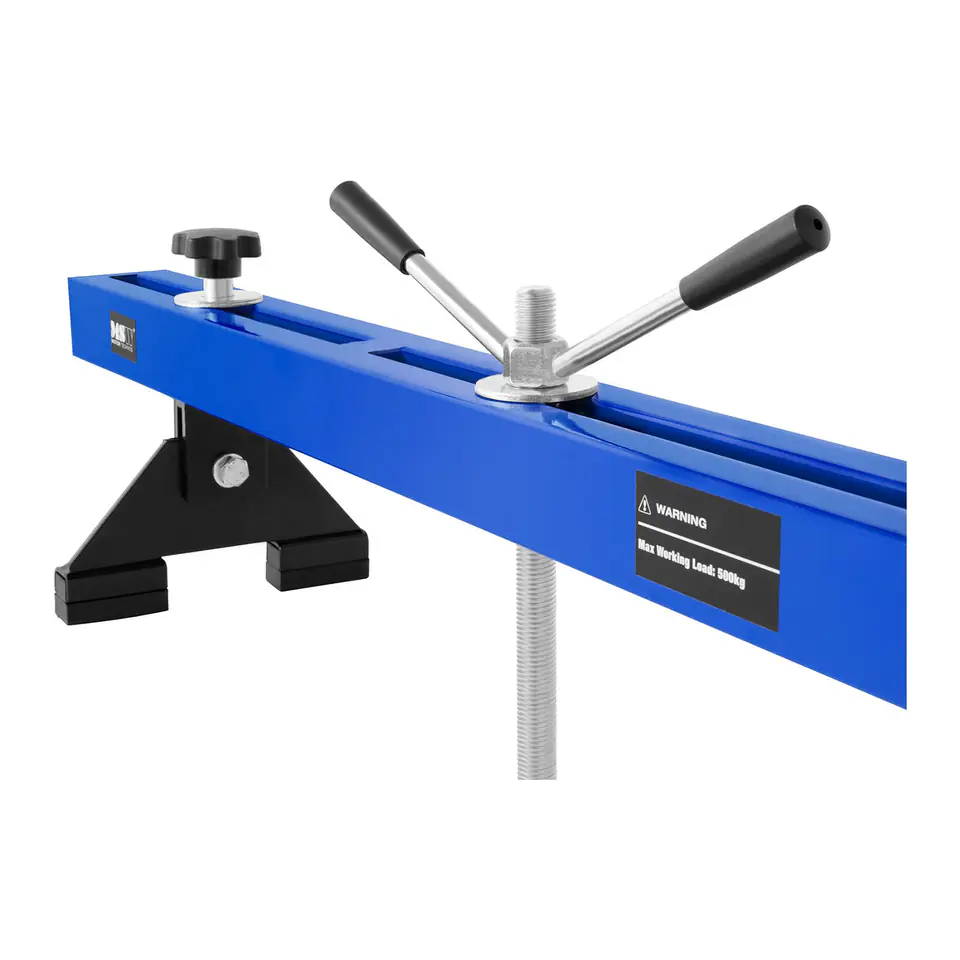

In order to increase the convenience of using the structure , it uses adjustments to the spacing of supports (in the range from 725 to 1490 mm) and the height of engine lifting (in the range from 0 to 240 mm). It is carried out using two convenient knobs and two-arm levers. Product features:
- - Strength - maximum load up to 500 kg,
- - Precision - adjustment of the spacing of supports and the height of the engine lifting,
- - Safety - non-slip feet prevent the structure from moving and protect against scratching the paintwork,

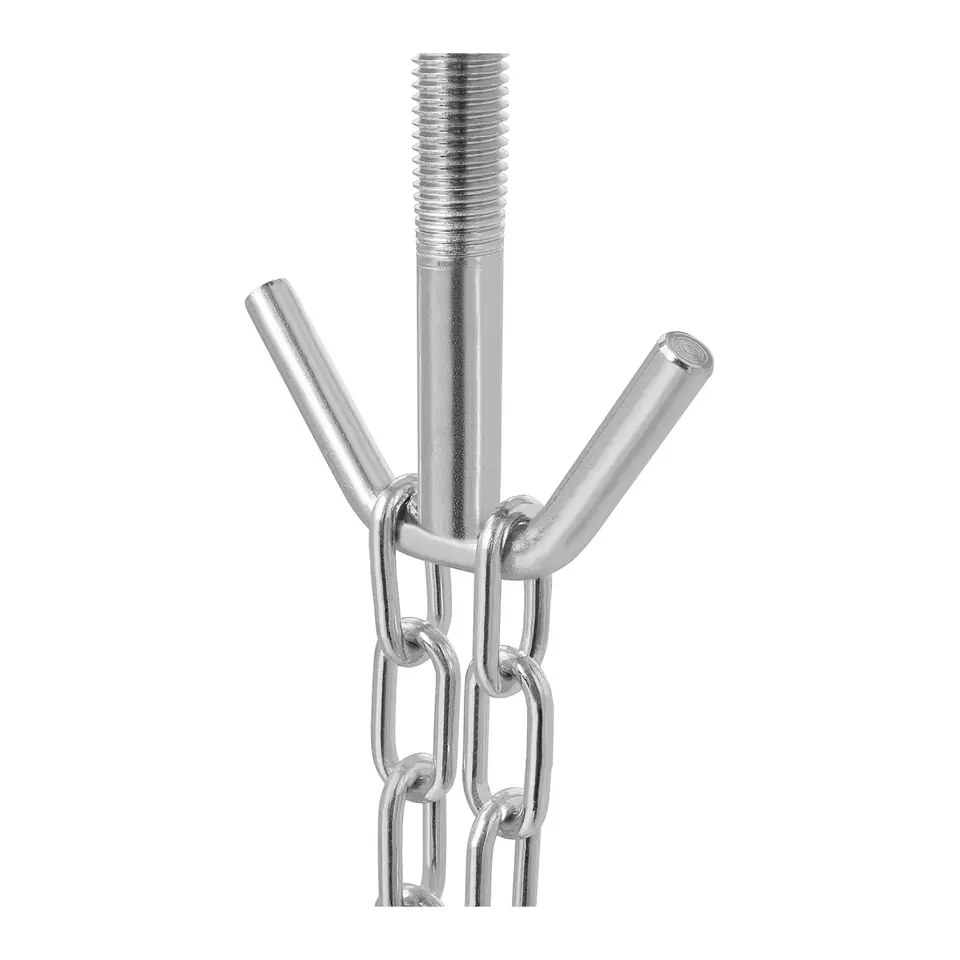

- - Convenience - double hooks make it easy to position the motor in the right position.
- - Model - MSW-MB-500
- - Catalog no. - 10060938
- - Article status - New
- - Material - Steel
- - Maximum load - 500 kg
- - Lifting height - 0-240 mm
- - Distance range between supports - 725-1490 mm
- - Chain length - 950 mm
- - Beam length - 1505 mm
- - Dimensions (LxWxH) - 150.5 x 22.5 x 41.5 cm
- - Weight - 16.4 kg
- - Shipping dimensions (LxWxH) - 154 x 15.5 x 12 cm
- - Shipping weight - 17.4 kg
- - Beam for hanging the engine
- - Handle – 2 pcs.
- - Support – 2 pcs.
- - Chain – 2 pcs.
- - Support screw with hooks – 2 pcs.
- - Assembly parts
- - Manual EN
