Manufacturer no: 10030428

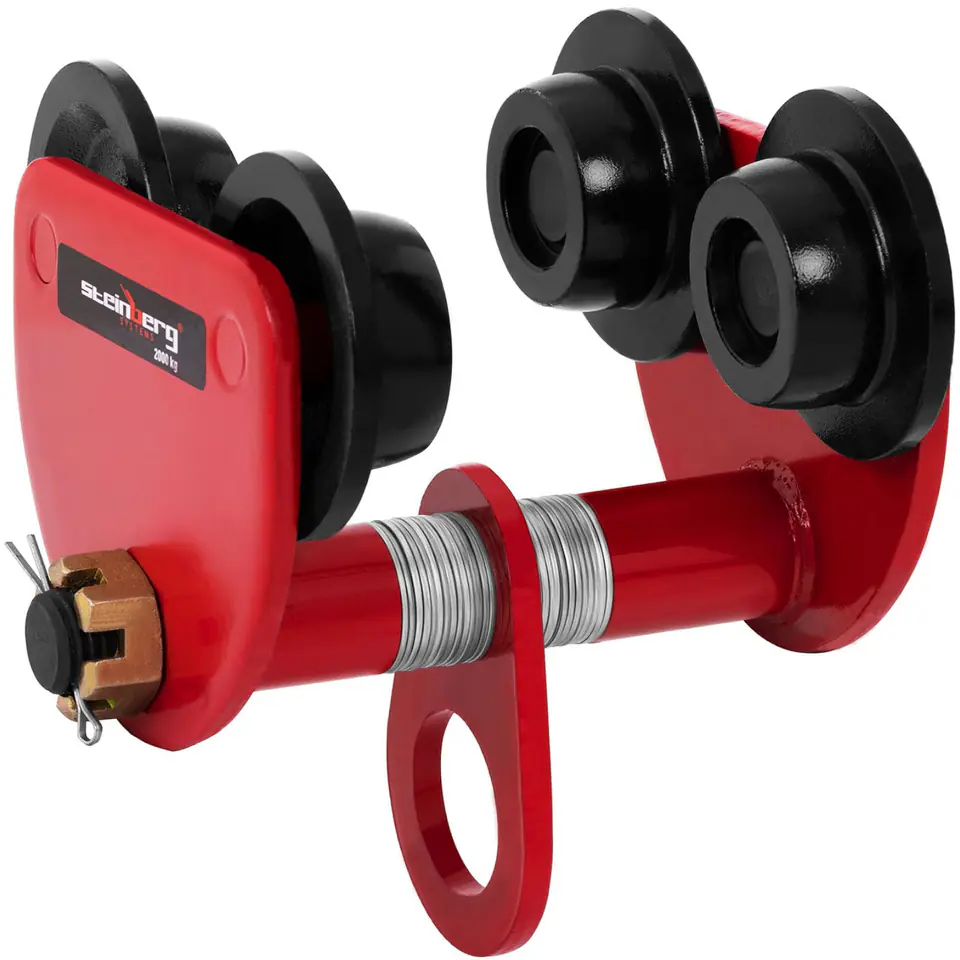

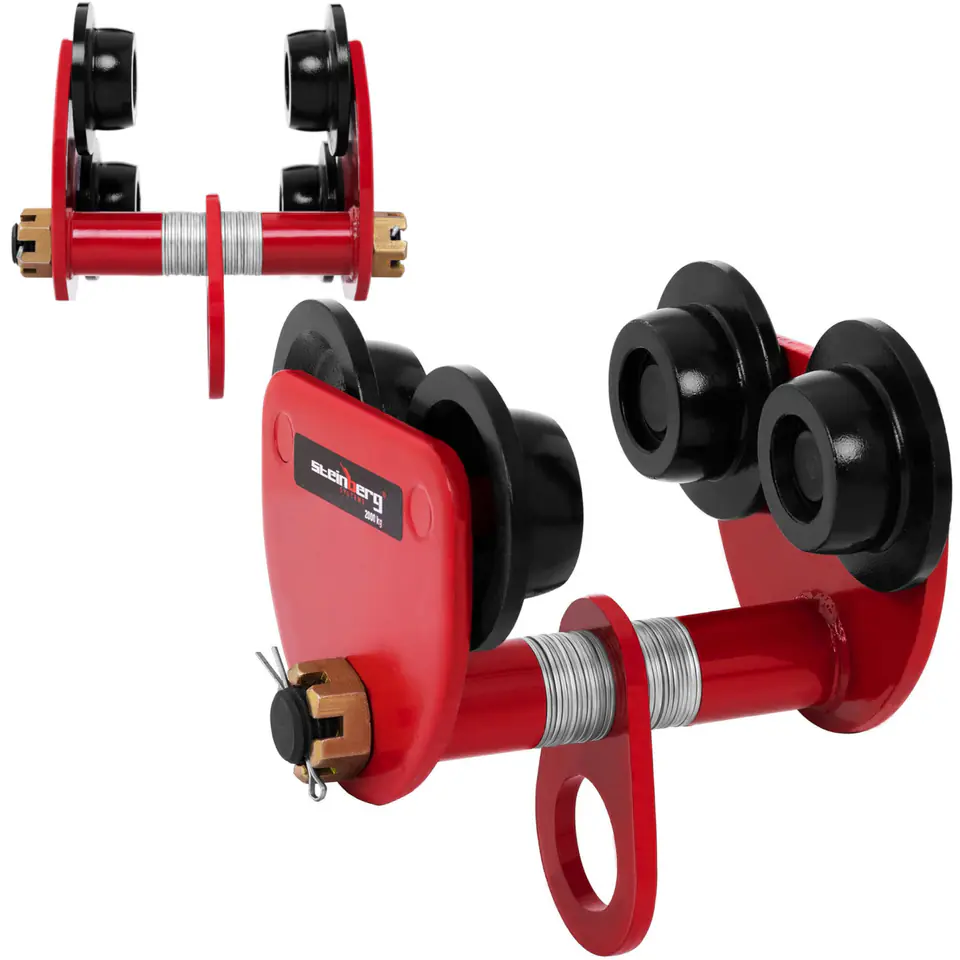

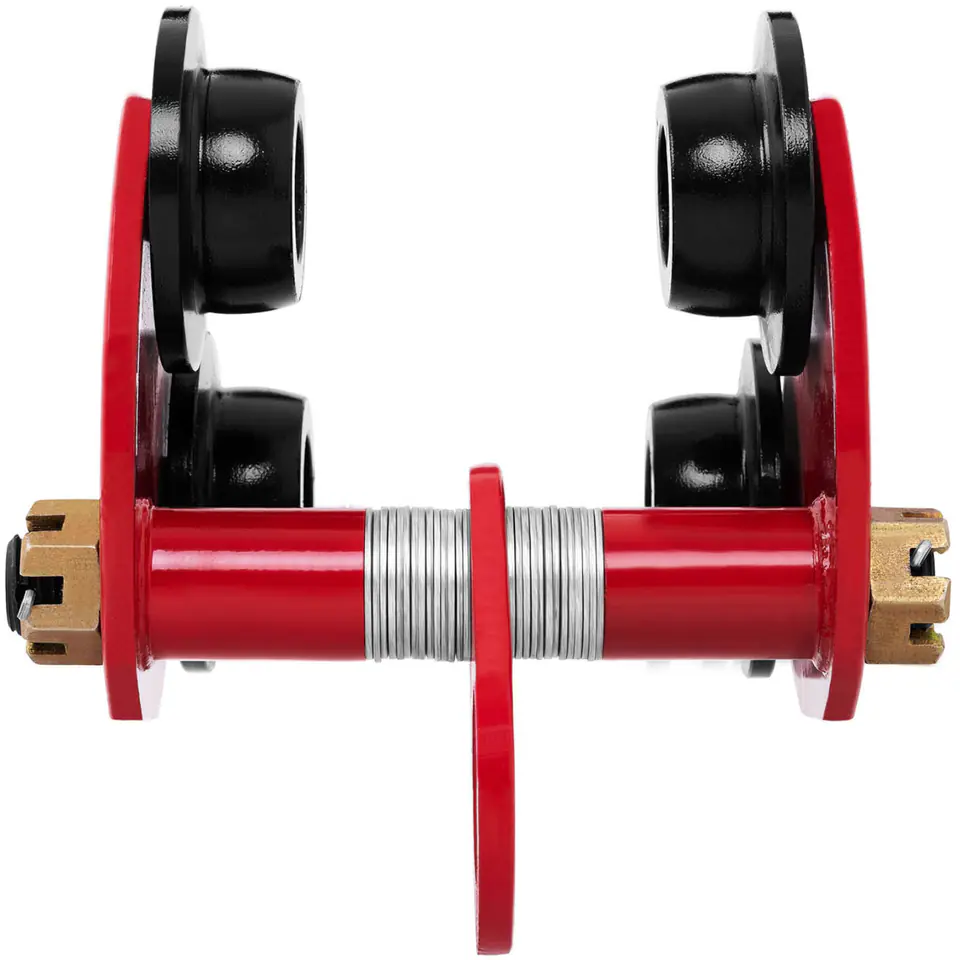

The Crane Trolley by Steinberg Systems is a device that is ideal for easy movement of heavy loads in a straight line , e.g. on a T-bar in industry, m.in in factories such as ironworks, shipyards, recycling plants, scrap yards, etc.

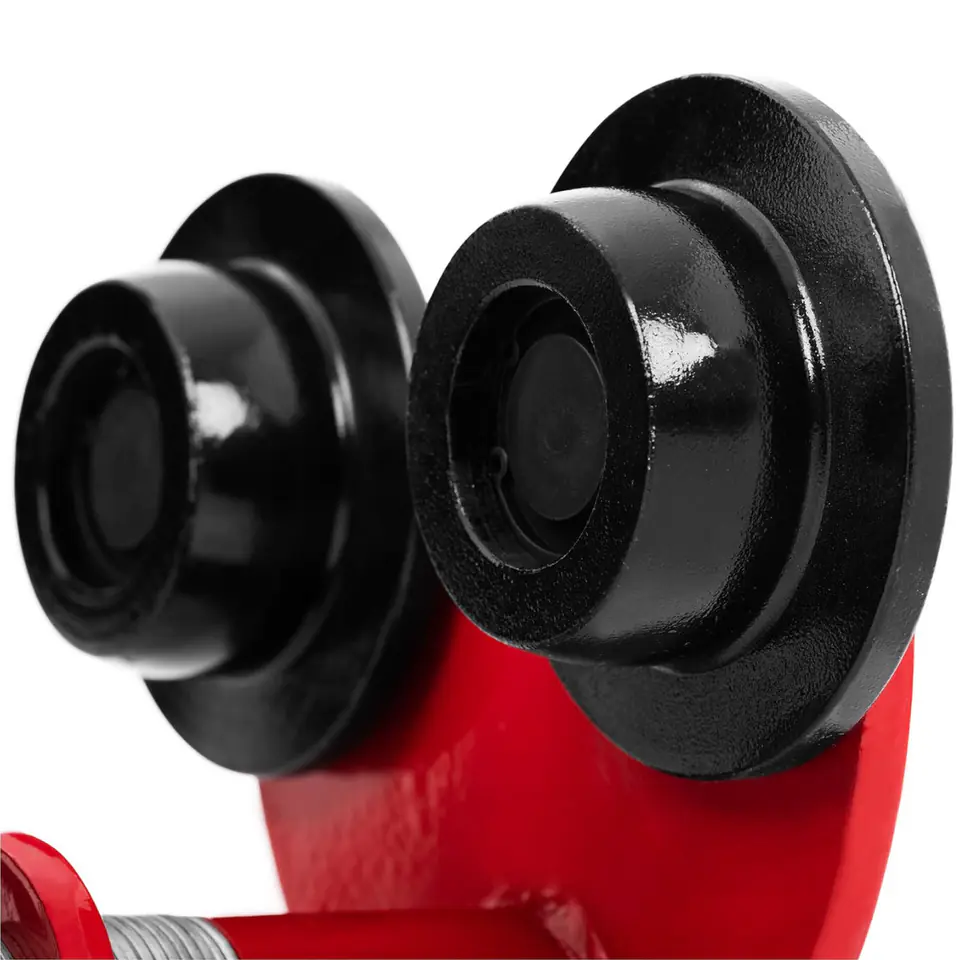

The maximum load capacity of the trolley is 2000 kg and the safety factor is 1.25 max. lifting capacity. Width adjustment in the range of 105-160 mm allows you to mount the device on various girders. The trolley is made of steel, which guarantees work for a very long time. Four steel wheels allow quick movement on the gantry crane and their double system allows adjustment to straight and conical guides.
Product features:
- - Robustness - lifting capacity up to 2000 kg,
- - Protection - safety factor 1.25 max. lifting capacity,
- - Mobility - 4 wheels made of steel,
- - Strength - durable construction,
- - Flexibility - width adjustment.
- - Model - SBS-RT-2000
- - Catalog No. - 10030428
- - Article status - New
- - Lifting capacity max. - 2000 kg
- - Wheels - 4 x steel
- - Rod material - C45 steel
- - Safety factor - 1.25 max. lifting capacity
- - Adjustment range - 105-160 mm
- - Dimensions (LxWxH) - 23 x 26 x 25.5 cm
- - Weight - 12.5 kg
- - Shipping dimensions (LxWxH) - 25 x 24 x 17 cm
- - Shipping weight - 13 kg
- - Crane trolley
