Manufacturer no: 10030431

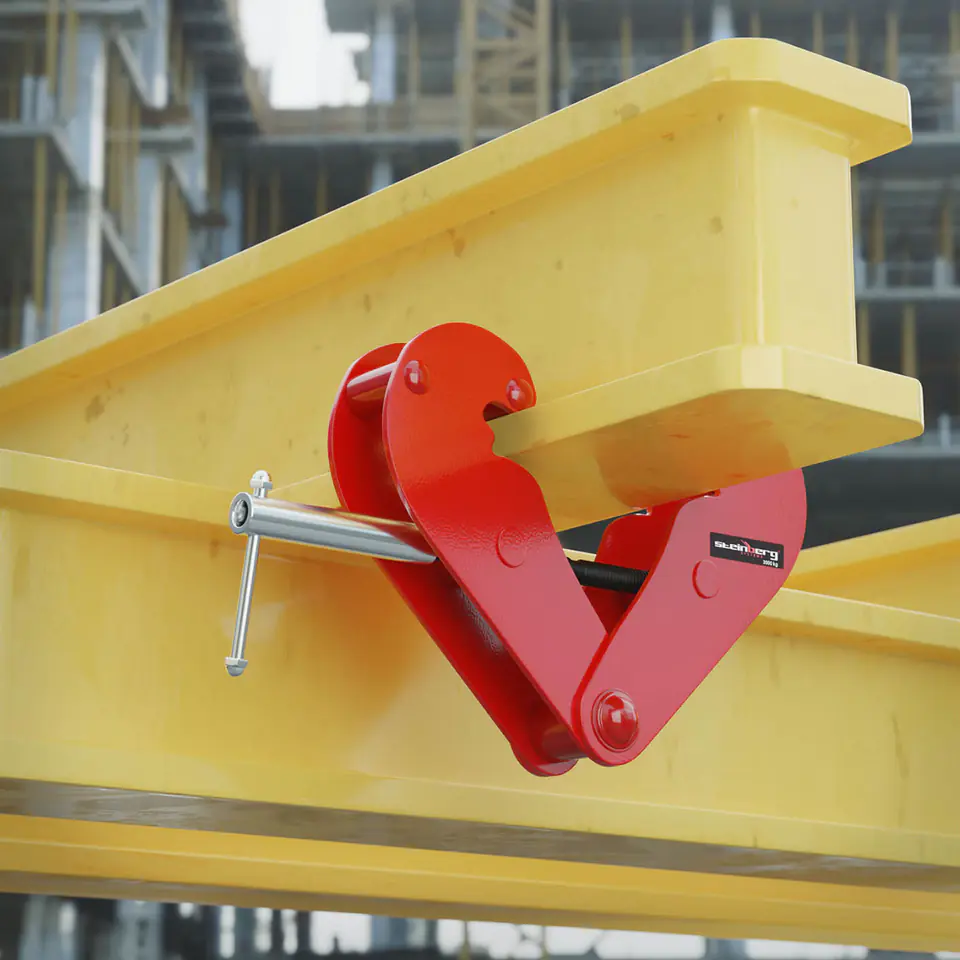

The girder clamp from Steinberg Systems is a tool for handling girders and I-beams with a large weight of up to 3000 kg. It will also be used to hang, for example, winches on beams. The girder clamp will be used in industry, in factories, shipyards, steelworks, in recycling plants, in scrap yards and in powder coating plants.
The clamp allows you to carry weights weighing up to 3000 kg. Thanks to the width adjustment in the range of 90-315 mm , it is possible to easily adjust the device to various types of girders. It is mounted on cranes or support beams. No additional tools are needed for assembly. The device is made of very durable steel, has a coating that protects against corrosion. The safety factor is 1.25 max. lifting capacity. The buckle is an ideal aid in moving girders with a large weight.
Product features:
- - Efficiency - load capacity up to 3000 kg,
- - Strength - solid steel frame, installation without additional tools,
- - Protection - safety factor 1.25 max. lifting capacity,
- - Versatility - adjustable width,
- - Durability - protective coating.
- - Model - SBS-TK-3000
- - Catalogue number - 10030431
- - Stan - New
- - Maximum load capacity - 3000 kg
- - Material - Steel
- - Clamp width range - From 90 to 315 mm
- - Dimensions (LxWxH) - 39 x 12.5 x 31.5 cm
- - Weight - 9.6 kg
- - Shipping dimensions (LxWxH) - 41.5 x 17 x 36.5 cm
- - Shipping weight - 10.2 kg
- - Girder clamp
- - Manual EN
