be quiet! Pure Power 12 M power supply unit 1000 W 20+4 pin ATX ATX Black
€205.78
Shipping from warehouse: M7
Estimated shipping: Mon, Sep 23 - Wed, Sep 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Be quiet!
- Product code:
- BN345 / 4260052189504
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 3.0 |
| Cable ties included: | Yes |

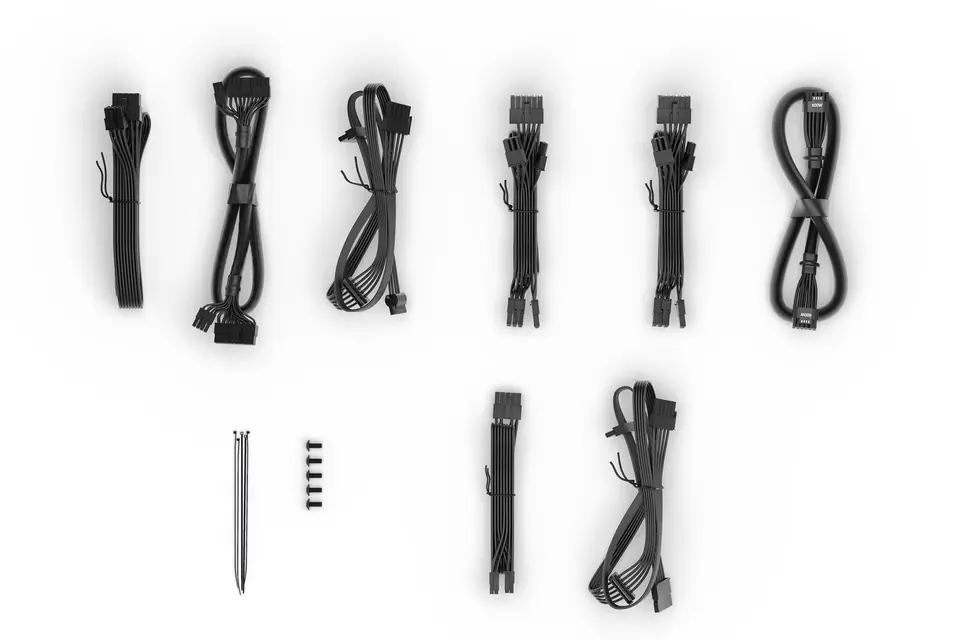

| Cables included: | PATA, PCIe, Peripheral (Molex), SATA |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 1000 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 150 mm |
| Efficiency: | 93.2% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |
| Eps version: | 2.92 |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Height: | 86 mm |
| Input current: | 12 / 6 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 83.4 A |
| Max output current (+12v1): | 46 A |
| Max output current (+12v2): | 42 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 31.7 dB |
| Noise level (full-load mode, 100%): | 31.7 dB |
| Noise level (quiet mode, 50%): | 9.6 dB |
| Noise level (silent mode, <30%): | 9.3 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 2 |
| Number of sata power connectors: | 6 |
| Number of screws: | 5 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Package type: | Box |
| Pci express connector: | Yes |
| Pci express power connectors (6+2 pin): | 4 |
| Peak power: | 1050 W |
| Peripheral (molex) power cable length: | 550 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power factor: | 0.98 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 150 ms |
| Power protection features: | Short circuit, Over voltage, Overheating, Over power, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 650, 950 mm, 500, 800, 600 mm |
| Screws included: | Yes |
| Sustainability certificates: | RoHS, ENERGY STAR, ErP |
| Sustainability compliance: | Yes |
| Total power: | 1000 W |
| Warranty period: | 10 year(s) |
| Width: | 160 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
