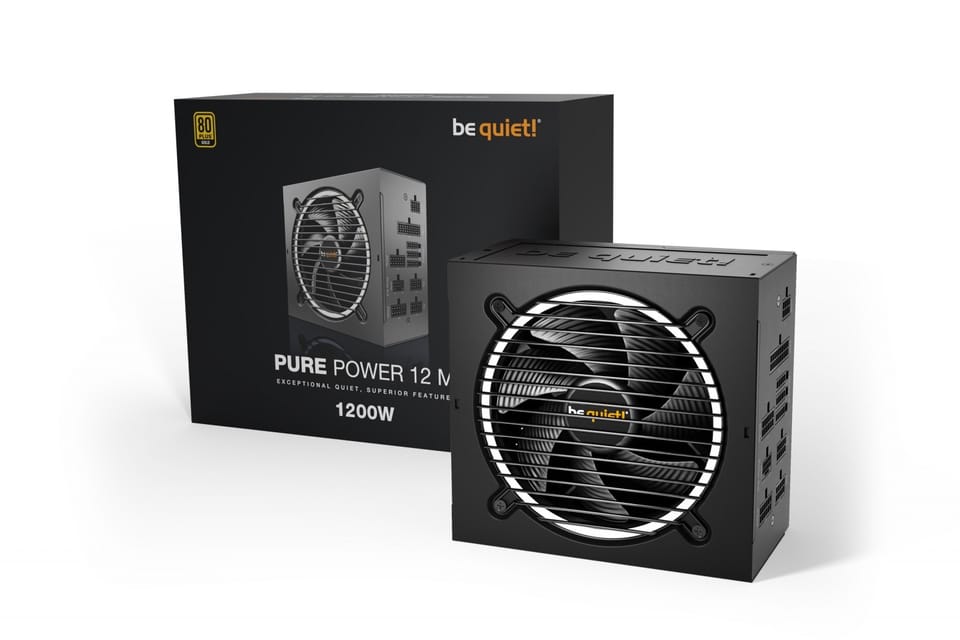

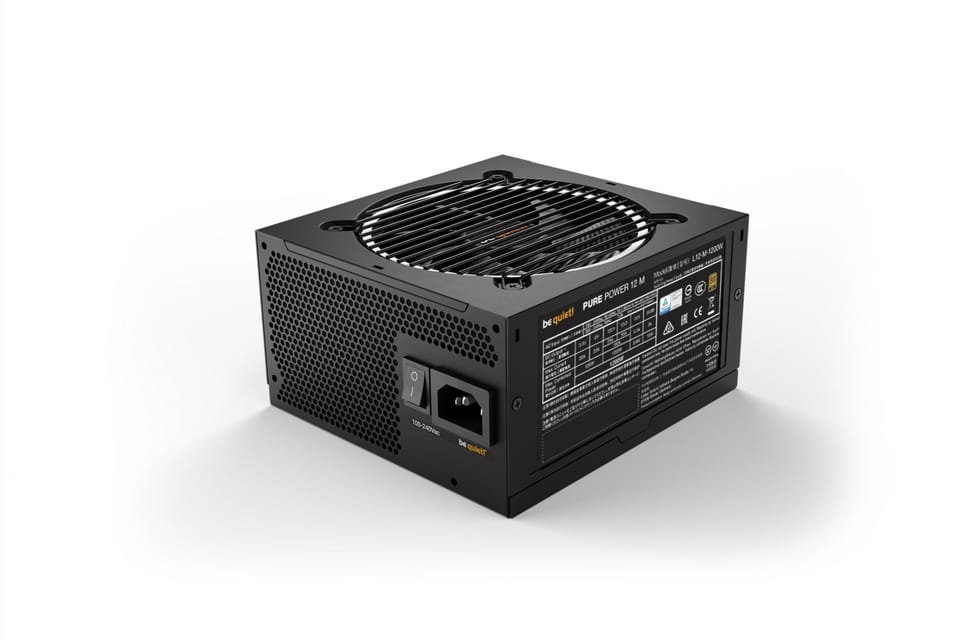

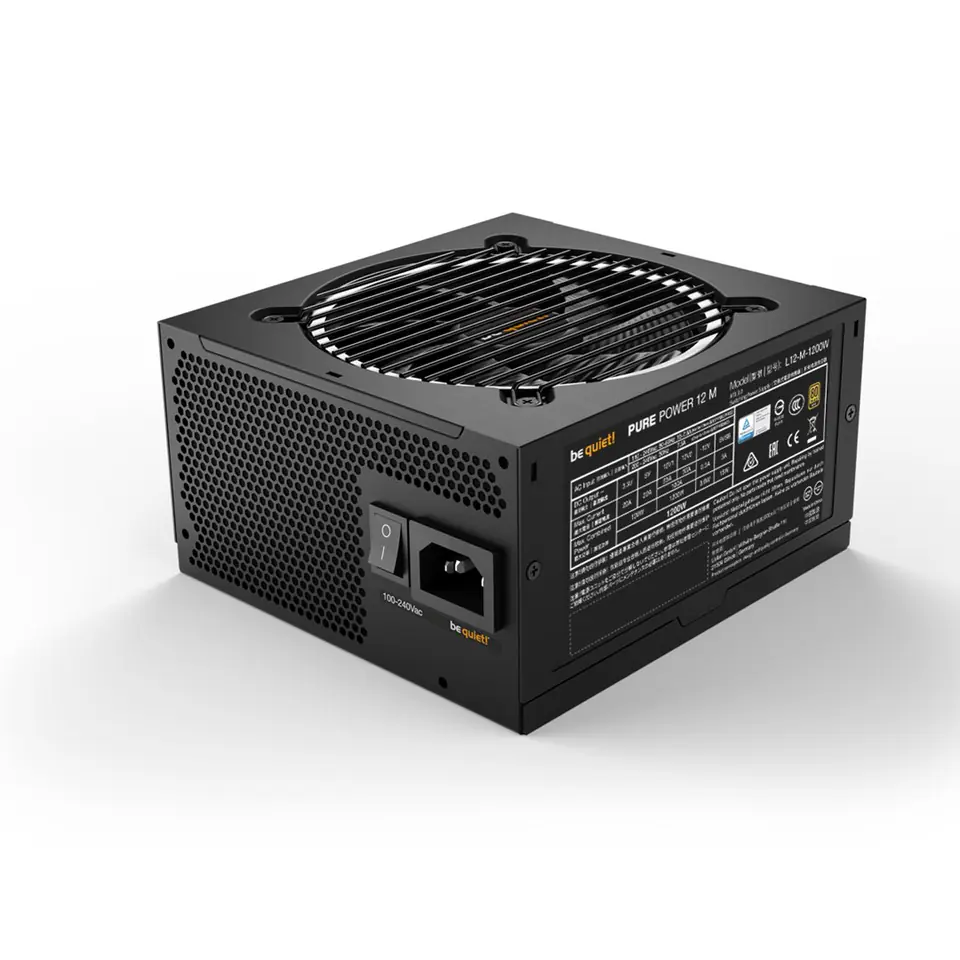

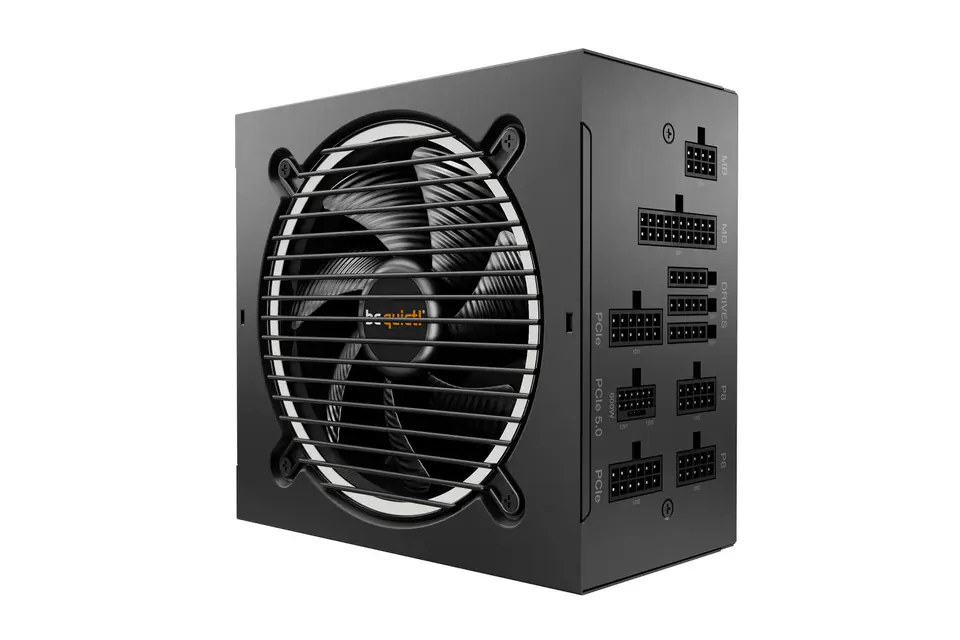

be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black
€240.40
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Be quiet!
- Product code:
- BN346 / 4260052190166
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 3.0 |
| Bearing technology: | Rifle |
| Cable tie(s) included: | Yes |

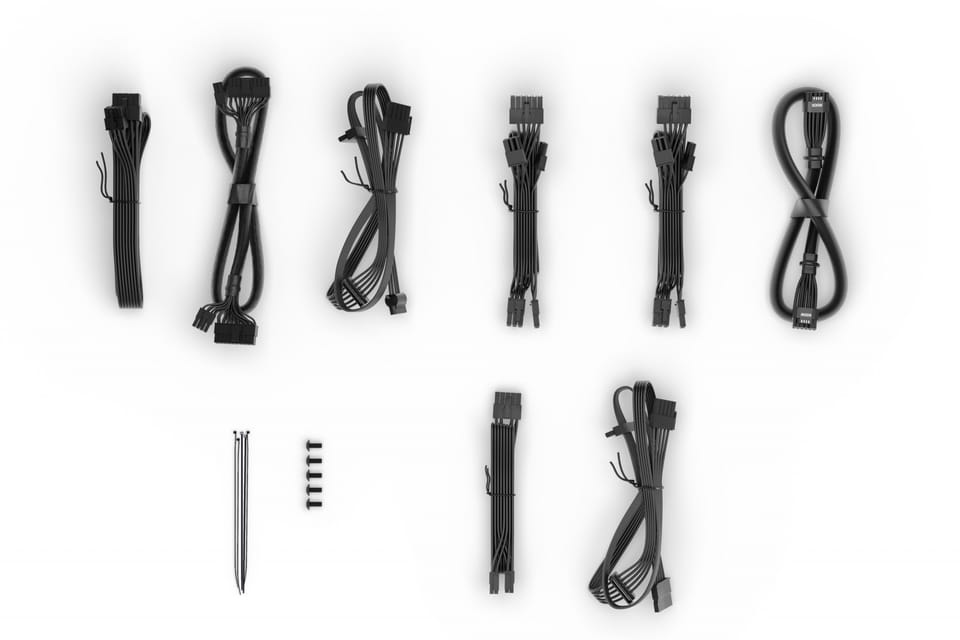

| Cables included: | AC, CPU, PATA, PCIe, SATA |
| Cabling type: | Fully-Modular |
| Combined power (+12v): | 1200 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Compliance certificates: | cTUVus, Federal Communications Commission (FCC), CB, BSMI, RoHS, CE, WEEE, CCC, UKCA |
| Cooling type: | Active |
| Cpu power cable length: | 60 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |
| Efficiency: | 91.5% |
| Eps power connector (8-pin): | Yes |
| Eps version: | 2.92 |
| Fan diameter: | 12 cm |
| Fan speed: | 0 - 2700 RPM |
| Height: | 86 mm |
| Hold time: | 19 ms |
| Input current: | 15 - 7.5 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 55 A |
| Max output current (+12v2): | 50 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 34.3 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 2 |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Package depth: | 284 mm |
| Package height: | 100 mm |
| Package type: | Box |
| Package weight: | 3.19 kg |
| Package width: | 220 mm |
| Pci express connector: | Yes |
| Pci express power cable length: | 60 cm |
| Pci express power connectors (6+2 pin): | 4 |
| Peak power: | 1250 W |
| Peripheral (molex) power cable length: | 800, 950 mm |
| Power factor: | 0.98 |
| Power protection features: | Overheating, Over power, Under power, Short circuit, Over voltage, Under voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Products per shipping (inner) case: | 4 pc(s) |
| Purpose: | PC |
| Sata power cable length: | 500 mm, 800, 650 mm, 950 mm |
| Shipping (inner) case height: | 24.3 cm |
| Shipping (inner) case length: | 29.8 cm |
| Shipping (inner) case net weight: | 12.7 kg |
| Shipping (inner) case width: | 42.6 cm |
| Silent mode: | Yes |
| Supported motherboard form factors: | ATX |
| Sustainability certificates: | ENERGY STAR, ErP, Triman |
| Sustainability compliance: | Yes |
| Total power: | 1200 W |
| Weight: | 1.92 kg |
| Width: | 150 mm |
