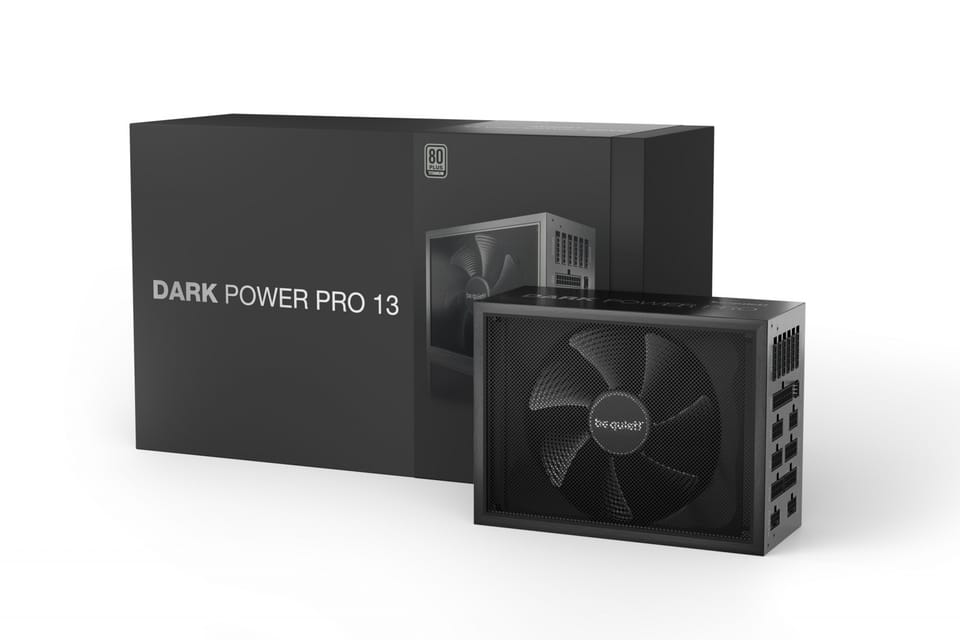

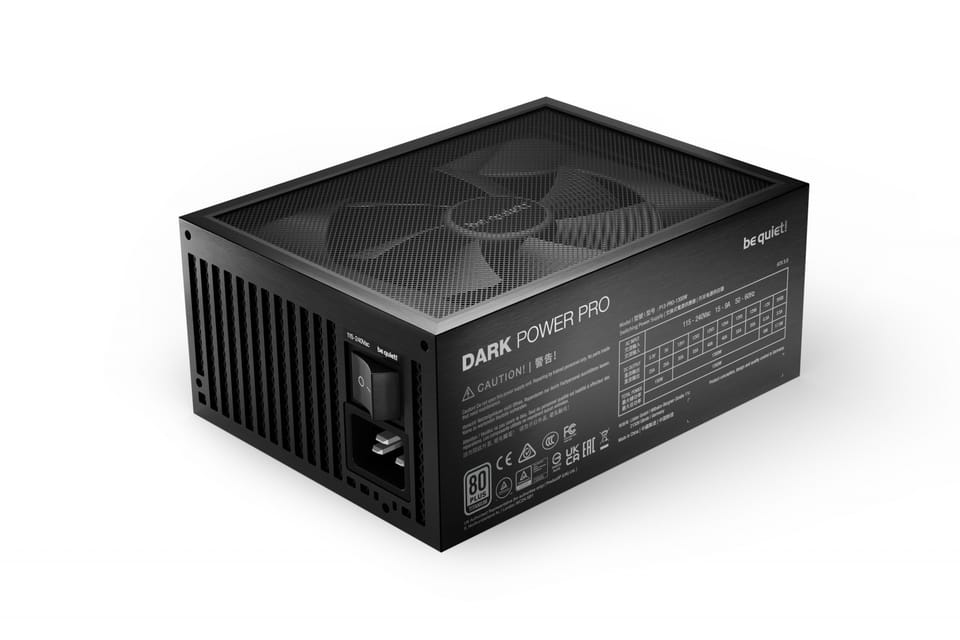

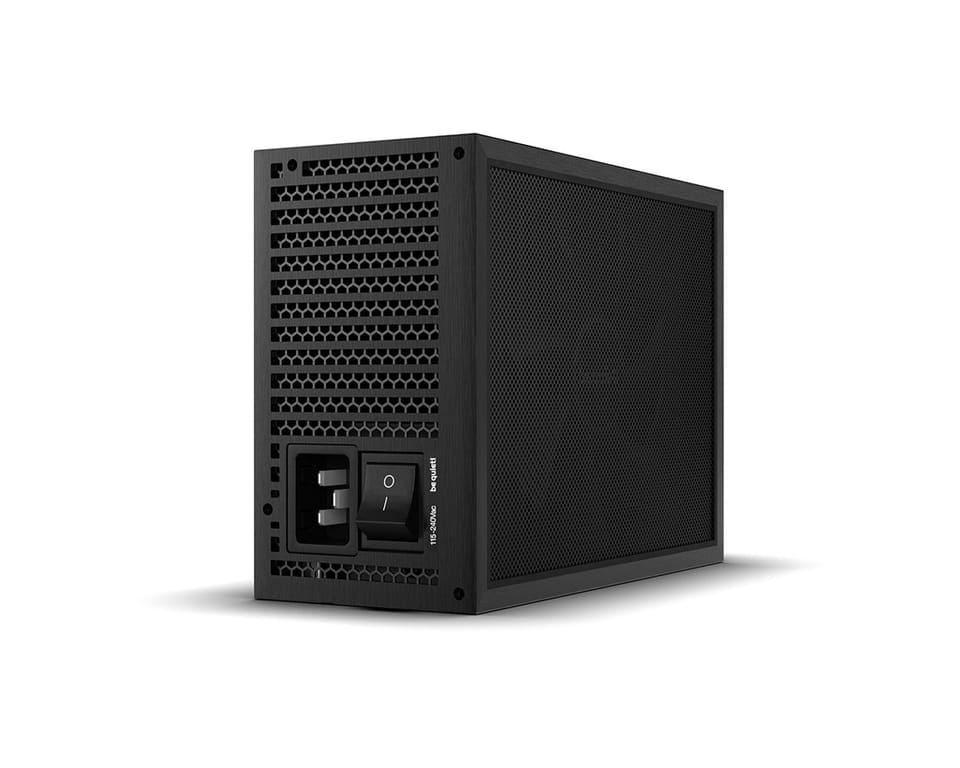

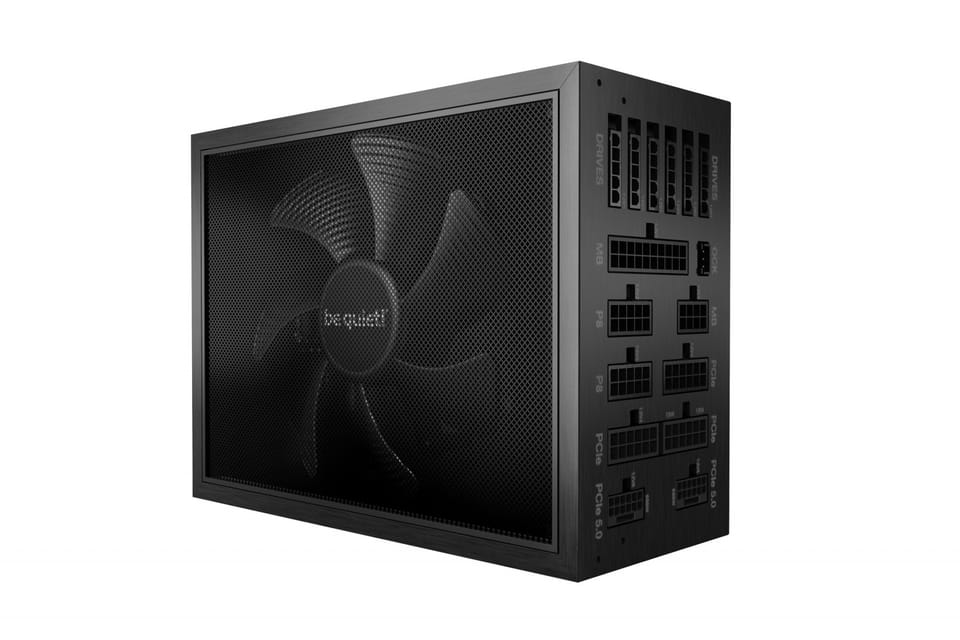

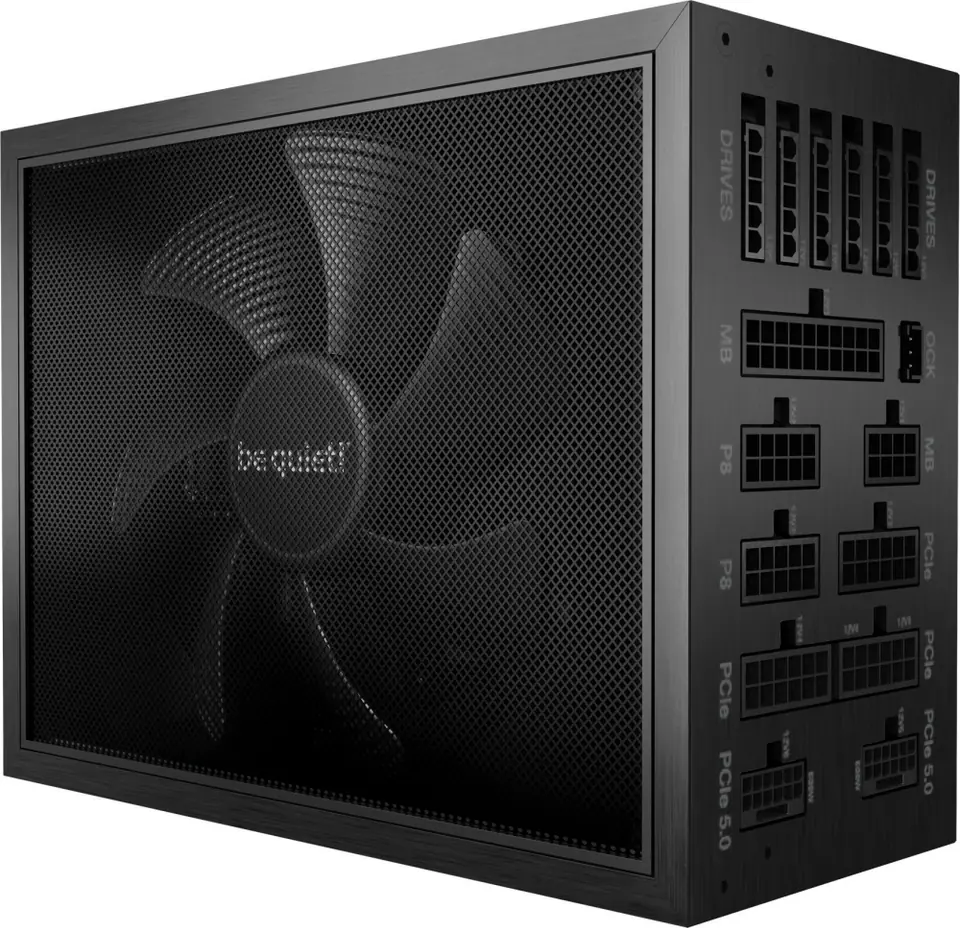

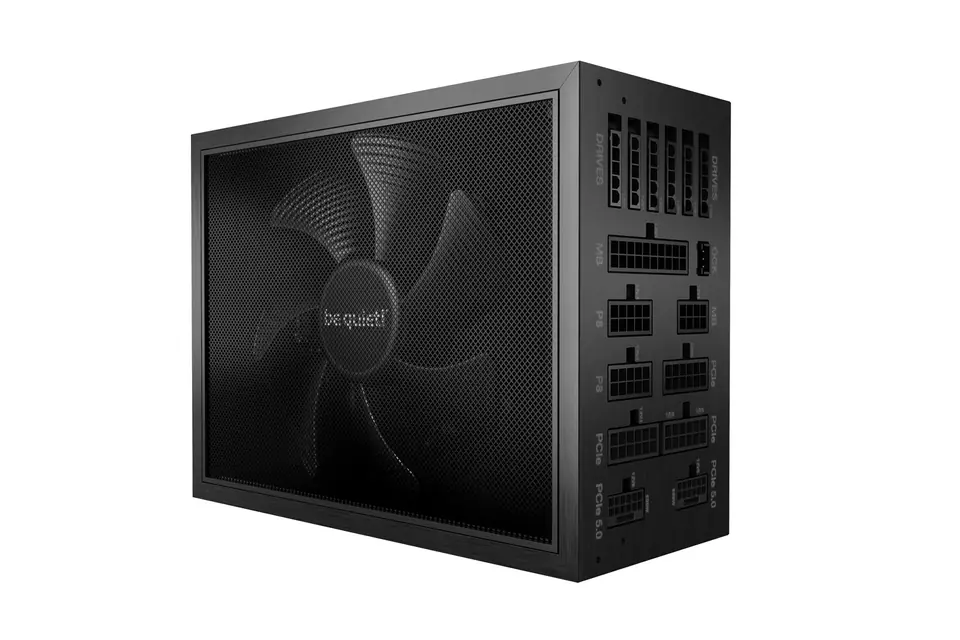

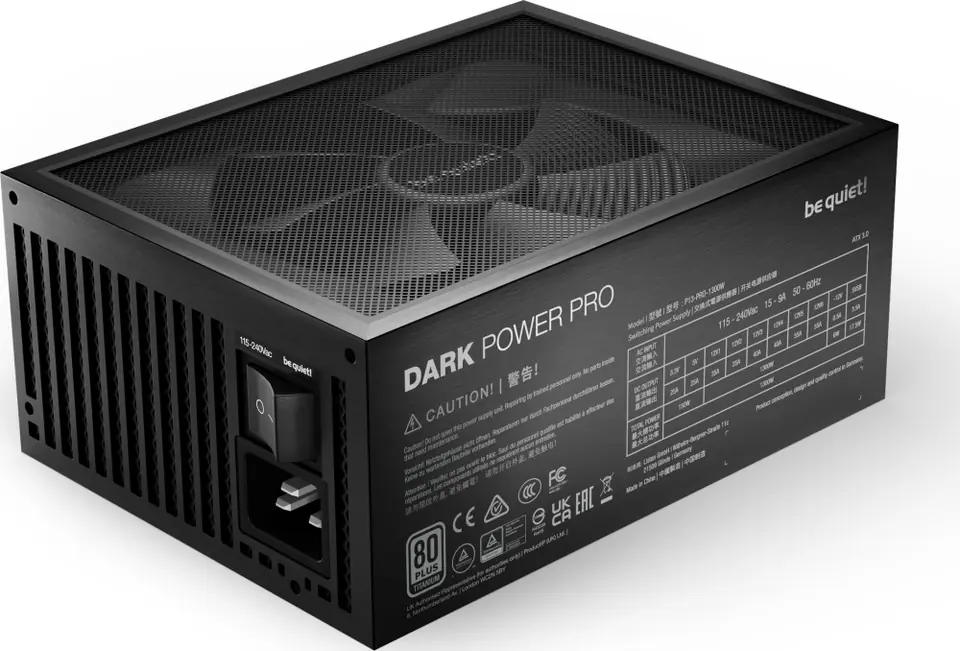

be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black

This product is not available
Availability:
expected delivery
Brand:
Be quiet!
Product code:
BN331 / 4260052189368

Specification

80 plus certification:80 PLUS Titanium
Ac input frequency:50 - 60 Hz
Ac input voltage:115 - 240 V
Atx power connector (20+4 pin):Yes
Atx version:3.0
Bearing technology:FDB
Cable tie(s) included:Yes

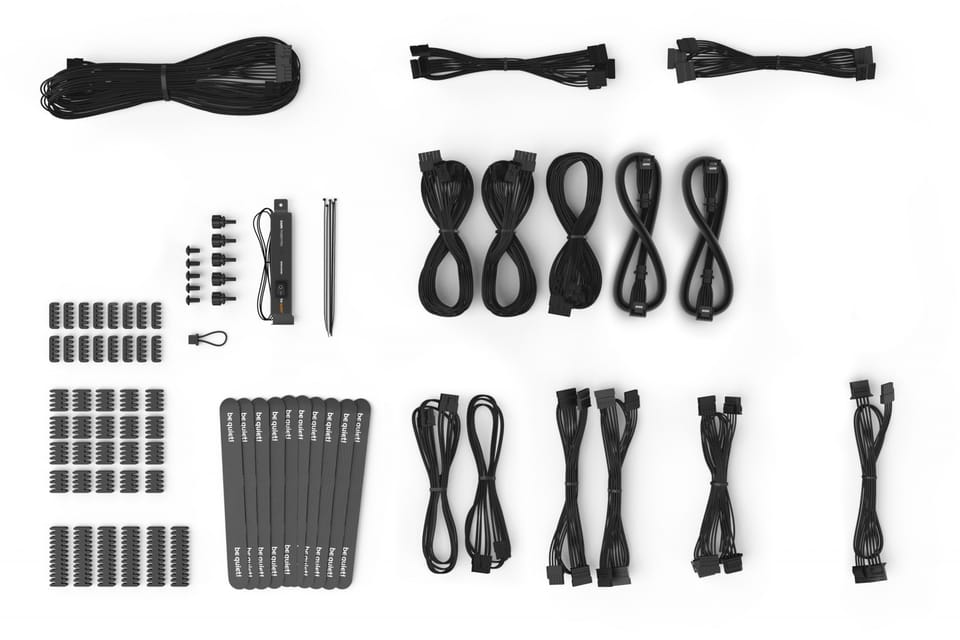

Cables included:CPU, PCIe, Peripheral (Molex), SATA

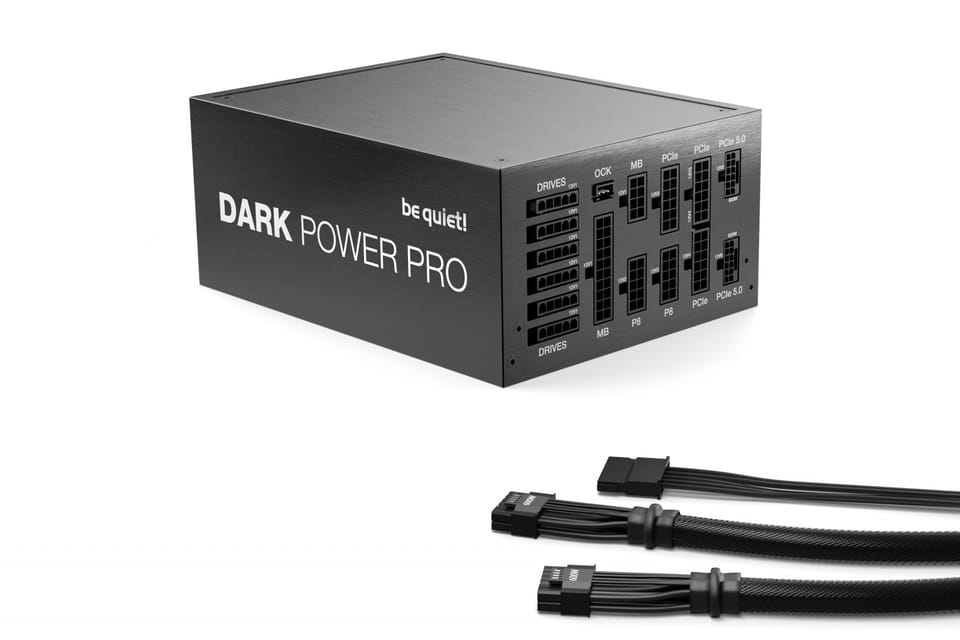

Cabling type:Fully-Modular
Combined power (-12v):6 W
Combined power (+12v):1300 W
Combined power (+3.3v):150 W
Combined power (+5v):150 W
Combined power (+5vsb):17.5 W
Cooling type:Active
Cpu power cable length:70 cm
Depth:200 mm
Efficiency:94.5%
Eps power connector (4+4 pin):Yes
Eps power connector (8-pin):Yes
Eps version:2.92

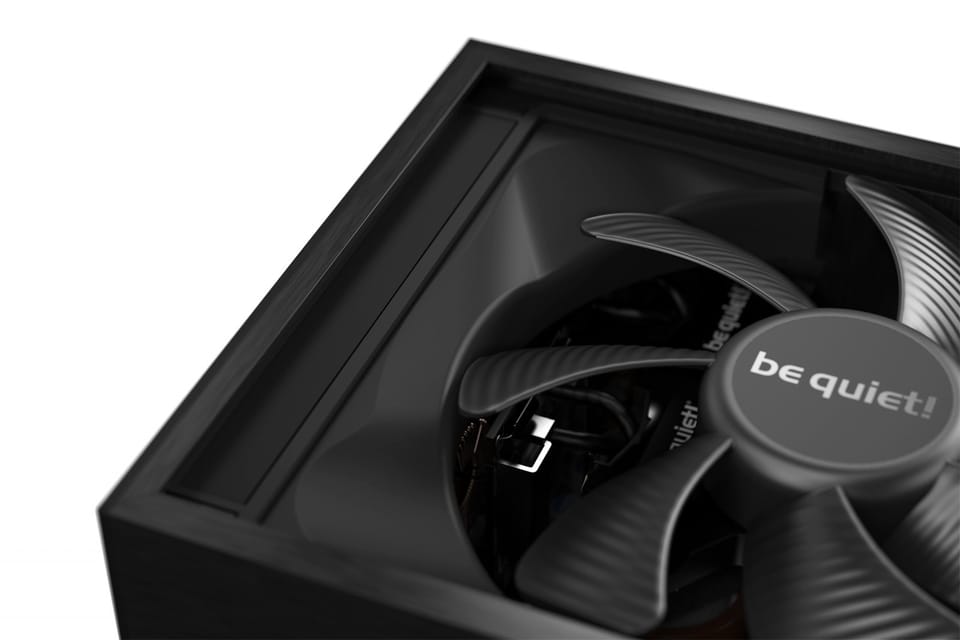

Fan diameter:13.5 cm
Height:86 mm
Hold time:18 ms
Input current:15 - 9 A
Max output current (-12v):0.5 A
Max output current (+12v1):35 A
Max output current (+12v2):35 A
Max output current (+12v3):40 A
Max output current (+12v4):40 A
Max output current (+3.3v):25 A
Max output current (+5v):25 A
Max output current (+5vsb):3.5 A
Mean time between failures (mtbf):100000 h
Motherboard power cable length:60 cm
Motherboard power connector:20+4 pin ATX
Noise level:23.2 dB
Number of fans:1 fan(s)
Number of pata power connectors:5
Number of sata power connectors:16
Package depth:417 mm
Package height:152 mm
Package weight:6.8 kg
Package width:253 mm
Pci express connector:Yes
Pci express power cable length:60 cm
Pci express power connectors (6+2 pin):6
Peak power:1400 W
Peripheral (molex) power cable length:750 mm, 1050 mm, 600 mm, 900 mm
Power factor:0.99
Power protection features:Overheating, Over power, Short circuit, Over voltage, Under voltage, Over current
Power supply unit (psu) form factor:ATX
Product colour:Black
Products per shipping (inner) case:2 pc(s)
Purpose:PC
Sata power cable length:750, 800, 500 mm, 1050 mm, 900 mm, 950, 600 mm
Shipping (inner) case height:28.3 cm
Shipping (inner) case length:44 cm
Shipping (inner) case net weight:14.4 kg
Shipping (inner) case width:32.5 cm
Sustainability certificates:Federal Communications Commission (FCC), UKCA, CE, CCC
Sustainability compliance:Yes
Total power:1300 W
Warranty period:10 year(s)
Weight:2.41 kg
Width:150 mm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
