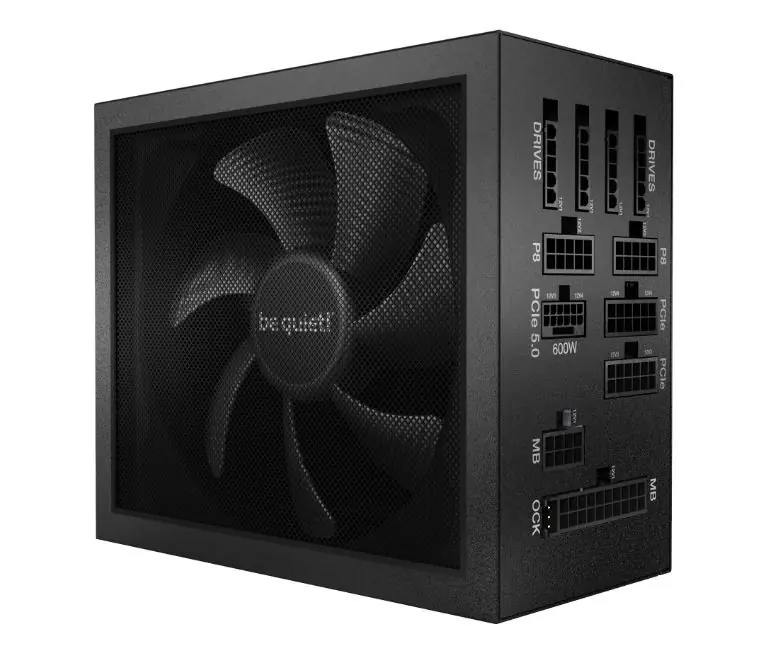

be quiet! Dark Power 13 power supply unit 1000 W 20+4 pin ATX ATX Black

€340.36
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Be quiet!
Product code:
BN335 / 4260052189405

Specification

80 plus certification:80 PLUS Titanium
Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Atx power connector (20+4 pin):Yes
Atx version:3.0
Bearing technology:FDB
Built-in display:No
Cable tie(s) included:Yes
Cables included:DC, SATA
Cabling type:Fully-Modular
Combined power (-12v):6 W
Combined power (+12v):996 W
Combined power (+3.3v):125 W
Combined power (+5v):125 W
Combined power (+5vsb):15 W
Cooling type:Active
Cpu p4 connector (4-pin):1
Cpu power connector (4+4 pin):Yes
Depth:86 mm
Ecc:Yes
Efficiency:93.3%
Eps version:2.92
Fan diameter:13.5 cm
Fan location:Top
Fan speed:0 - 1800 RPM
Floppy disk drive connector:No
Height:175 mm
Hold time:23.2 ms
Illumination:No
Input current:13/6 A
Led indicators:No
Max output current (-12v):0.5 A
Max output current (+12v1):32 A
Max output current (+12v2):32 A
Max output current (+12v3):40 A
Max output current (+12v4):40 A
Max output current (+3.3v):25 A
Max output current (+5vsb):3 A
Maximum input current (@110v):6 A
Maximum input current (@220v):13 A
Motherboard power cable length:60 cm
Motherboard power connector:20+4 pin ATX
Noise level:25.8 dB
Number of fans:1 fan(s)
Number of pata power connectors:3
Number of sata power connectors:13
Package depth:350 mm
Package height:270 mm
Package type:Box
Package weight:4.48 kg
Package width:120 mm
Pallet gross weight (air):19.3 kg
Pci express power connectors (6+2 pin):4
Peak power:1100 W
Peripheral (molex) power connectors (4-pin):1
Power factor:3
Power factor correction (pfc) type:Active
Power protection features:Under voltage, Over current, Overheating, Short circuit, Over voltage
Power supply unit (psu) form factor:ATX
Product colour:Black
Purpose:PC
Sata power cable length:1050 mm
Shipping (inner) case height:36.8 cm
Shipping (inner) case length:50.4 cm
Shipping (inner) case width:30.5 cm
Silent mode:Yes
Supported motherboard form factors:ATX
Sustainability certificates:RoHS, CE, CCC, WEEE, ENERGY STAR, ErP
Total power:1000 W
Warranty period:10 year(s)
Waste electrical and electronic equipment (weee) compliance:Yes
Weight:2.03 kg
Width:150 mm

DARK POWER 13

SILENCE AND EFFICIENCY WITHOUT COMPROMISE

Dark Power 13 is the most efficient power supply series that be quiet! ever designed. It is characterized by unmatched efficiency, up to 95.8%, which is confirmed by the 80 PLUS Titanium certificate. This makes the Dark Power 13 series a benchmark of performance. In addition to unparalleled efficiency, the patented Silent Wings frameless fan concept guarantees an optimized cooling effect and virtually inaudible operation. The overclocking key allows you to manually switch between multiple 12V lines mode and one strong line mode. Dark Power 13 compatibility with ATX 3.0 and compatibility with PCIe 5.0 and PCIe 4.0 graphics cards underscores that this is a high-end power supply of choice for all advanced users with next-generation graphics cards or planning to upgrade. All these features make the new Dark Power 13 be quiet!'s most advanced power supply.

SILENCE AND EFFICIENCY WITHOUT COMPROMISE

be quiet! The Dark Power 13 1000W offers 80 PLUS Titanium efficiency, virtually inaudible operation and ATX 3.0 compatibility for full compatibility with next generation GPUs.

  • Efficiency 80 PLUS Titanium (up to 95.2%)
  • ATX 3.0 power supply with full support for PCIe 5.0 graphics cards and PCIe 6+2 connectors
  • Virtually inaudible operation thanks to the patented frameless Silent Wings fan
  • Full mesh front of the PSU and redesigned funnel-shaped air intake
  • The overclocking key switches between four 12V lines and one strong line
  • Modular cabling system for maximum convenience
  • Active rectifier and LLC full bridge technology
  • 10-year manufacturer's warrantyCERTIFICATE 80 PLUS TITANIUM

The highest performance certification available

Dark Power 13 1000W is certified 80 PLUS Titanium and has an energy efficiency of up to 95.2%. This provides many benefits to your high-end setup, including lower power consumption and cooler, quieter operation. Standby power consumption is less than 0.1 watts.

FUTURE-READY CONFIGURATION. Meets the requirements of the ATX 3.0 specification.

The Dark Power 13 1000W is an ATX 3.0 PSU with native 12VHPWR connector integration for next-gen PCIe 5.0 graphics cards and PCIe 6+2-pin connectors to support legacy current generation GPUs. The power supply is extremely versatile and an excellent choice for current and future high-end setups.

THE NEW STANDARD OF POWER. For massive transient loads.

Dark Power 13 1000W of continuous power with 4 independent 12V rails. Even if your graphics card requires excessive power for a short time: Dark Power 13 1000W easily handles power spikes up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards.

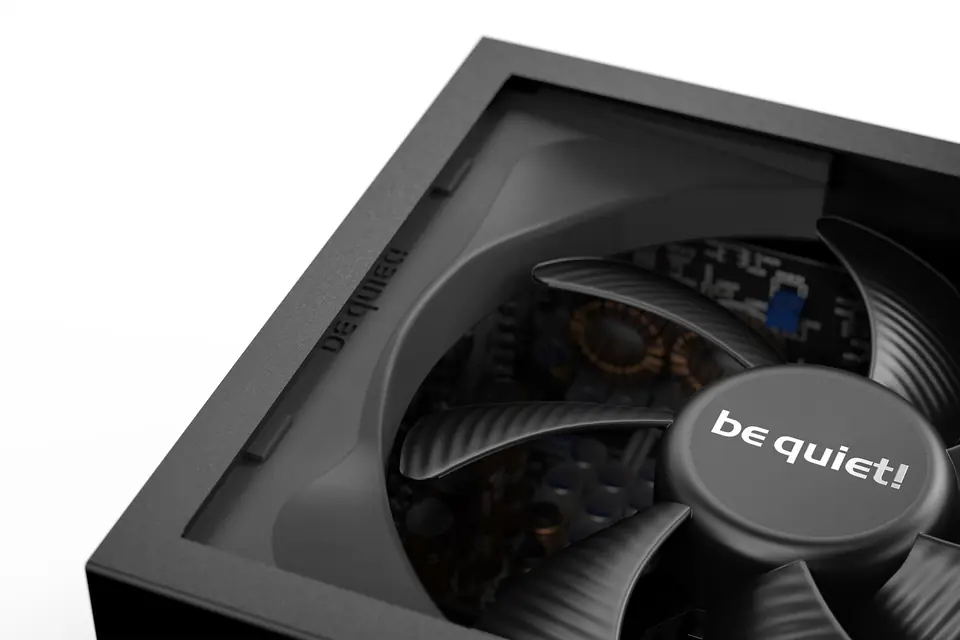

FRAMELESS SILENT WINGS FAN. Patented fan technology for virtually inaudible operation.

be quiet! fan Silent Wings mounted on a stand provide maximum airflow and virtually inaudible operation. This is thanks to the unique design of the fan blades optimized for airflow, as well as the advanced dynamic bearing and 6-pole fan motor, resulting in less vibration, extremely long life and minimal power consumption.

INNOVATIVE COOLING CONCEPT. For a longer service life.

The fan inlet on the Dark Power 13 1000W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-less design inside allows cool air to reach all components flawlessly, ultimately leading to a longer lifespan.

READY FOR OVERCLOCKING. Maximizing the efficiency of the power supply.

Dark Power 13 1000W is perfect for overclocking thanks to its strong and stable 12V rails. The overclocking key gives you full overclocking control by manually switching between the default four 12V lane mode and the alternate 12V single lane mode.

WORLD-CLASS TOPOLOGY. State-of-the-art technology for exceptionally high energy efficiency.

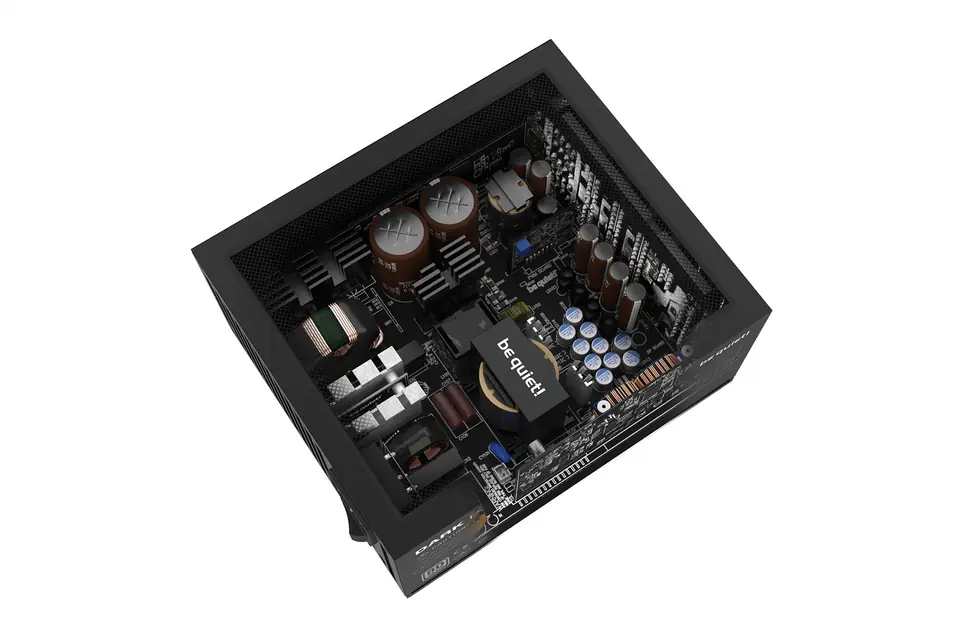

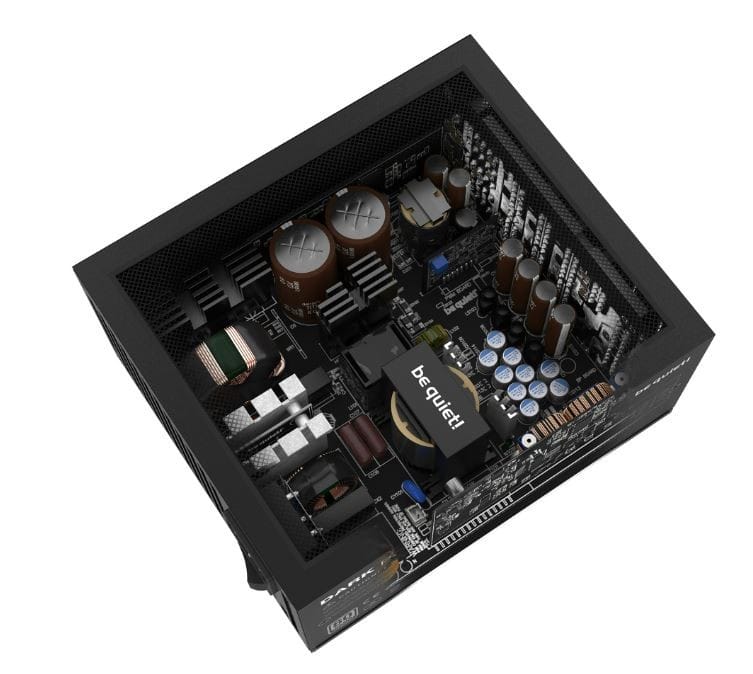

With an active rectifier and LLC full bridge technology, the Dark Power 13 1000W offers some of the most advanced technology available, resulting in higher efficiency, better regulation and lower ripple noise for incomparably stable operation.

JAPANESE 105° CAPACITORS. High quality certificate.

Only the best components are used in the Dark Power 13 1000W. That's why we used only high-quality Japanese capacitors in the power supply housing. They are adapted to the temperature of 105 ° C, which ensures stability, reliability and long life.

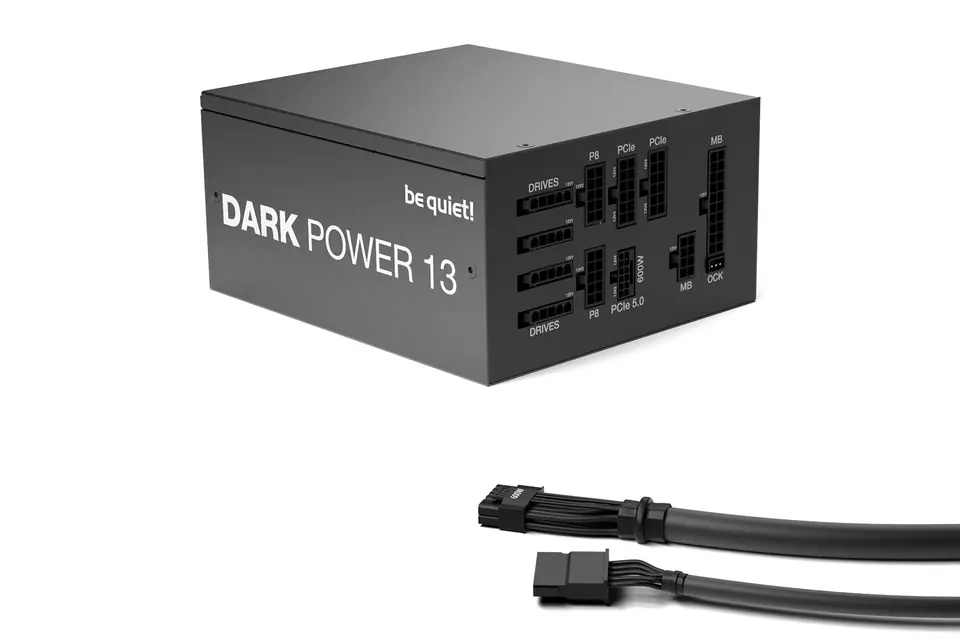

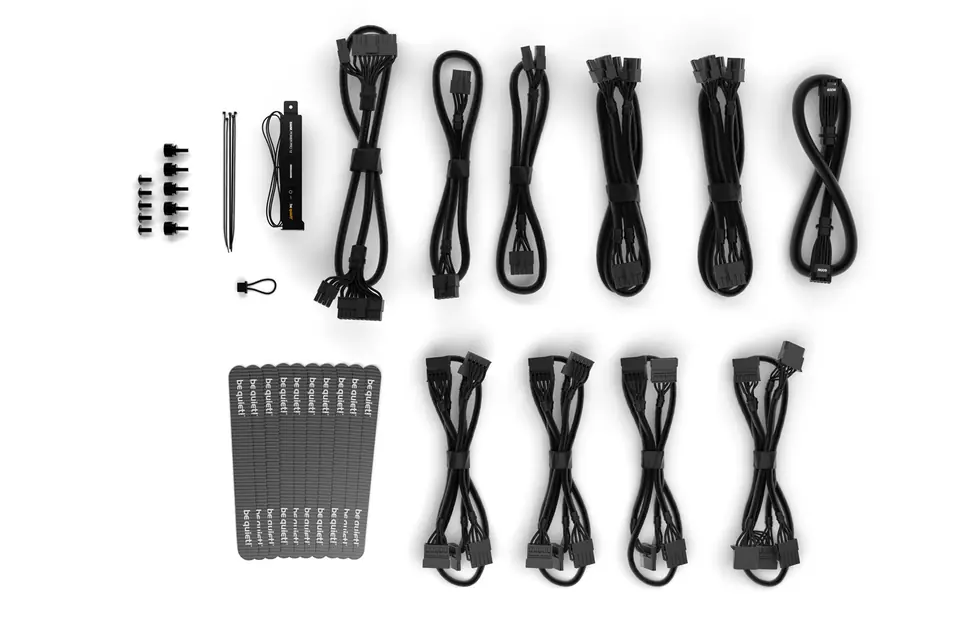

ULTIMATE CONVENIENCE AND BEST CONNECTIVITY. Modular cables.

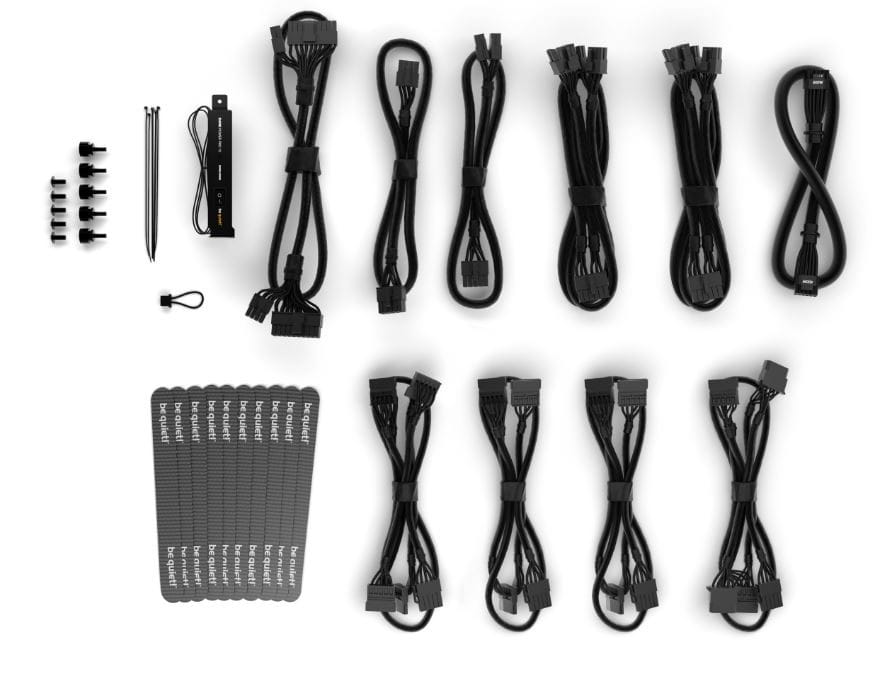

Component installation is simplified with modular braided cables up to 120cm long. This results in increased airflow and even better cooling in the largest PC cases.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
