be quiet! BN337 power supply unit 850 W 20+4 pin ATX ATX Black

Name: be quiet! BN337 power supply unit 850 W 20+4 pin ATX ATX Black
Brand: Be quiet!
SKU: 1551478
Price: 216.63 EUR
Availability: InStock

€216.63

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Be quiet!
Product code:: BN337 / 4260052189429

Specification

80 plus certification:	80 PLUS Platinum
Ac input frequency:	50/60 Hz
Ac input voltage:	100 - 240 V
Atx version:	3.0
Bearing technology:	FDB
Cable tie(s) included:	Yes
Cables included:	CPU, SATA
Cabling type:	Fully-Modular
Combined power (+12v):	849.6 W
Combined power (+3.3v):	150 W
Combined power (+5v):	150 W
Cooling type:	Active
Cpu power cable length:	70 cm
Depth:	160 mm
Efficiency:	92.3%
Eps power connector (4+4 pin):	Yes
Eps power connector (8-pin):	Yes
Eps version:	2.92
Fan diameter:	13.5 cm
Fan speed:	0 - 2100 RPM
Height:	86 mm
Hold time:	19.2 ms
Input current:	10/5 A
Max output current (-12v):	0.5 A
Max output current (+12v1):	70.8 A
Max output current (+3.3v):	25 A
Max output current (+5v):	25 A
Max output current (+5vsb):	3 A
Mean time between failures (mtbf):	100000 h
Motherboard power cable length:	60 cm
Motherboard power connector:	20+4 pin ATX
Noise level:	22.1 dB
Number of fans:	1 fan(s)
Number of pata power connectors:	2
Number of sata power connectors:	9
On/off switch:	Yes
Operating temperature (t-t):	0 - 40 °C
Package depth:	328 mm
Package height:	102 mm
Package type:	Box
Package weight:	3.52 kg
Package width:	248 mm
Pci express power cable length:	60 cm
Pci express power connectors (16-pin):	1
Pci express power connectors (6+2 pin):	4
Peak power:	920 W
Peripheral (molex) power cable length:	850 mm, 1000
Power factor:	0.99
Power protection features:	Overheating, Over power, Short circuit, Over voltage, Under voltage, Over current
Power supply unit (psu) form factor:	ATX
Product colour:	Black
Products per shipping (inner) case:	6 pc(s)
Purpose:	PC
Sata power cable length:	550, 850, 1000 mm, 700 mm
Shipping (inner) case height:	34.6 cm
Shipping (inner) case length:	65.1 cm
Shipping (inner) case net weight:	22.7 kg
Shipping (inner) case width:	28.2 cm
Supported motherboard form factors:	ATX, micro ATX, Mini-ATX
Sustainability certificates:	CE, Triman, RoHS, Federal Communications Commission (FCC), ENERGY STAR, ErP, UKCA, WEEE
Sustainability compliance:	Yes
Total power:	850 W
Warranty period:	10 year(s)
Weight:	1.81 kg
Width:	150 mm

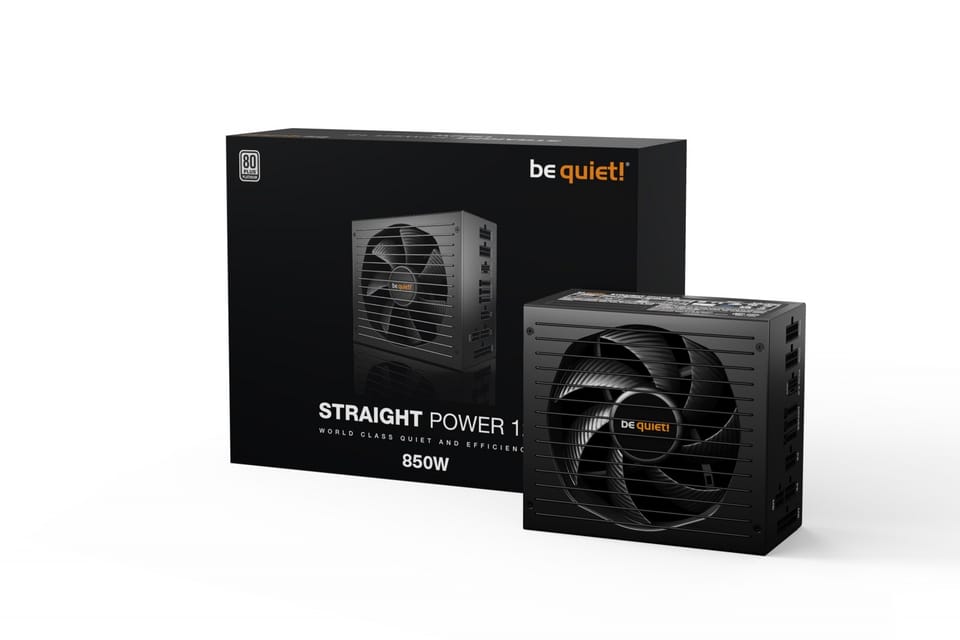

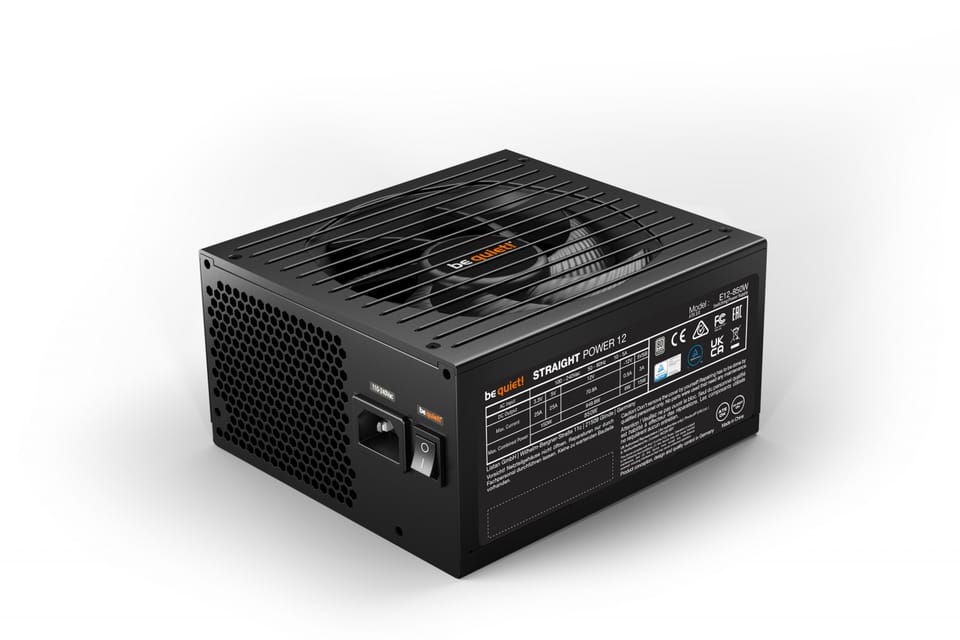

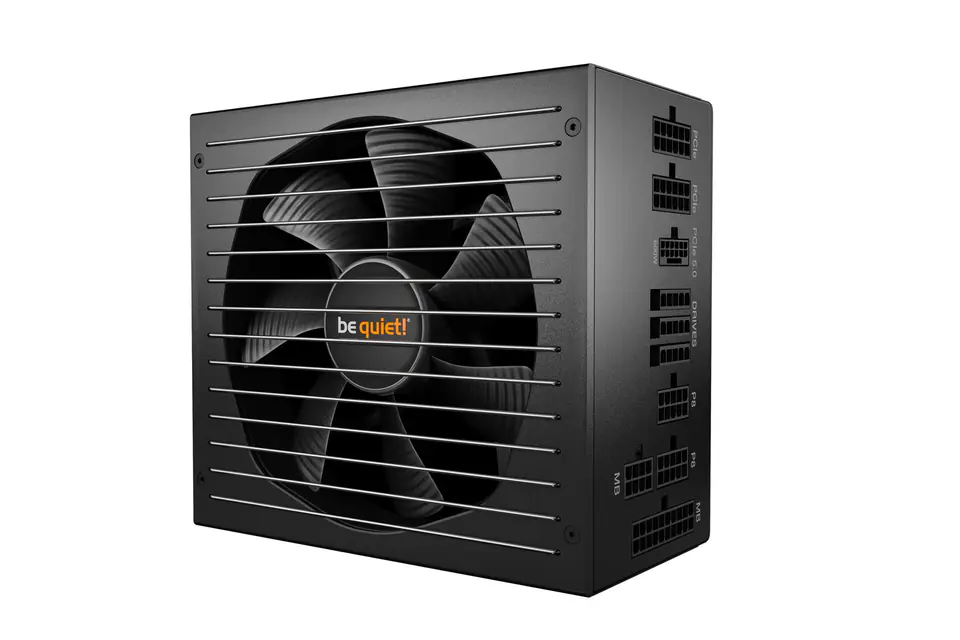

Straight Power 12 850W Platinum ATX 3.0 Power Supply

Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS Platinum certification and virtually inaudible operation.
80 PLUS Platinum efficiency (up to 93.8%)
ATX 3.0 power supply with full support of PCIe 5.0 and graphics cards with 6+2 pin connectors
Supports huge power surges

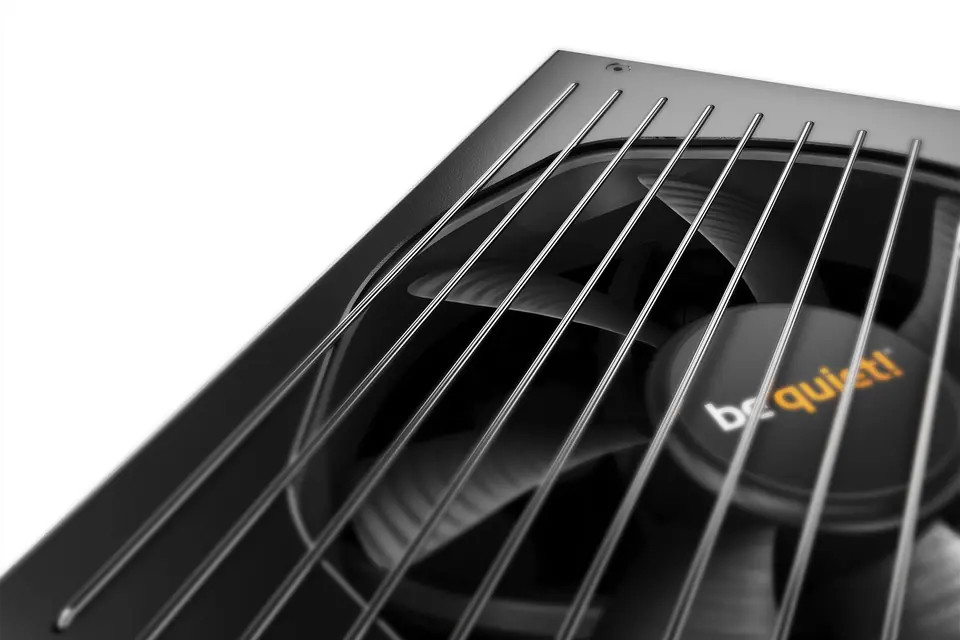

Practically inaudible Silent Wings 135 mm fan
Funnel-shaped air intake for maximum airflow

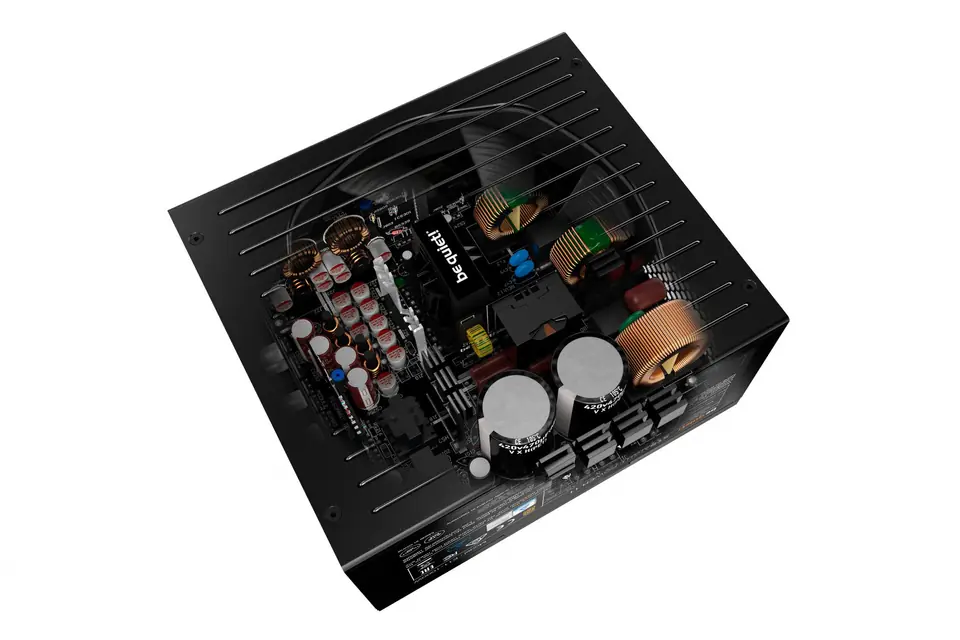

Full LLC bridge technology for unmatched signal stability
One massive, high-performance 12V line
Japanese 105°C capacitors for ultimate stability and reliability

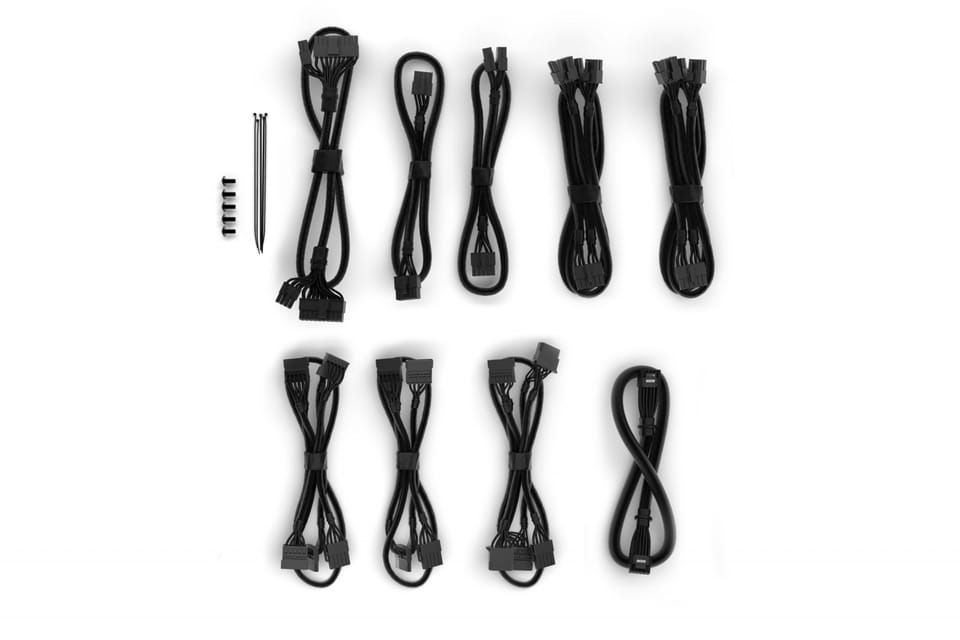

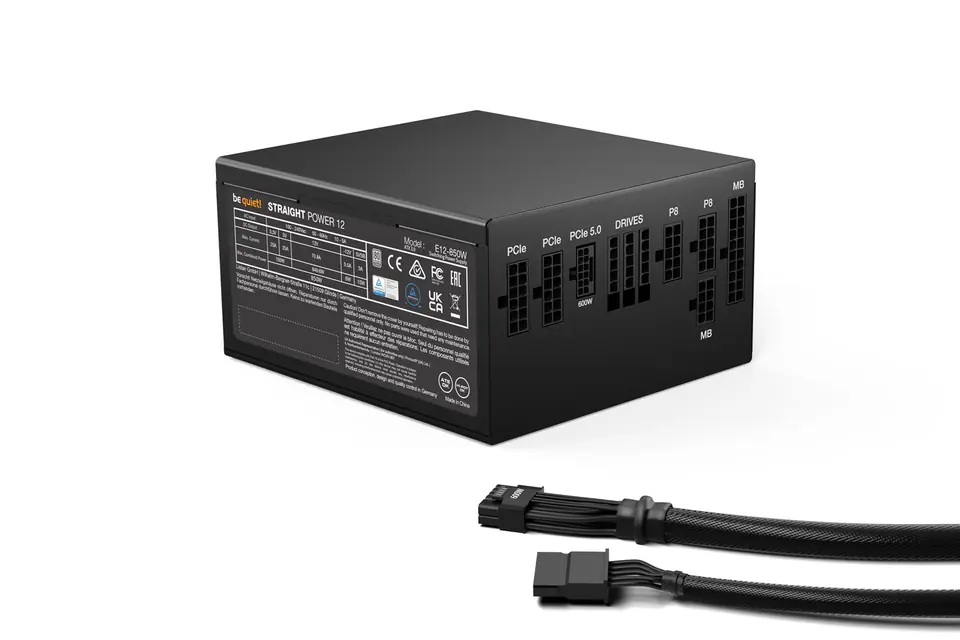

Modular cable management for maximum convenience
10-year manufacturer's warranty
