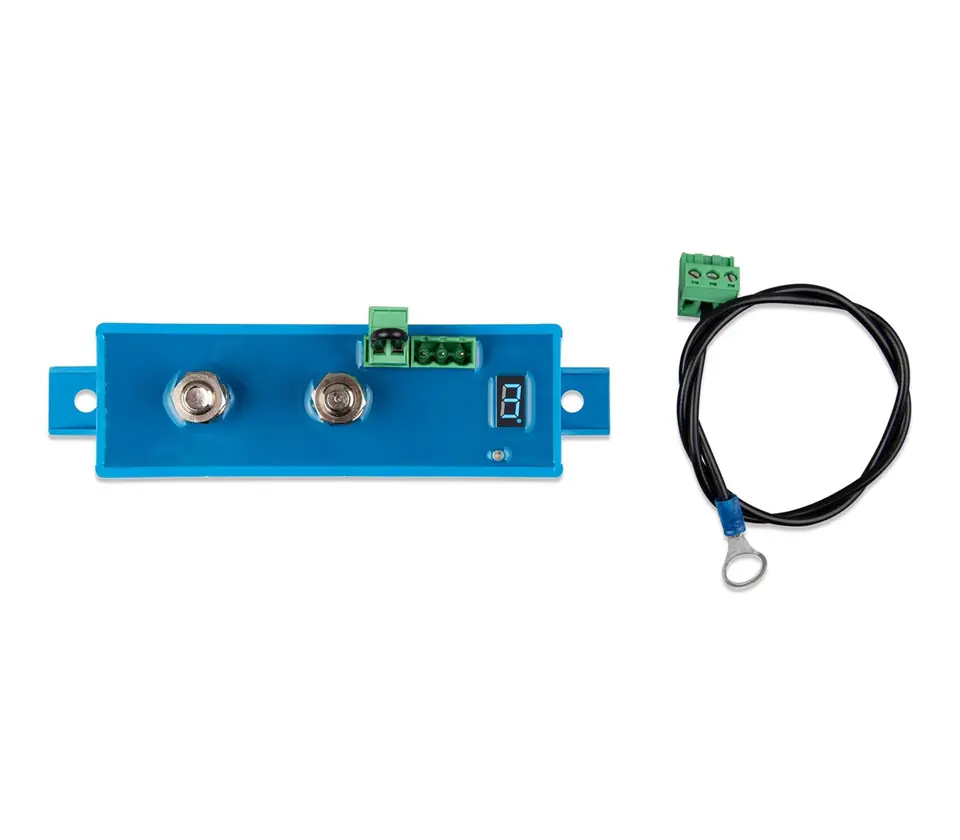

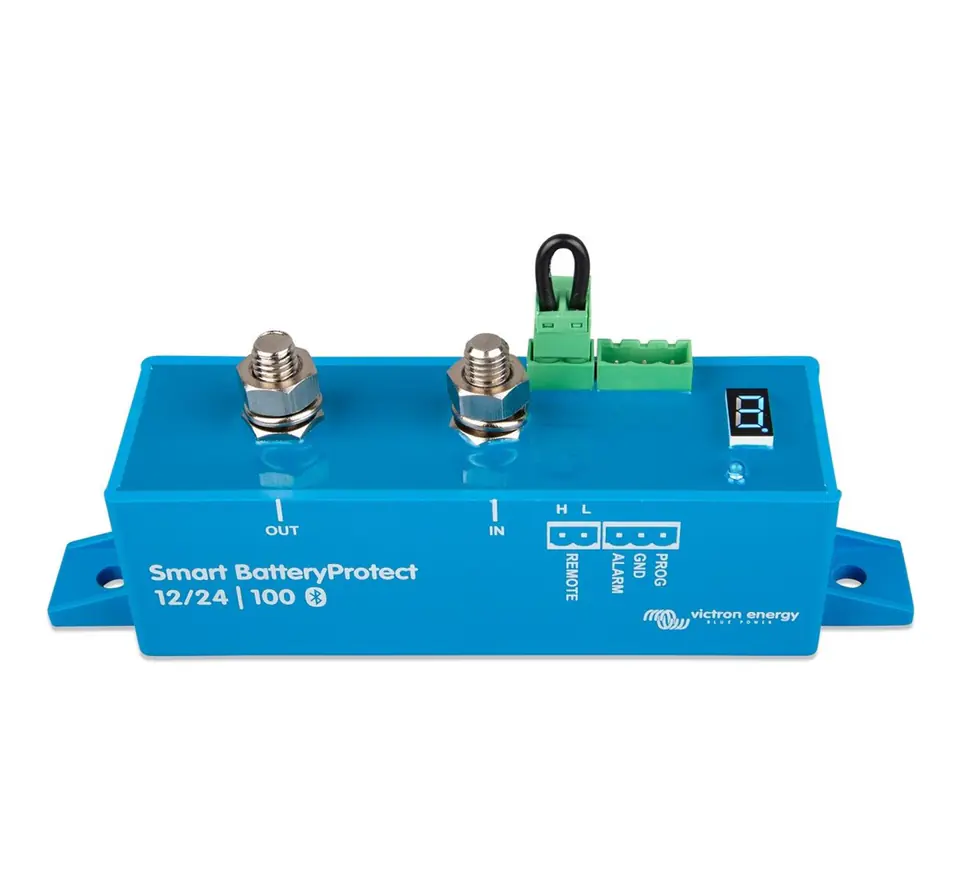

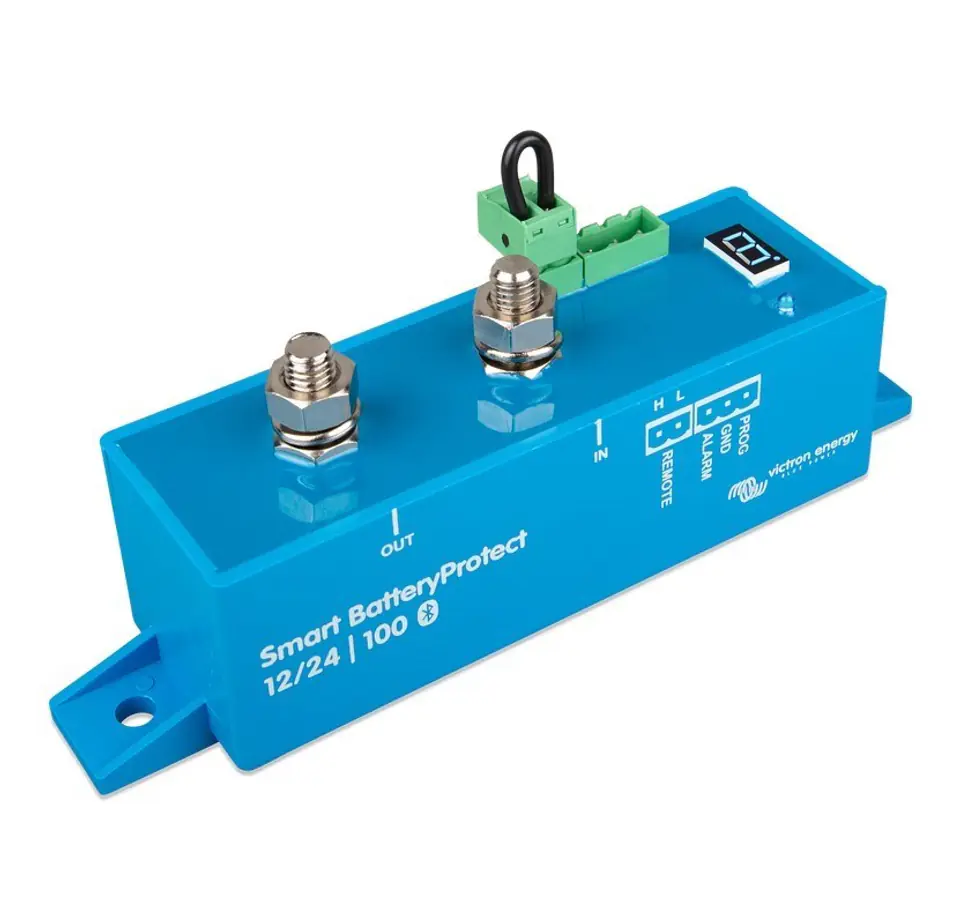

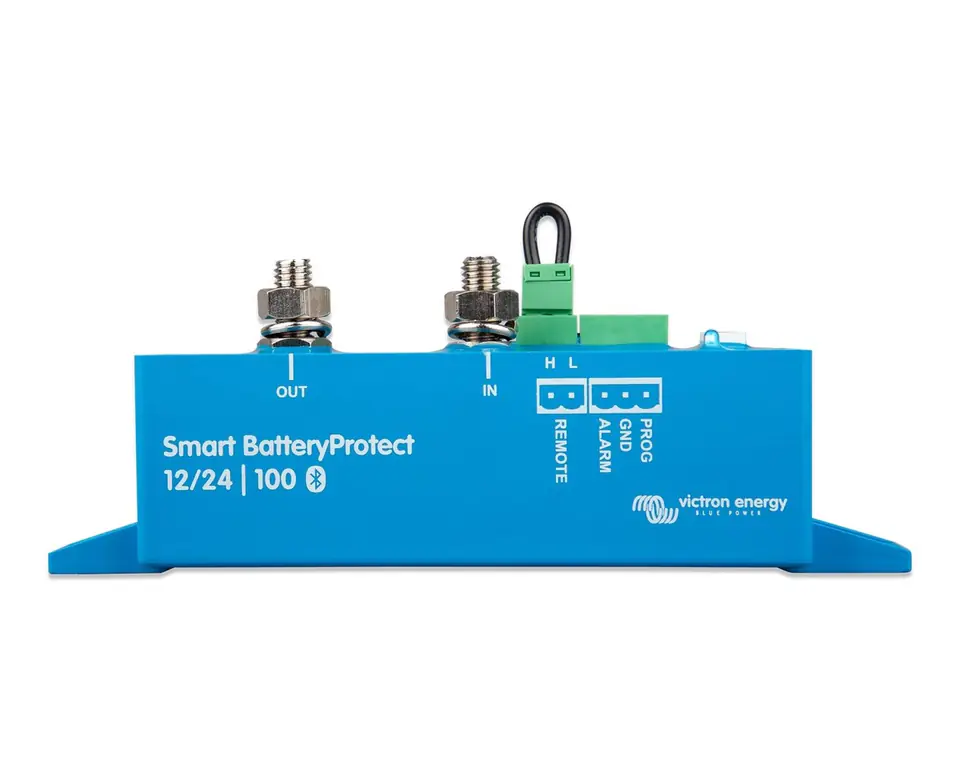

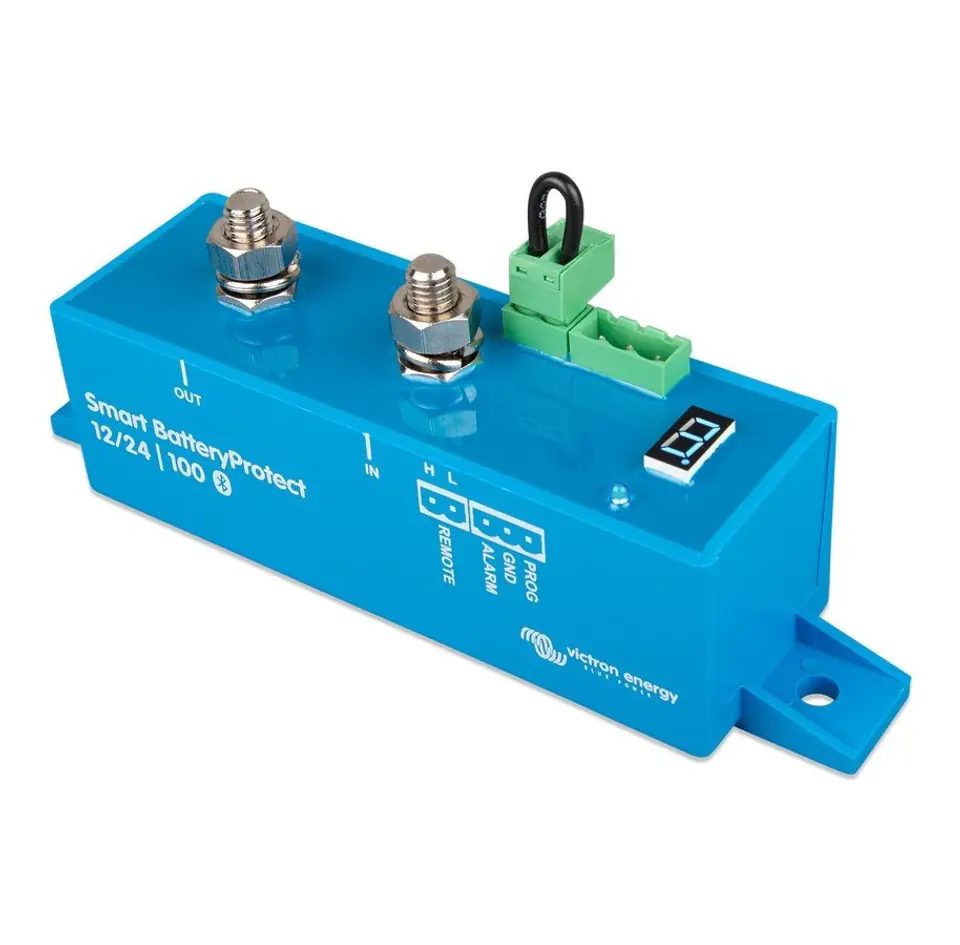

Battery disconnector VICTRON ENERGY Smart Battery Protect 12/24V 100A (BPR110022000)
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- BPR110022000 / 8719076041245
Share this product:
Specification
| Alarm input/output: | Yes |
|---|---|
| Automatic on/off switch: | Yes |
| Automatic voltage detection: | Yes |
| Bluetooth low energy (ble): | Yes |
| Built-in display: | Yes |
| Cables included: | Connector with preassembled DC minus cable |
| Compatible with: | Lynx DC |
| Dc battery voltage: | 12 / 24 V |
| Dedicated application: | VictronConnect |
| Depth: | 164 mm |
| Discharge protection: | Yes |
| Height: | 61 mm |
| International protection (ip) code: | IP67 |
| Led indicators: | Yes |
| Maximum continuous load current: | 100 A |
| Maximum current: | 600 A |
| Mounting type: | M8 |
| Number of ve.bus ports: | 1 |
| One-way communication: | Yes |
| Operating voltage range: | 6 - 35 V |
| Overvoltage protection: | Y |
| Product colour: | Blue |
| Product type: | Battery protector |
| Quantity: | 1 |
| Setting of on/off levels: | 9 predefined levels |
| Spark protection: | Yes |
| Suitable for: | Photovoltaic system |
| Switching on and off delay at set voltage: | 30 seconds |
| Torque (max): | 9 Nm |
| Voltage monitoring: | Yes |
| Weight: | 500 g |
| Width: | 41 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
