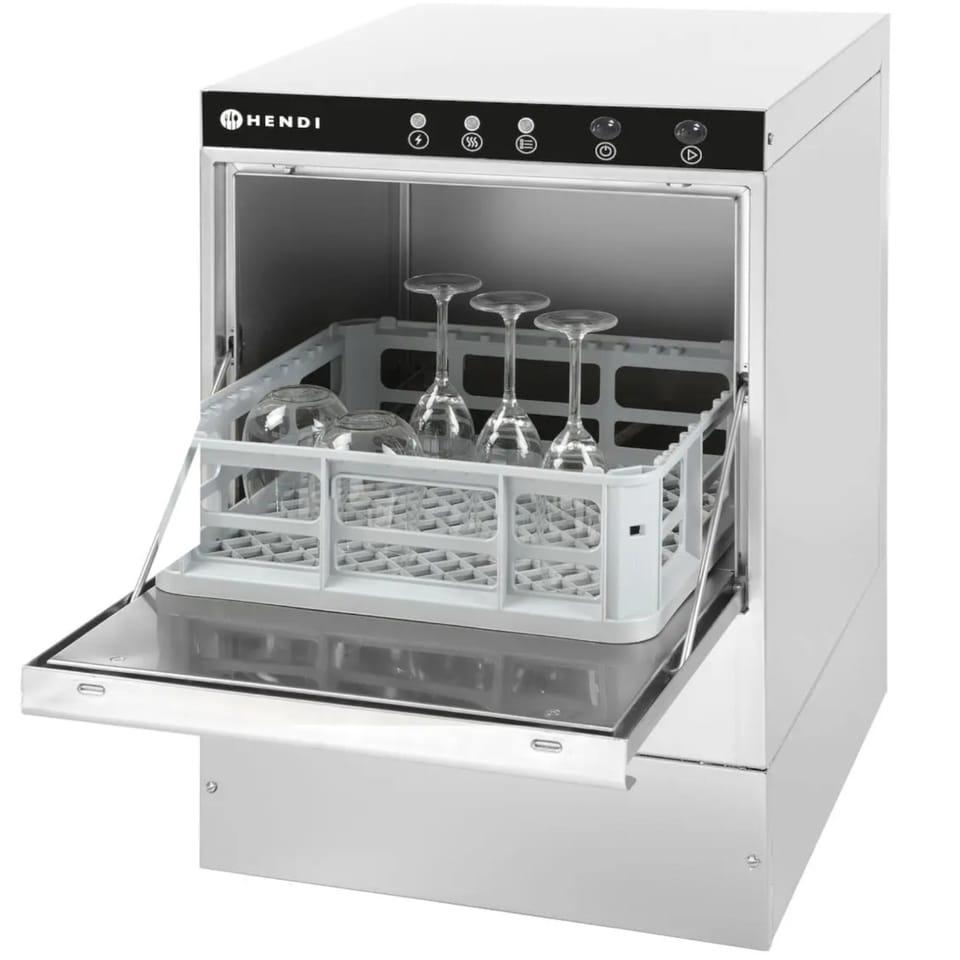

Manufacturer name: Hendi 233016
The economical Hendi glass bar dishwasher is a device designed for cafes, restaurants, hotels and other professional establishments and catering establishments. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, clean and service.
Features and functions:
- - up to 30 baskets per hour,
- - electromechanical control,
- - AISI 304 stainless steel housing,
- - separate washing and rinsing arms made of stainless steel,
- - solid two-layer doors,
- - washing cycle of 120 seconds,
- - extended set,
- - rinse aid dispenser,
- - adapted for mounting a detergent dispenser (screw in the back of the bath),
- - drain pump,
- - electrical cable without plug,
- - vertically adjustable legs with a diameter of Ø40 mm (± 10 mm).
- - Voltage - 230 V
- - Power - 2800 W
- - Housing material - Stainless steel (AISI 304)
- - Material of washing arms - Stainless steel
- - Length of 1 washing cycle - 120 s
- - Capacity - 30 baskets per hour
- - Water consumption (1 cycle) - 2-2.5 l (depending on water pressure)
- - Washing water temperature - 62 ° C
- - Rinse water temperature - 85 ° C
- - Boiler (capacity / power) - 3,5 l / 2,5 kW
- - Bath (capacity / power) - 17 l / 2,5 kW
- - Pump power - 0,1 HP
- - Safety thermostat (boiler) - 105 ° C
- - Safety thermostat (bathtubs) - 99 ° C
- - Pump tightness coefficient - IP 44
- -Max. basket dimensions - 400 x 400 x 290 mm
- - Dimensions (LxWxH) - 470 x 510 (325) x 710 mm
- - Weight - 39 kg
- - bar dishwasher for glass glasses quick and economical basket 40x40cm 230V,
- - drain pump,
- - universal basket for glass 400 x 400 x 150 mm (1 pc)
- - basket with pin for plates 400 x 400 x 110 mm (1 pc)
- - cutlery basket 110 x 110 x 130 mm (1 pcs)
- - water supply hose (length 1.5 m) with 3/4" internal thread connection,
- - drain hose (length 2 m) with a diameter of Ø25 mm,
- - electrical cable without plug,
- - rinse aid dispenser,
- - adapted for mounting a detergent dispenser (screw in the back of the bath),
- - adjustable (vertically) feet ± 10 mm (Ø40 mm).
